Description

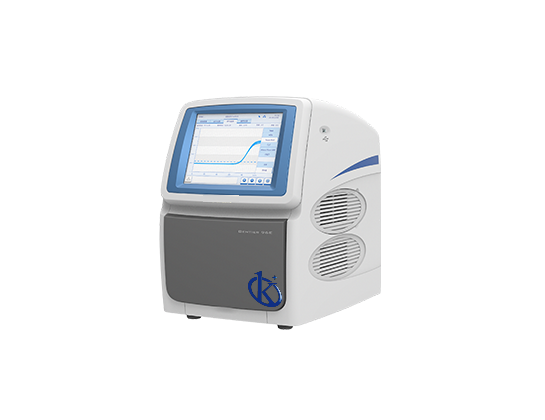

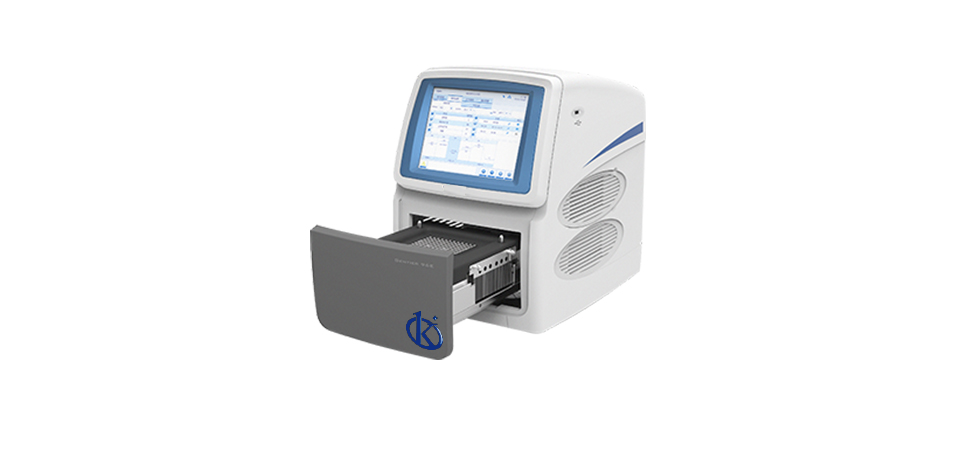

The YR01869 real-time PCR system is a PCR assay machine designed to meet the specific needs of high-end laboratories. With five fluorescence channels, it is capable of processing 96 samples in a single test. Enjoy its powerful and efficient temperature control system, user-friendly software and user-friendly operating designs. The real-time PCR system can provide maximum reliability and efficiency for all your real-time PCR needs.
Feature
96 samples to scan in 7s:
Only 7s for all 96-well fluorescence scanning can significantly reduce testing time and improve efficiency for laboratory professionals.
Efficient temperature control:
Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.
Power failure protection design:
Power failure protection design can recover the experiment automatically, no worry about instantaneous power failure.
More convenient with two configurations Independent configuration.
PC control configuration:
With 10.4-inch touch screen
PControl of PC software via connection.
Powerful analysis software:
Gentier 96 E/R offers various data analysis functions, including absolute quantitative analysis, relative quantitative analysis, SNP analysis, melting curve analysis, etc.
Technical Specifications
Model | YR01869 |
Throughput | ene-96 |
Fluorescence Channels | 6 |
Fluorescence Scanning Time | 7s |
Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green |
Channel 2: HEX, VIC, TET, JOE | |
Channel 3: ROX, Texas Red | |
Channel 4: Cy5 | |
Channel 5: Alexa Fluor 680 | |
Channel 6: FRET | |
Optical System | |
Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
Detector | Photodiodes (PDs), top scanning |
Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
Fluorescence Dynamic Range | Adjustable |
Sample Dynamic Range | From 101 to 1010copies |
Thermal Black | |
Heating Method | Peltier |
Heating Rate | >6.1 ℃/s |
Cooling Rate | >5.0 ℃/s |
Temperature Uniformity | ±0.1 ℃ |
Temperature Accuracy | ≤0.1 ℃ |
Gradient Range | 1℃-40 ℃ |
Gradient Block | 12 row |
Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 |
Repeatability: cycle threshold (Ct) value CV≤0 0.5% | |
Software Functions | |
Control Modes | Model 1: 10.4 inch touch screen |
Mode 2: PC direct control | |
Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
Reporting Function | Templates reserved; customized experiment report |
Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
Others | |
Operating System for PC | Win7/Win10/Win11 |
Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
Weight | 30 Kg (net) |
Instrument Dimension | 555*475*484mm (W*L*H) |
Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
