Description

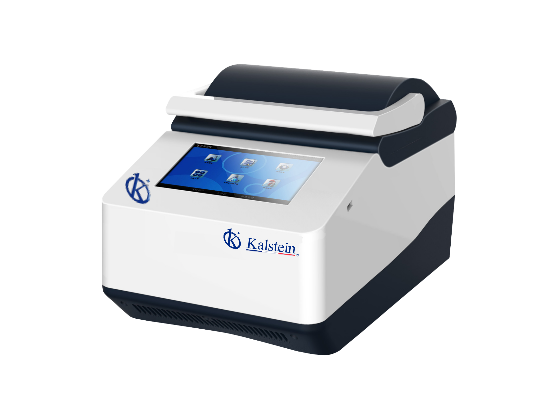

The YR06070 PCR thermal cycler is easy to operate thanks to its 7-inch color LCD touch screen. Taking advantage of its excellent thermal block, it offers you homogeneous and accurate temperatures, fast and precisely controlled ramp rates, and fast and reproducible PCR cycles. In addition, programming is remarkably simple and intuitive. Thanks to all these advantages, it is your ideal PCR instrument.
Product Features
7-inch touch screen operation:
With the 7-inch LCD touch screen, it can be operated quickly by simple one-touch commands. Compact design that takes up little space and is easy to move.
Temperature gradient control:
Block features remarkable gradient technology to ensure ramp rates are identical in both gradient and normal modes. The performance-optimized assay traverses a maximum range of 40℃ through 12 gradients.
Intuitive software design:
The software’s intuitive design and user-friendly interface make it easy even for first-time users. No specialized training is required.
Flexibility to share experiment protocols:
1000 experiment protocols can be saved. Protocols can also be easily shared between different ones via USB hard disk. Personal protocols can be saved on your USB flash drive to quickly set up your own experiment on any YR06070.
Power failure protection design:
The unique power-off protection function can save all set configurations after power off, and allow the experiment to continue when power on.
Technical Specifications
Model | YR06070 |
Reaction volume | 0-100μL |
Thermo block | Aluminum |
Compatible Consumables | 0.2mL single tube, 0.2mL 8 strip tubes, 0.2mL 96-well plate(skirted, semi-skirted, unskirted) |
Temperature control range of the block | 4℃-99℃ |
Temperature control mode | Tube mode & Block mode |
Heating technology of the block | Peltier |
Gradient block | 12 row |
Gradient temperature span | 1℃-40℃ |
Gradient temperature range | 30℃-99.9℃ |
Lid temperature range | 40-110℃ |
Temperature uniformity | ±0.2℃ |
Block temperature accuracy | ±0.1℃ |
Heating rate | ≥ 3.5℃/s |
Cooling rate | ≥2.5℃/s |
Interfaces | USB, Ethernet |
Dimensions(W*D*H) | 260mm*400mm*260mm |
Weight | 11Kg |
Power supply | AC 100-240V, 50-60Hz |
Max. Power consumption | 600VA |
Running noise | <55dB |
