Description

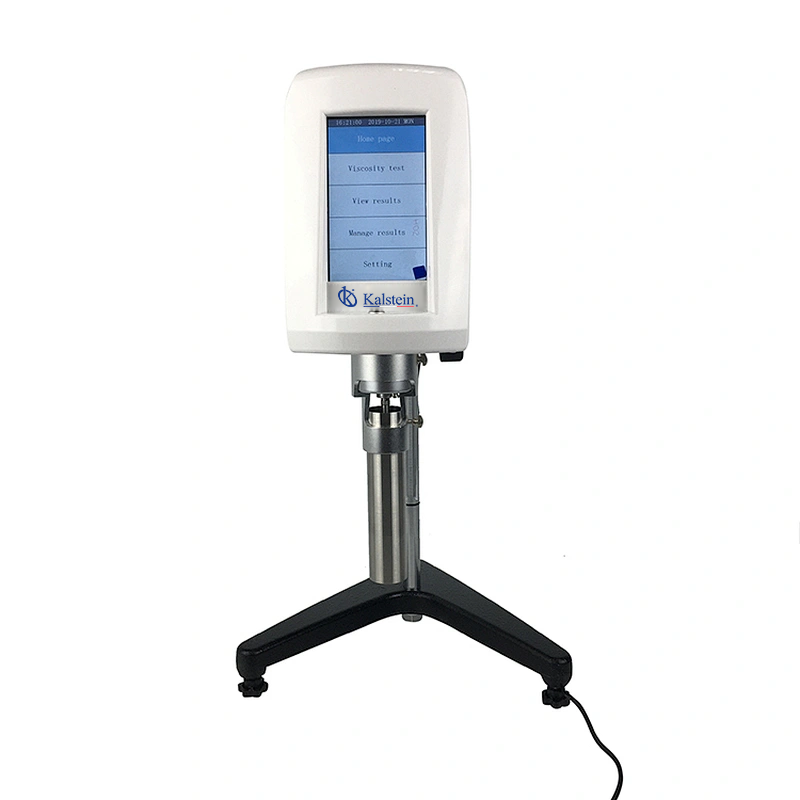

The Touch Screen Brookfield Viscometer YR05858 – YR05859 offers a perfect blend of advanced touch-screen technology, providing fast, precise, and hassle-free viscosity measurement. This innovative device includes a 5-inch color touch screen that vividly displays a comprehensive array of parameters and working conditions. Some of its advantages are its detailed measuring parameters, rich display content, ease of operation, high accuracy, stable rotational speed, and robust anti-interference performance. It is an ideal choice for industries dealing with high viscosity materials such as paints, cosmetics, inks, food, and biochemical products.
Price in the Market
In the current market, high-quality viscometers like the Touch Screen Brookfield Viscometer YR05858 – YR05859 generally fall in the price range of $4,000 to $5,200 USD. While price varies based on the vendor and additional features, this range provides a solid expectation for potential buyers. For a precise quote and to explore customization options, we invite you to request an automatic quote through the Kalstein Plus platform.
Frequently Asked Questions
What industries benefit from this viscometer? This viscometer is widely used in industries such as paints, cosmetics, food, and biochemical products, where precise viscosity measurement is crucial.
Can it handle high viscosity measurements? Yes, it is designed to measure super high viscosity samples efficiently with a range extending to 6,000,000 mPa.s.
Advantages and Disadvantages
This viscometer is known for its precise measurements, user-friendly interface, and advanced ARM technology with a built-in Linux system. However, its primary disadvantage could be the learning curve associated with the new touch-screen interface for users accustomed to traditional models.
Usage in the Field
In practical applications, this viscometer allows operators in labs to quickly measure the viscosity of samples like latex or starch by setting up detailed test programs via its intuitive controls. This makes it indispensable for quality control in production lines.
Recommendations
For optimal performance, it is recommended to regularly calibrate the device using the standard calibrate silicone oil and maintain the equipment in a stable environment, free from temperature fluctuations and external vibrations.
Features
- ARM technology with built-in Linux system for easy operation.
- Automatic calibration for error minimization.
- Comprehensive display with visual indicators for multiple parameters.
- Real-time data display and printing capabilities.
- Intuitive level adjustments and highly accurate temperature probe option.
Technical Specifications
| Model | YR05858 | YR05859 |
| Speed(r/min) | 0.3–100 infinitely variable speed, a total of 998 speed options | |
| Measuring Range | Rotor 1-4: 10-2000000 mPa.s ULR: 1-1000 Rotor 18: 3 – 10000 Rotor 25: 480 – 1.60000000 Rotor 31: 30 – 100000 Rotor 34: 20 – 200000 |
Rotor 1-4: 10–6,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 – 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 – 300,000 Rotor 34: 30 – 600,000 |
| Rotor | L1 – L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional)） |
|
| Sample Dosage | Rotor 1-4: 300 – 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml(K = 1000; M = 1000000) |
|
| Measurement Error | ±1% (Newtonian liquid) | |
| Repetitive Error | ±0.5% (Newtonian liquid) | |
| Data output Interface | RS232*2pcs, temperature probe interface*1pc | |
| Power | 110V ~240V , 50Hz / 60Hz | |
| Dimension | 350 *350 *450mm | |
| Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. | |
| Optional Accessory | Super Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. | |
