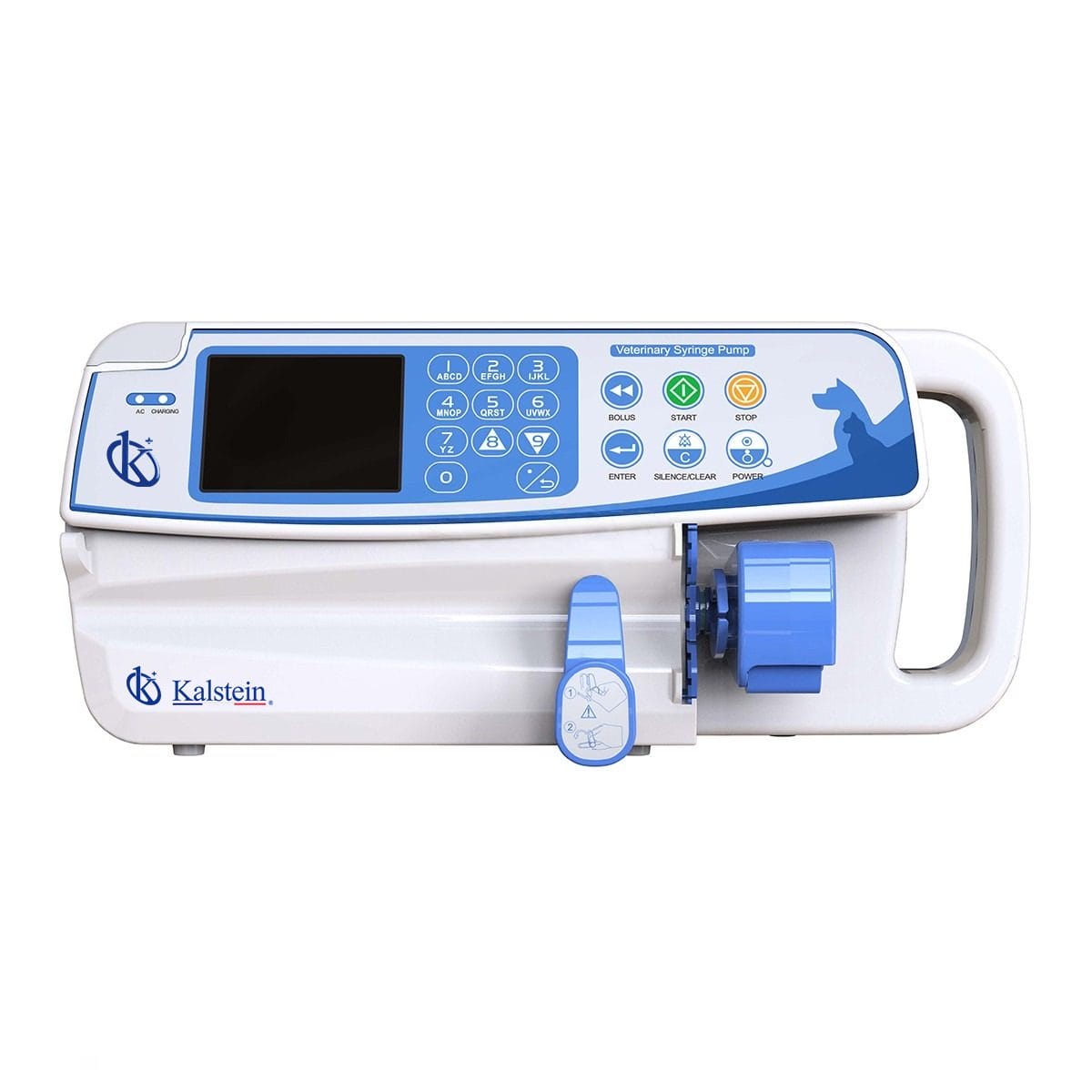

Veterinary Syringe Pump YR06185
Veterinary Syringe Pump YR06185 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Veterinary Syringe Pump YR06185 is an advanced medical device designed to ensure precise and reliable infusion for veterinary applications. This syringe pump features a large, colorful LCD display that provides clear readings of infusion parameters, while its unique syringe recognition technology ensures compatibility with various syringe brands and sizes. The 90-degree rotatable pole clamp adds convenience by allowing easy attachment to horizontal bars and vertical IV poles. Equipped with dual CPU technology, this pump guarantees safe and accurate infusions. Its intelligent alarm system, combined with adjustable buzzer volume and anti-bolus function, enhances the safety and usability of the device.
Market Price
In the current market, syringe pumps of this nature typically range between 800 USD to 1600 USD. It's crucial to understand the assortment of features and benefits that come with the Veterinary Syringe Pump YR06185, as this justifies its pricing and positions it as a top choice for veterinary professionals seeking reliability and precision.
Frequently Asked Questions
Q: What types of syringes are compatible with the Veterinary Syringe Pump YR06185?
A: This syringe pump is compatible with a wide range of sterile syringes from 5ml to 60ml across different brands.
Q: How does the syringe pump ensure infusion accuracy?
A: The pump offers an accuracy of ±2% after correct syringe calibration, providing dependable delivery of solutions.
Advantages and Disadvantages
Advantages: The Veterinary Syringe Pump YR06185 features dynamic pressure display, multiple alarms for various conditions, and double CPU processing for enhanced safety. Its adaptability to different syringe brands and sizes ensures versatility.
Disadvantages: Some users might find the device's comprehensive feature set requires a learning curve for optimal operation.
Product Use in Field
The Veterinary Syringe Pump YR06185 is frequently used in veterinary clinics and hospitals to administer precise dosages of medication or fluids to animals. Its robust construction and feature-rich design ensure it can perform under various conditions, tailored to both high-volume clinics and specialized veterinary practices.
Recommendations
To maximize the effectiveness and longevity of the Veterinary Syringe Pump YR06185, it is recommended that users regularly calibrate the pump according to the syringe brand used, ensure the pump is charged fully before extended use, and remain vigilant for alarm notifications to maintain optimal infusion conditions. Don't hesitate to request a quote or generate an automatic quote via the Kalstein Plus platform to explore more about this essential veterinary tool.
Features
- Large & Colorful LCD display.
- Unique syringe intelligent recognition technology.
- Dynamic pressure display.
- Double CPU ensuring safe infusion.
- RS232 interface for connectivity.
- Adjustable buzzer volume and anti-bolus function.
- Various visual and audible alarms.
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
Technical specifications
| Dimensions | L 40 × W 22 × H 21 cm |
|---|---|
| Weight | 3 kg |
| Manufacturer | Kalstein |
