Description

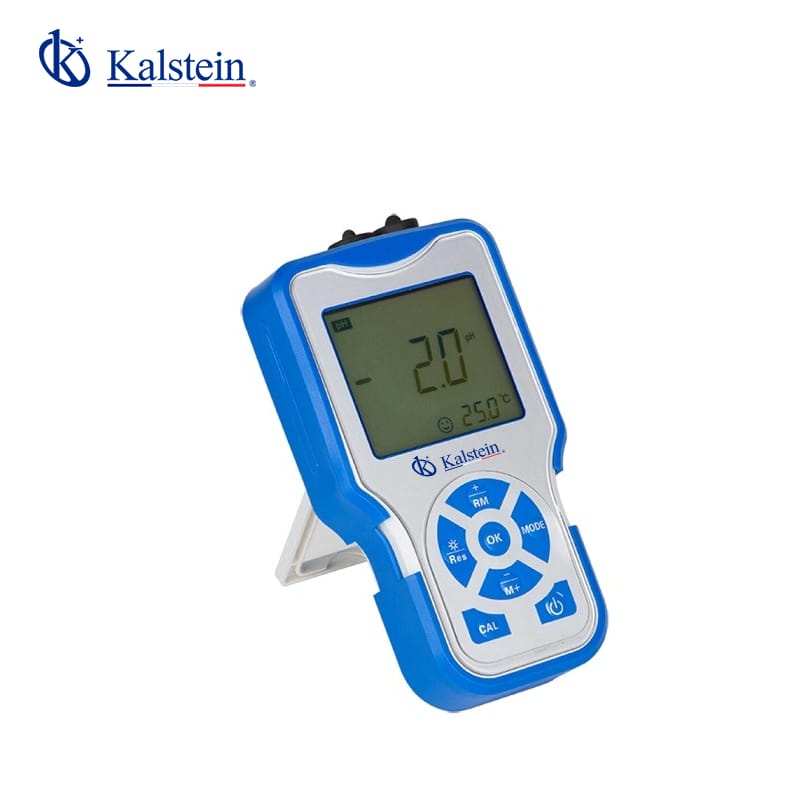

- This versatile measurement device features a large LCD screen with a controllable white backlight for clear visibility. It incorporates a built-in microprocessor chip with intelligent functions such as auto calibration, Automatic Temperature Compensation (ATC), data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt.
- The device supports auto recognition of 8 standard conductivity solutions with options for Europe & USA, and China. It employs advanced conductivity measurement technology with one-point calibration of the conductivity electrode (constant K=1), meeting accuracy requirements for tests ranging from 0.5 µS/cm to 200 mS/cm. Users can switch between conductivity, TDS, salinity, and resistivity, with multinomial calculations ensuring precise conversions across the full scale.
- The conductivity mode features non-linear temperature compensation for high purity water. The plastic conductivity electrode includes automatic temperature compensation for fast and accurate results. Rated IP57, this device is also equipped with a suitcase for outdoor use.
Technical Specification
Model | YR01818 |
Measuring range |
Conductivity: (0.00~19.99)µS/cm, (20.0~199.9)µS/cm, (200~1999)S/cm, (2.00~19.99)mS/cm, (20.0~199.9)mS/cm, TDS: (0~100)g/L, Salinity: (0~100)ppt, Resistivity: (0~100) ΜΩ·cm
|
Resolution |
0.01/0.1/1µS/cm; 0.01/0.1 mS/cm
|
Accuracy |
±1.0% FS, Overall:±1.5% FS
|
Temp. compensation range |
(0~100)°C(Auto/manual)
|
Electrode constant | -1 |
Data storage | 0.1/1/10 cm |
Power | 200 sets |
Shipping size/G.W. |
Two AA batteries (1.5V x2)
|
Ambient temperature |
(340x270x50)mm/1Kg
|
Ambient humidity |
5~35 °C(0.01grade)
|
IP grade | ≤85% |
Meter Kits
|
IP57 Dustproof and waterproof
|
1) Conductivity meter
|
|
2) Conductivity electrode (K=1)
|
|
3) Temperature electrode
|
|
4) Suitcase |
