Site Requirements and Environmental Conditions for the YR04953 Microwave Digestion System
The YR04953 Microwave Digestion System is a cutting-edge laboratory device designed for efficient sample digestion. To ensure optimal performance and longevity of the system, it is critical to adhere to specific site requirements and environmental conditions. This article will delve into the necessary installations, environmental considerations, and best practices to maintain the YR04953 in peak operating condition.

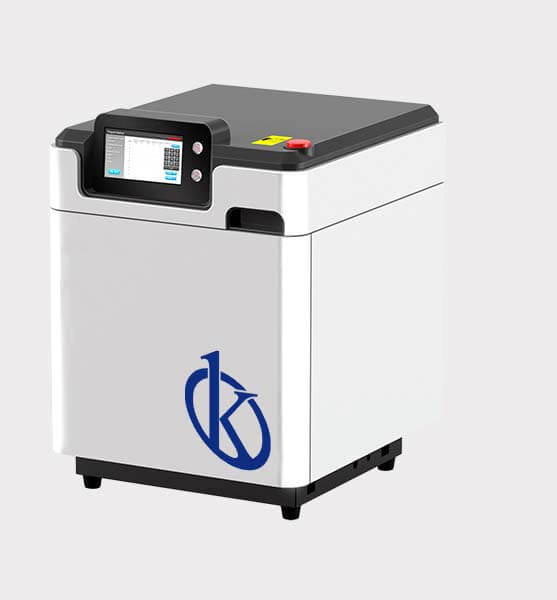

Understanding the YR04953 Microwave Digestion System
The YR04953 is engineered for high-performance microwave digestion, which involves the use of microwave energy to facilitate chemical reactions. Its sophisticated design and advanced features make it suitable for a wide range of applications in laboratories worldwide. However, its efficacy heavily relies on the proper setup and surrounding conditions.
Technical Specifications of the YR04953
| Model | YR04953 |
|---|---|
| Number of Vessels | 6 |
| Temperature Control System | Non-contact IR sensor |
| Pressure Control System | Non-contact pressure sensor |
| Power Supply | 220V ±10%, 10A, 50/60Hz |
| Dimensions | 490 × 560 × 630 mm |
| Weight | 47 kg |
| Display | 7-inch Touchscreen |
Site Preparation Checklist
Proper site preparation is crucial for the successful operation of the YR04953 Microwave Digestion System. The following checklist outlines key considerations:
- Space Requirements: Ensure sufficient space for installation, operation, and maintenance of the YR04953, including clearance for ventilation.
- Ventilation: Adequate ventilation must be provided to prevent heat accumulation and ensure safe operation.
- Electrical Requirements: Confirm that the power supply meets the specifications (220V ±10%, 10A, 50/60Hz) to avoid power issues.
- Environmental Conditions: Maintain ambient temperature between 15°C to 30°C and humidity levels below 70% for optimal performance.
- Flooring Stability: Ensure level and stable flooring to support the weight of the unit and prevent vibrations.
Temperature and Humidity Control
Maintaining appropriate temperature and humidity levels is imperative for the YR04953 Microwave Digestion System. High humidity can lead to condensation, affecting sensitive components, while extreme temperatures can impact performance. The system operates efficiently within a temperature range of 15°C to 30°C and relative humidity below 70%. Regular monitoring of these conditions using environmental sensors is recommended.
Power Supply Considerations
The YR04953 requires a stable power supply to function correctly. Fluctuations in voltage can cause errors and potentially damage the system. It is advised to use a dedicated circuit for the unit, ideally with a surge protector to safeguard against power surges. Ensure that the electrical outlet is compliant with the power specifications outlined in the technical data.
Common Installation Mistakes
To avoid complications during installation and operation, consider these common mistakes:
- Ignoring Space Clearance: Failing to leave adequate space around the unit can lead to overheating and performance issues.
- Inadequate Ventilation: Not providing sufficient airflow can cause overheating and may trigger safety protocols.
- Improper Electrical Setup: Misconfigurations in the electrical setup can lead to system malfunctions.
Site Requirements for Various Applications
Different applications of the YR04953 might have specific site requirements. For instance:
- Clinical Laboratories: Require stringent temperature and humidity controls to ensure sample integrity.
- Industrial Settings: Should accommodate heavier loads and potentially harsher environmental conditions.
- Educational Institutions: Must ensure safety features are prioritized due to student interactions.
Frequently Asked Questions
What are the ideal environmental conditions for operating the YR04953?
The ideal conditions for operating the YR04953 include a temperature range of 15°C to 30°C and humidity levels below 70%. These conditions help maintain the functionality and longevity of the system.
How much clearance is needed around the YR04953 during installation?
It is recommended to leave at least 15 cm of clearance on all sides of the YR04953 to ensure proper ventilation and ease of access for maintenance and operation.
What power supply specifications are required for the YR04953?
The YR04953 requires a power supply of 220V ±10%, 10A, with a frequency of 50/60Hz to function optimally. A dedicated circuit is advisable to stabilize power delivery.
Can the YR04953 be operated in a laboratory with high humidity?
Operating the YR04953 in high humidity conditions (above 70%) is not recommended, as it can lead to condensation and damage sensitive components of the system.
What are the common mistakes when installing the YR04953?
Common installation mistakes include inadequate space clearance, insufficient ventilation, and improper electrical setup, all of which can adversely affect the system's performance.
How often should the environmental conditions be monitored for the YR04953?
It is advisable to monitor the environmental conditions continuously or at least daily to ensure they remain within the recommended ranges for optimal operation.
What should I do if I experience issues with the YR04953?
If you encounter issues with the YR04953, consult the troubleshooting guidelines provided in the user manual or contact technical support for assistance.
