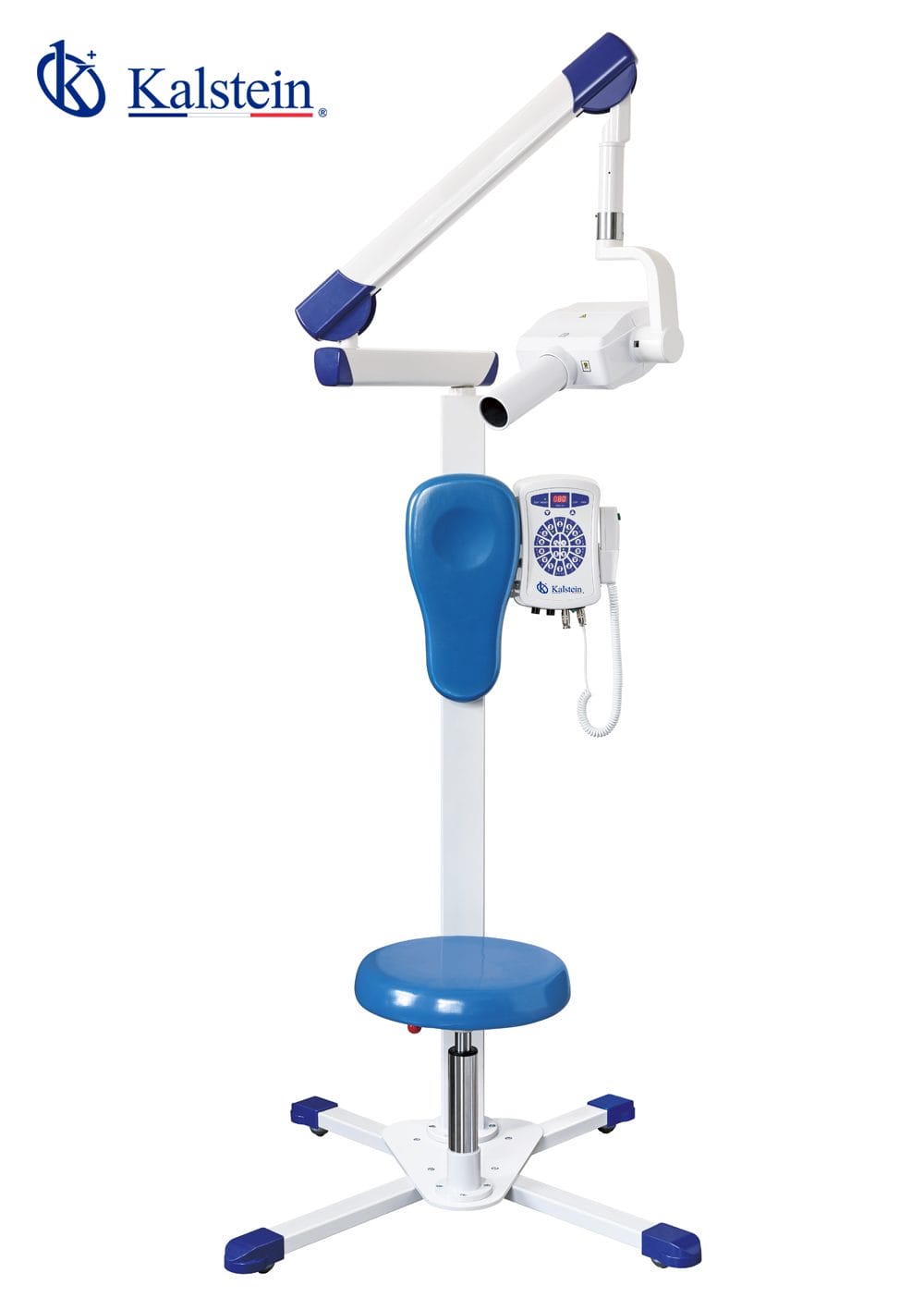

Site Requirements and Environmental Conditions for the YR06196 Digital Veterinary Intraoral X-ray System
The YR06196 Digital Veterinary Intraoral X-ray System is built to provide high-quality imaging for veterinary applications. However, to ensure optimal performance, specific site requirements and environmental conditions must be adhered to. This article will detail these critical factors to help operators achieve the best outcomes with the YR06196.
Understanding the Environmental Conditions
Environmental conditions play a pivotal role in the functionality and reliability of the YR06196. Factors such as temperature, humidity, and electrical stability are vital for seamless operation. Inadequate conditions can adversely affect image quality and equipment performance.
Temperature and Humidity
The YR06196 operates optimally in a controlled environment. The recommended temperature range is between 10°C to 35°C (50°F to 95°F), and the humidity should be maintained between 30% and 70%. Extreme temperatures or humidity levels can cause malfunction or erroneous readings.
Voltage and Frequency Requirements
This model requires a power supply of 220V±10%, 50HZ, and 1KVA. It's essential to ensure that the electrical supply is stable, as fluctuations can lead to operational failures or error codes.
Site Preparation Checklist
Before installation, a comprehensive site preparation checklist is crucial to avoid common pitfalls. Below is a detailed table to guide the setup of the YR06196.
| Condition | Requirement |
|---|---|
| Temperature | 10°C to 35°C |
| Humidity | 30% to 70% |
| Power Supply | 220V±10%, 50HZ |
| Ventilation | Yes, ensure adequate airflow |
| Vibration | Stable surface, minimize vibrations |
| Clearances | Minimum 1 meter around the unit |
Installation Requirements
Proper installation of the YR06196 ensures safety and enhances equipment longevity. The following steps outline the installation process:
Unboxing and Initial Setup
Upon receiving the YR06196, carefully unbox the equipment and check for any damages. Refer to the user manual for guidance on the initial setup, including positioning and anchoring the unit securely.
Power-Up Sequence and Calibration
After installation, follow the specified power-up sequence. This includes connecting to the power supply and performing a first-run calibration to ensure that the machine is ready for use.
Common Installation Mistakes
Being aware of frequent installation errors can save time and prevent operational issues.
- Improper leveling of the unit, leading to inaccurate readings.
- Failure to check humidity and temperature settings before operation.
- Neglecting electrical supply stability, risking equipment damage.
Technical Specifications of YR06196
The following table provides a technical overview of the YR06196, summarizing critical specifications essential for users:
| Model | YR06196 |
|---|---|
| Power Supply | 220V±10%, 50HZ, 1KVA |
| Tube Voltage | 70 kVp |
| Tube Current | 8 mA |
| Focus Size | 0.8 mm |
| Total Filtration | 2.5 mm AL |
| Exposure Time | 0.2-4s |
| Leak Radiation | Outside one meter ≤ 0.002 Mg/h (National standard: 0.25 Mg/h) |
| Net Weight | 57 kg |
| Chip Type | CMOS APS |
| Dimension | 39×28.5 mm |
Frequently Asked Questions
What are the optimal temperature and humidity conditions for the YR06196?
The YR06196 operates best within a temperature range of 10°C to 35°C (50°F to 95°F) and humidity levels between 30% and 70% to ensure optimal performance.
How can I properly install the YR06196 to avoid common issues?
Ensure that the unit is placed on a stable, level surface with adequate ventilation. Follow the power-up sequence and perform a calibration check to confirm everything is functioning correctly.
What should I check before powering on the YR06196?
Verify that the power supply is stable and within the required specifications. Also, check the environmental conditions to ensure they meet the necessary requirements for operation.
How can I troubleshoot if the YR06196 fails to power on?
First, check the power connections and ensure that the unit is receiving the appropriate voltage. If everything appears correct, refer to the user manual for troubleshooting steps and contact support if needed.
What is the importance of proper ventilation for the YR06196?
Proper ventilation is crucial to prevent overheating, which can lead to equipment failure or inaccurate readings. Ensure there is ample airflow around the unit during operation.
Can I use the YR06196 in a mobile setting, and what adjustments are necessary?
Yes, the YR06196 can be used in a mobile setting. Ensure that the unit is secured and stable, and that environmental conditions are monitored for changes during transport.
How do I maintain optimal performance of the YR06196?
Regular maintenance includes checking environmental conditions, ensuring proper installation, and following the manufacturer's guidelines for calibration and usage to maintain high performance.
