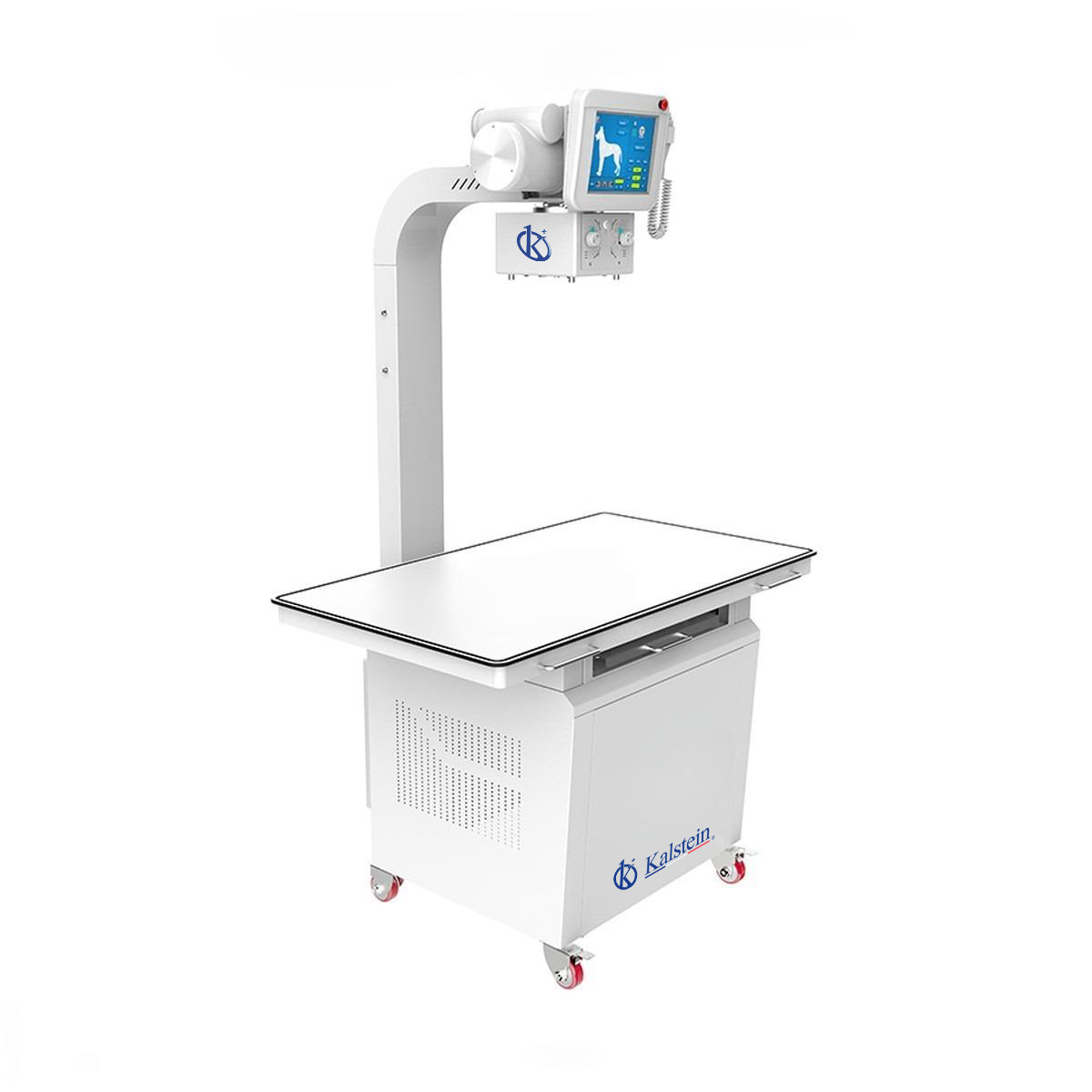

Understanding Site Requirements and Installation Conditions for the YR06162 Digital Veterinary X-ray
The YR06162 Digital Veterinary X-ray is a sophisticated piece of equipment designed to provide high-quality imaging for veterinary practices. To ensure optimal performance and reliability, it is crucial to understand the environmental conditions and installation requirements necessary for this device. This guide will cover essential aspects such as temperature ranges, humidity levels, electrical specifications, and other site preparation considerations specific to the YR06162 model.
Technical Specifications Table for YR06162
| Specification | Details |
|---|---|
| Model | YR06162 |
| Maximum Output Power | 16 kW |
| Input Voltage Range | AC 220V±22V |
| Applicable Support | Radiography |
| Inverter Frequency | ≥30kHz |
| Tube Voltage Range for Radiography | 40kV~125kV |
| Range of Tube Current | 16~200mA |
| Range of Exposure Time | 0.0025s~6.4s |
| mAs Range | 0.5mAs~320mAs |
| Communication Interface | RS-232 |
| Maximum Tube Voltage | 125 kV |
| Focus | Small focus: 1.0mm; Large focus: 2.0mm |
| Anode Input Power | Small focus: 20KW; Large focus: 40KW |
| Anode Speed | 2800 R/M |
| Target Angle | 17.5° |
| Anode Heat Content | 100kJ (140kHU) |
Environmental Conditions for the YR06162
To maintain the functionality of the YR06162, specific environmental conditions must be met. These include temperature and humidity parameters, as well as other physical considerations:
- Temperature Range: The optimal operating temperature for the YR06162 is between 18°C and 30°C. Temperatures outside this range can lead to performance issues or hardware malfunctions.
- Humidity Levels: The relative humidity should be maintained between 30% and 75%. High humidity can cause condensation and impact electronic components.
- Ventilation: Adequate ventilation is crucial to prevent overheating and to ensure proper airflow around the unit.
- Vibration and Acoustic Levels: The installation site should minimize vibrations. Excessive vibrations can lead to inaccurate readings and damage to internal components.
- Electromagnetic Interference (EMI): The YR06162 should be positioned away from sources of EMI, such as heavy machinery, to avoid signal degradation.
Electrical Requirements
The YR06162 requires specific electrical conditions to operate efficiently. Understanding these requirements is crucial for installation:
- Power Supply: The device operates on an AC voltage of 220V±22V. Ensure that the electrical supply can provide stable voltage within this range.
- Inverter Frequency: The YR06162 operates at an inverter frequency of ≥30kHz. It is important that the power source can accommodate this frequency to ensure smooth operation.
- Power Demand: The maximum output power requirement is 16 kW, so the electrical infrastructure must support this load without risk of tripping breakers or causing outages.
Site Preparation Checklist for YR06162
Before the installation of the YR06162, ensure that all site preparation steps are followed:
| Preparation Step | Description |
|---|---|
| Site Assessment | Evaluate the location for temperature, humidity, and EMI levels. |
| Electrical Inspection | Ensure the power supply meets the voltage and frequency requirements. |
| Ventilation Check | Install ventilation systems if natural airflow is insufficient. |
| Floor Stability | Ensure the floor can support the weight of the equipment and is level. |
| Access Points | Make sure there is adequate space for personnel and equipment access. |
Common Installation Mistakes and Solutions
Understanding common pitfalls during installation can help avoid operational issues later on. Here are some frequent mistakes and how to address them:
- Incorrect Voltage Supply: Double-check the power supply before connecting the unit to prevent electrical damage.
- Poor Ventilation: Ensure adequate airflow around the device to avoid overheating; consider adding fans if necessary.
- Improper Leveling: Use a level to confirm the device is installed on a flat surface to ensure accurate operation.
Frequently Asked Questions
What are the ideal temperature and humidity conditions for operating the YR06162?
The ideal temperature range for the YR06162 is between 18°C and 30°C, with humidity levels maintained between 30% and 75% to ensure reliable performance.
How much power does the YR06162 require, and what are its electrical specifications?
The YR06162 requires a power supply of AC 220V±22V and has a maximum output power of 16 kW, with an inverter frequency of ≥30kHz.
What should be included in a site preparation checklist for the YR06162?
A site preparation checklist should include items such as site assessment, electrical inspections, ventilation checks, floor stability evaluations, and ensuring adequate access points for personnel.
What are common installation mistakes for the YR06162 and how can they be avoided?
Common installation mistakes include incorrect voltage supply, poor ventilation, and improper leveling. To avoid these, double-check electrical requirements, ensure adequate airflow, and use a level during installation.
What is the impact of electromagnetic interference (EMI) on the operation of the YR06162?
EMI can degrade the performance of the YR06162, potentially leading to signal loss and inaccuracies in imaging. It is essential to install the device away from heavy machinery or other EMI sources.
Can I request a quote for purchasing the YR06162 online?
Yes, you can request a quote for the YR06162 through authorized channels. This ensures you receive the best pricing and service tailored to your needs.
How can I ensure the YR06162 is properly maintained post-installation?
Regular maintenance checks should include verifying electrical connections, ensuring ventilation systems are functioning, and monitoring environmental conditions to prevent any operational issues.
For further exploration of the YR06162 and its specifications, you can request a quote today.
