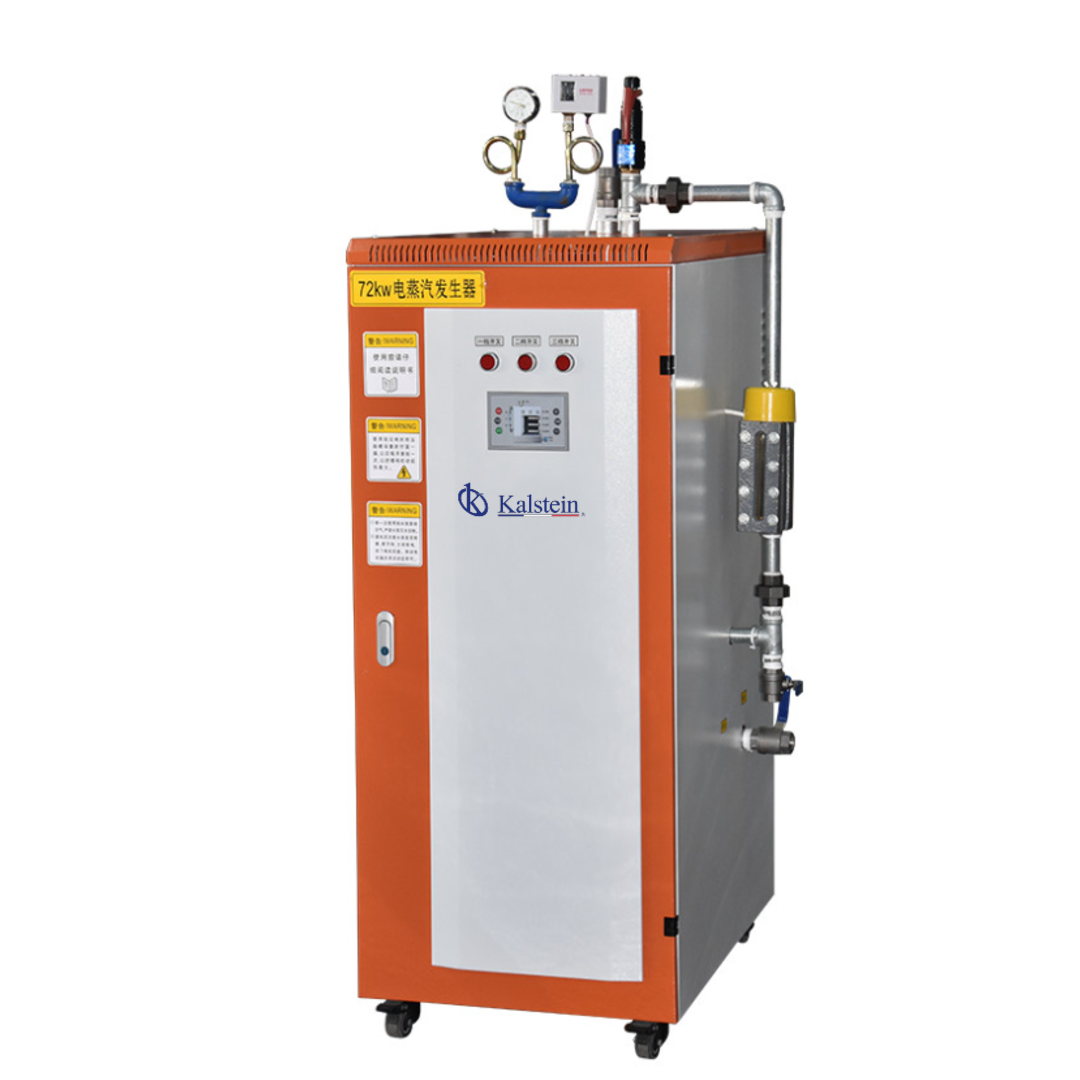

Site Requirements and Installation Conditions for the YR06672 Automatic Electric Steam Generator
The YR06672 Automatic Electric Steam Generator is engineered for high efficiency and reliability in various industrial applications. To maximize its performance, understanding the site requirements and installation conditions is crucial. This article will provide a comprehensive guide to ensure that your YR06672 operates optimally in your specific environment.
Understanding the YR06672
The YR06672 model is designed to generate high-quality steam, essential for processes requiring precise thermal control. It meets strict national standards (GB / T10393-2002) and features advanced technology to ensure stable operation and minimal fluctuations in steam quality. The installation site must adhere to specific parameters to maintain its operational integrity.
Technical Specifications of YR06672
| Parameter | Specifications |
|---|---|
| Model | YR06672 |
| Power (KW) | 48 |
| Evaporation Capacity (KG) | 65 |
| Design Temperature (°C) | 150 |
| Voltage (V) | 380 |
| Operating Pressure (Mpa) | 0.4 |
| Water Volume (KG) | 28 |
| Steam Pipe Diameter (mm) | DN15 |
| Dimensions (cm) | 50 x 65 x 105 |
| Gross Weight | 90 kg |
| Manufacturing Standard | GB / T10393-2002 |
| Steam Humidity | ≤ 2% |
| Connection Type | Flange |
Site Preparation Checklist for YR06672
Proper site preparation is critical for the installation and operation of the YR06672. Below is a checklist of essential requirements:
- Electrical Supply: Ensure a three-phase electrical supply with a voltage of 380V. Circuit breakers should be installed according to local regulations to prevent overload.
- Space Requirements: Allocate sufficient space for the unit considering its dimensions (50 x 65 x 105 cm) and additional space for ventilation and maintenance.
- Clearance: Ensure at least 1 meter of clearance around the generator for safe operation and maintenance access.
- Water Supply: A consistent supply of water is necessary, ideally with a pressure of 0.4 Mpa. All plumbing must comply with local codes.
- Drainage System: A proper drainage system must handle the condensate produced, preventing backflow and ensuring efficient operation.
- Ventilation: Install adequate ventilation to maintain optimal operating temperatures and prevent overheating.
- Vibration and EMI Considerations: The installation site should minimize vibration and electromagnetic interference (EMI) from surrounding equipment.
Environmental Conditions for Optimal Functioning
The YR06672 is sensitive to specific environmental conditions. Adhering to the following guidelines will enhance performance:
- Temperature Range: The unit is designed to operate effectively within a range of 10°C to 50°C. Extreme temperatures can affect functionality.
- Humidity Levels: Ideal operating humidity levels range from 30% to 70%. High humidity can lead to corrosion and operational issues.
- Power Frequency: Ensure the power supply frequency is stable at 50 Hz.
Installation Steps for YR06672
Following a systematic approach to installation is crucial to avoid operational issues. Here are the steps to install the YR06672:
- Unboxing: Carefully unbox the generator and check for any visible damages or missing components.
- Placement: Position the generator according to the prepared site layout on a flat and stable surface.
- Anchoring: Secure the generator to the floor using appropriate mounting brackets to prevent movement during operation.
- Electrical Connections: Connect the electrical supply to the generator, ensuring all connections are tight and insulated.
- Water Connections: Connect the water supply and drainage systems, ensuring no leaks in the connections.
- First Power-Up: Power on the unit and perform a first-run calibration to ensure all systems are functioning correctly.
- Validation: Check steam output and ensure the system reaches operational parameters within the specified time.
Troubleshooting Common Installation Issues
During installation, operators may encounter several common issues. Here are troubleshooting steps to address them:
| Symptom | Probable Causes | Solutions |
|---|---|---|
| Unit does not power on | Electrical connection issues or power supply failure | Check the electrical connections and ensure the circuit breaker is not tripped. |
| Steam quality is poor | High humidity levels or improper water supply | Evaluate environmental conditions and ensure the water supply meets specifications. |
| Excessive noise during operation | Improper anchoring or loose components | Tighten all loose bolts and ensure the unit is securely anchored. |
Frequently Asked Questions
What are the specific site requirements for the YR06672?
The YR06672 requires a sturdy, flat surface with adequate electrical and water supply connections, ensuring proper drainage and ventilation around the unit.
How can I ensure optimal performance of the YR06672?
Optimal performance can be achieved by maintaining specified environmental conditions such as temperature, humidity, and regular maintenance checks.
What is the recommended installation procedure for the YR06672?
Follow a systematic approach, including unboxing, placement, anchoring, and ensuring all electrical and water connections are secure before powering up the unit.
Are there any common troubleshooting steps for installation issues?
Common issues include power failure, poor steam quality, and excessive noise; check connections, environmental conditions, and secure the unit properly.
What maintenance practices can prolong the life of the YR06672?
Regular inspections of connections, periodic cleaning of components, and ensuring the unit operates within specified parameters will help prolong its lifespan.
How do I know if the YR06672 is installed correctly?
Correct installation can be validated by checking for steady steam output, stable pressure and temperature levels, and confirming there are no leaks in connections.
Where can I request a quote for the YR06672?
You can request a quote for the YR06672 via our online channels for immediate assistance.
