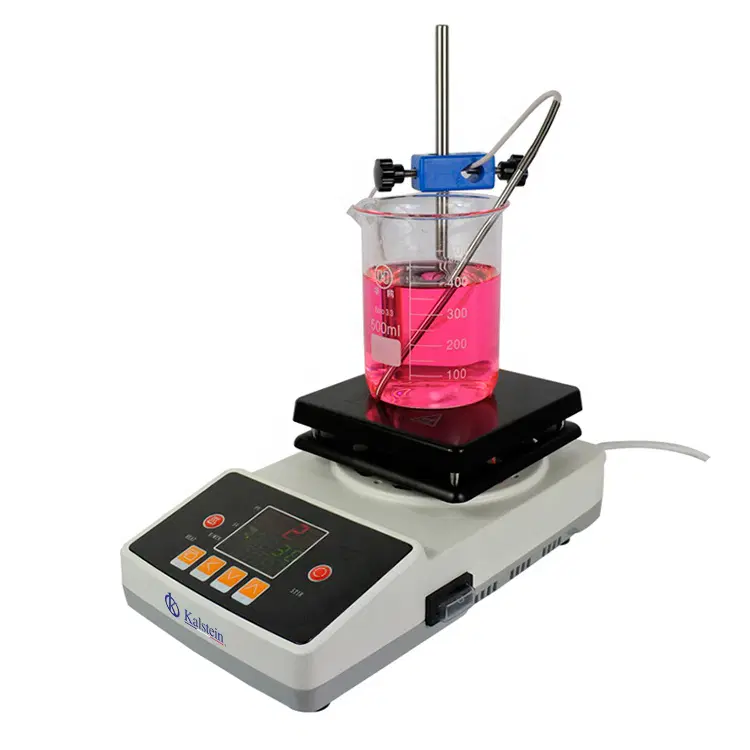

Technical Glossary and Key Terminology for the YR02943 Intelligent Digital Display Ceramic Top Hotplate Stirrer
The YR02943 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a vital piece of laboratory equipment used in various applications, particularly in chemistry and biology. Understanding the technical terms associated with this device is crucial for effective operation and maintenance. In this article, we will explore essential terminology, technical specifications, operational principles, and frequently asked questions to provide a comprehensive understanding of the YR02943.
Understanding Key Terms Relating to the YR02943
To operate the YR02943 effectively, familiarity with specific terminology is necessary. Below is a glossary of terms that are pivotal in understanding this hotplate stirrer:
| Term | Definition |
|---|---|
| Digital Display | A screen that provides real-time information about the temperature and speed settings of the YR02943. |
| Ceramic Top | The surface material of the hotplate, which offers excellent resistance to heat and corrosion. |
| Magnetic Stirrer | A device that uses a rotating magnetic field to create a stir in a liquid solution. |
| PID Control | A method of control that uses proportional, integral, and derivative components to maintain the desired temperature accurately. |
| Calibration | The process of adjusting the equipment to ensure its output is accurate and reliable. |
| Temperature Range | The operational temperature limits within which the YR02943 functions optimally, ranging from ambient to 380°C. |
| Heating Power | The maximum output capacity of the heating element in watts, which is 750W for the YR02943. |
| Mixing Speed | The rate at which the stirrer rotates, adjustable between 100 to 1800 RPM. |
| Thermal Insulation | A safety feature that prevents heat loss and protects electronic components from damage. |
| Compatibility | Refers to reagents or accessories that can be safely used with the YR02943. |
Technical Specifications of the YR02943
| Specification | Details |
|---|---|
| Model | YR02943 |
| Volume | 10L |
| Heating Plate Size (mm) | 230 x 230 |
| Heating Power (W) | 750 |
| Heating Plate Material | Ceramic-coated aluminum (white or black) |
| Temperature Range | RT-380 °C |
| Mixing Speed | 100-1800 RPM |
| Temperature Control | PID Automatic Control |
| Temperature Display (°C) | LCD Digital Display |
| Temperature Accuracy | +/- 1 °C |
| Thermocouple Probe (Sensor) | PT100, with internal and external thermocouples |
| Operating Temperature Limit | RT up to 40 °C |
| Voltage | 220V / 110V Optional |
| Dimensions (mm) | 500 x 400 x 350 |
| Weight (kg) | 7.5 |
Common Issues and Troubleshooting for the YR02943
While the YR02943 is designed for durability and ease of use, operators may encounter some issues. Below is a troubleshooting guide for common symptoms:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Device Does Not Power On | Power supply issue or faulty cable | Check the power outlet and cable connections. |
| Error Code E-03 | Over-temperature error | Allow cooling; check thermocouple operation. |
| Inconsistent Mixing | Incorrect speed setting or magnetic bar misalignment | Adjust speed and ensure the magnetic bar is centered. |
| Temperature Display Fluctuates | Faulty sensor | Inspect the thermocouple and replace if necessary. |
Frequently Asked Questions
What is the maximum temperature the YR02943 can reach?
The YR02943 can reach a maximum temperature of 380 °C, making it suitable for various heating applications.
How do I calibrate the YR02943 for accurate temperature readings?
Calibration can be performed by comparing the temperature readings of the YR02943 with a certified thermometer and adjusting the PID settings if discrepancies are found.
What maintenance is required for the YR02943?
Regular cleaning of the ceramic surface and ensuring that the internal components are free of spills and contaminants is essential for maintaining the YR02943.
Can the YR02943 be used with closed systems?
Yes, the YR02943 is designed to be used in closed systems without complicated seals, making it ideal for a variety of applications.
What is the weight of the YR02943?
The YR02943 weighs 7.5 kilograms, making it compact and portable for laboratory use.
What accessories are compatible with the YR02943?
Accessories such as various sizes of magnetic stirring bars, beakers, and temperature probes are compatible with the YR02943.
How can I request a quote for the YR02943?
You can request a quote for the YR02943 directly from our sales team for tailored pricing and options.
