Understanding Technical Glossary and Key Terminology for the YR05199 Freeze Dryer

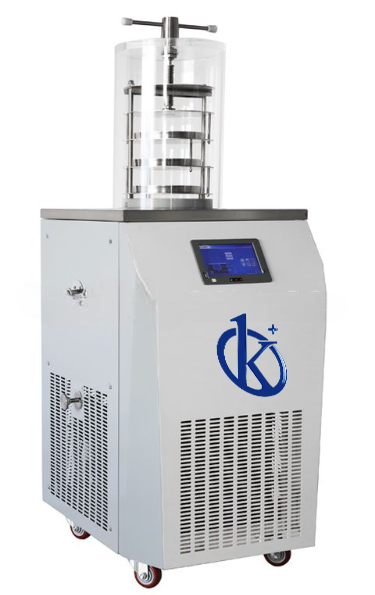

The YR05199 Vertical Electric Heating Laboratory Freeze Dryer is an advanced piece of laboratory equipment utilized extensively in various fields, including medicine, pharmaceuticals, biological research, chemistry, and food processing. This article aims to define key technical terminology and concepts associated with this specific model, facilitating a better understanding of its operation and applications.
Technical Features of the YR05199
The YR05199 incorporates several innovative features that enhance its performance:
- Lyophilization Process Control: This feature ensures precise monitoring and adjustment of the lyophilization cycle to achieve optimal results.
- Electric Heating Control: The unit utilizes electric heating for controlled temperature elevation, essential for efficient drying.
- 7-Inch Touch Screen: A user-friendly interface for easy operation and monitoring of the drying process.
- Stainless Steel Cold Trap: Constructed for durability and effective collection of sublimated moisture.
- Large Opening Siphon: Facilitates pre-freezing and enhances operational efficiency.
- Electric Defrost Function: Simplifies maintenance by ensuring easy defrosting.
- Flexible Vacuum Switching: Allows adaptation to different measurement units like Pa and mBar.
- Vacuum Pump Protection: Features ensure that the vacuum pump operates under safe conditions, prolonging its life.
Technical Specifications of the YR05199
| Specification | Value |
|---|---|
| Model | YR05199 |
| Lyophilized Area | 0.09 m² |
| Tray Material | Ф200 mm, 3 layers |
| Distance Between Trays | 70 mm |
| Storage Temperature | -40 to +60 °C |
| Cold Trap Temperature | ≤ 60 °C (no load), optional ≤ -80 °C (no load) |
| Water Capture Capacity | 6 kg/24h |
| Ultimate Vacuum | ≤ 5 Pa (no load) |
| Power | 1800 W |
| Host Weight | 105 kg |
| Central Unit Dimensions | 630×580×1455 mm |
Key Technical Terms Glossary
| Term | Definition |
|---|---|
| Lyophilization | A freeze-drying process that removes moisture from materials while preserving their structure and properties. |
| Vacuum | A space devoid of matter, crucial for the sublimation process in freeze drying. |
| Cold Trap | A component that collects moisture released during the lyophilization process, preventing it from entering the vacuum pump. |
| Electric Heating | A method of applying heat to the freeze dryer to facilitate the drying process efficiently. |
| Pressure Control | Systems that regulate vacuum levels to ensure optimal lyophilization conditions. |
| Tray | A platform where samples are placed for the lyophilization process. |
| Siphon | A device used to transfer liquids or vapors, particularly in the pre-freezing stage. |
| Defrost Function | A feature that allows for the rapid melting of ice collected in the cold trap. |
| Water Capture | The ability of the freeze dryer to collect moisture, measured in kg per hour. |
| Ultimate Vacuum | The lowest pressure that can be achieved, critical for effective sublimation. |
Frequently Asked Questions
What is the principle behind the lyophilization process in the YR05199?
Lyophilization, or freeze drying, involves freezing the product and then reducing the pressure to allow the frozen water in the material to sublimate directly into vapor. This process ensures that the structure and biochemical properties of the product remain intact.
How do I maintain the YR05199 freeze dryer?
Regular maintenance includes cleaning the cold trap, checking vacuum seals, and ensuring that the screens are clean for optimal operation. Following the manufacturer's guidelines for maintenance will enhance the lifespan of the equipment.
What are common issues faced with the YR05199 and how can they be resolved?
Common issues include failure to reach the desired vacuum level, which can be resolved by checking for leaks, and the cold trap not operating correctly, which may require defrosting or cleaning.
Can the YR05199 be used for food preservation?
Yes, the YR05199 is highly effective for food preservation as it maintains the original taste, texture, and nutritional value of the food items after the freeze-drying process.
What safety features does the YR05199 include?
The YR05199 is equipped with vacuum pump protection and a temperature monitoring system that prevents overheating, ensuring safety during operation.
What is the expected lifespan of the YR05199 freeze dryer?
The expected lifespan is contingent upon maintenance and usage but typically ranges from 10 to 15 years, assuming proper care and adherence to operational guidelines.
How do I obtain a quote for the YR05199 freeze dryer?
To get a personalized quote for the YR05199, please reach out directly to our sales team who will assist you with pricing and any additional inquiries.
