Technical Glossary and Key Terminology for the YR06223 Infant Phototherapy Unit
The YR06223 Infant Phototherapy Unit is a sophisticated piece of medical equipment essential for treating neonatal jaundice. To ensure effective operation and understanding of its functionalities, familiarity with its technical terminology and specifications is crucial. This article presents a detailed glossary and in-depth explanations of key terms related to the YR06223.
Overview of the YR06223 Infant Phototherapy Unit

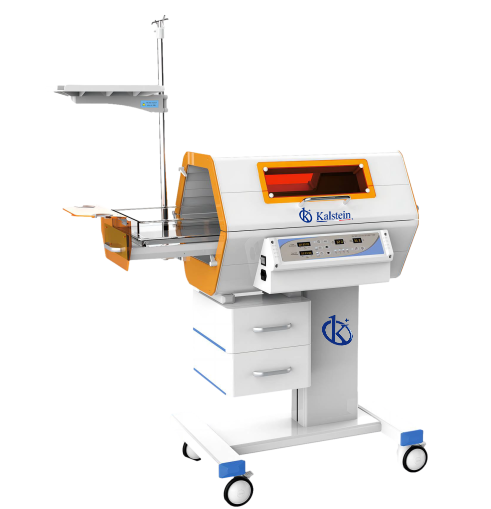

The YR06223 model is designed for efficient and uniform blue light radiation to treat infants suffering from hyperbilirubinemia. Its compact size, electronic ballast, and dual therapy modes enhance its effectiveness and ease of use in clinical environments.
Technical Specifications of the YR06223
| Model | YR06223 |
|---|---|
| Power Supply | AC220V±10%, 50Hz±2% |
| Power Input | ≤400VA |
| Blue Light Wavelength | 420nm~490nm |
| Circle 360 Light Radiation | 3700μW/cm2 |
| Up Side Light Radiation | 3300μW/cm2 |
| Down Side Light Radiation | 2400μW/cm2 |
| Life Span of Blue Light Tube | ≥20000 hours |
| Air Temperature Display Range | 0-45.0°C |
| Skin Temperature Display Range | 0-45.0°C |
| Time Accuracy | 1min/2h |
| Count-up Time Range | 0-99.9 hours |
| Count-down Time Range | 1min~99.9 hours |
| Total Cumulative Time | 0-999999 hours |
| Mattress Size | 613×300 mm |
| Ambient Temperature | 18°C ~ 30°C |
| Relative Humidity | 30%~75% |
| Atmospheric Pressure | 700hpa~1060hpa |
Key Terminology Explained
| Term | Definition |
|---|---|
| Phototherapy | A treatment method that uses light to reduce bilirubin levels in infants. |
| Bilirubin | A yellow compound produced during the normal breakdown of red blood cells, excess levels can cause jaundice. |
| Blue Light | The specific wavelength of light that is most effective in the treatment of jaundice. |
| Light Irradiation | The process of applying light energy to a surface, in this case, the infant's skin. |
| Electronic Ballast | A device that regulates the current to the light source in phototherapy units. |
| 360-Degree Circle | Refers to the design of the light source which allows for even distribution of light from all angles. |
| Skin Temperature | The temperature measurement that is critical for ensuring the safety and comfort of the infant during treatment. |
| Air Temperature | The ambient temperature that can affect the infant's condition during phototherapy. |
| Therapy Time | The duration for which the infant is exposed to phototherapy. |
| Alarm Functions | Safety features designed to alert caregivers of potential issues such as power failure or overtemperature conditions. |
| Memory Function | A feature that records therapy times for monitoring and future reference. |
Frequently Asked Questions
What are the key features of the YR06223 Infant Phototherapy Unit?
The YR06223 offers a compact design, dual modes of phototherapy, high efficiency with LED blue light, and comprehensive safety features including multiple alarm functions.
How does the electronic ballast enhance the YR06223's performance?
The electronic ballast ensures stable power supply, maintains high power factor, and optimizes the efficiency of the blue light source used for phototherapy.
What safety measures are included in the YR06223?
The unit features several alarm functions, including power failure warnings, temperature alerts, and system self-check capabilities to protect both the infant and the equipment.
How is the therapy time recorded in the YR06223?
The YR06223 records therapy times automatically and displays them separately for both upper and downward light therapy modes, providing detailed treatment tracking.
What is the lifespan of the blue light tube in the YR06223?
The blue light tube in the YR06223 has a lifespan of over 20,000 hours, ensuring long-term use before requiring replacement.
How does the design of the YR06223 facilitate its use in clinical settings?
The compact size, easy-opening canopy, and dual-side inspection ports make the YR06223 user-friendly and optimal for clinical environments where space and efficiency are crucial.
Where can I find more information about purchasing the YR06223?
You can request a quote for the YR06223 Infant Phototherapy Unit through our dedicated channels for the best pricing and additional information.
