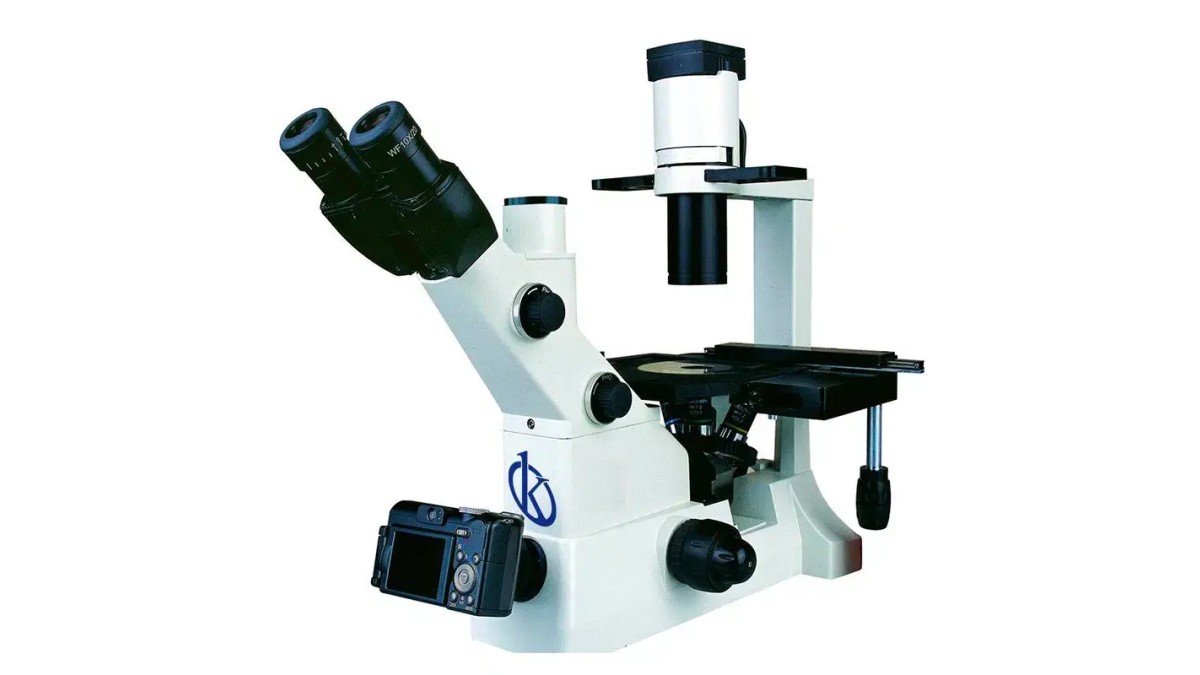

Technical Performance and Security of Microscope Trinocular YR0245
The Microscope Trinocular YR0245 is an optical instrument that enhances the image of an object to perceive intricate details. This laboratory microscope is designed for routine use, allowing the visualization of infinitesimally small objects with great precision and impeccable image quality.
Our selection of microscopes emphasizes efficiency, ergonomics, and robustness, which are essential characteristics for high-quality observation.
Product Description
The YR0245 model features an infinite optical system that is ideal for various applications in laboratory settings. It includes a binocular Siedentopf head that is inclined at 45 degrees and is rotatable up to 360 degrees, accommodating interpupillary distances ranging from 48 mm to 75 mm. The wide field eyepiece of WF10×/22 and a tube diameter of 30 mm ensures a clear and wide view of the specimen.
The microscope comes equipped with a quintuple backwards revolving nosepiece, offering versatility in magnification options. It includes an achromatic LWD Infinity Plan objective with a magnification of 4x and a numerical aperture of 0.10, as well as phase contrast objectives with various magnifications of 10x, 20x, and 40x.
Focusing is made precise with the coaxial coarse and fine adjustment knobs, allowing for fine division adjustments of 0.002 mm and a vertical movement range of 4.5 mm in both upward and downward directions. Additionally, the ELWD condenser with NA0.3 and a working distance of 72 mm ensures optimal lighting conditions for microscopy.
The YR0245 features a large and easy-to-use working stage measuring 230 mm x 170 mm, with a mechanical stage that allows for controlled movement along the X, Y axes. This ensures accurate positioning of samples for examination.
Market Price
The current market price for the Microscope Trinocular YR0245 is approximately $1189.00 USD. This pricing reflects its advanced features and high-quality construction, making it a worthwhile investment for laboratories and educational institutions seeking reliable optical instruments.
| Feature | YR0245 |
|---|---|
| Optical System | Infinite Optical System |
| Head Type | Binocular Siedentopf, 45° inclined, 360° rotatable |
| Eyepiece | WF10×/22 |
| Nosepiece | Quintuple Backwards Revolving |
| Objective | Achromatic LWD Infinity Plan 4x/0.10 |
| Focusing Mechanism | Coaxial Coarse and Fine Adjustment |
| Illumination | 6V/30W Halogen Lamp |
| Weight | 14 kg |
Frequently Asked Questions
What is the magnification range of the YR0245?
The YR0245 microscope offers magnifications of 4x, 10x, 20x, and 40x depending on the objectives used.
What type of illumination does the YR0245 use?
The microscope utilizes a 6V/30W halogen lamp, providing adjustable brightness for optimal viewing conditions.
Can the YR0245 accommodate different types of slides?
Yes, the YR0245 features a large working stage that can accommodate standard microscope slides as well as Petri dishes with specific holders.
Is the YR0245 suitable for educational purposes?
Absolutely, the YR0245 is an excellent choice for educational institutions due to its user-friendly design and high-quality optics.
What materials are used in the construction of the YR0245?
The YR0245 is constructed with durable materials that ensure longevity and stability, suitable for frequent laboratory use.
Are there any optional accessories available for the YR0245?
Yes, optional accessories such as additional eyepieces and objective lenses are available to enhance the microscope's capabilities.
What is the warranty period for the YR0245?
The warranty period for the YR0245 is typically one year, ensuring that you are covered for any manufacturing defects.
Pros and Cons
When considering the Microscope Trinocular YR0245, users should weigh the following pros and cons:
- Pros:
- High-quality optics provide clear and detailed images.
- Ergonomic design ensures comfort during extended use.
- Versatile magnification options for various applications.
- Durable construction suitable for laboratory environments.
- Adjustable illumination enhances visibility.
- Cons:
- Price may be higher than basic models.
- May require some time to master all features.
Field Usage
The YR0245 microscope is ideal for use in various fields including:
- Biological Research: Perfect for studying cells, tissues, and microorganisms.
- Educational Institutions: Suitable for schools and universities for teaching and hands-on learning experiences.
- Quality Control: Useful in laboratories to inspect materials and products.
- Clinical Laboratories: A valuable tool for clinical diagnostics and analysis.
- Pharmaceutical Development: Assists in the research and development of new drugs.
Recommendations
For optimal performance and usage of the Microscope Trinocular YR0245, consider the following recommendations:
- Regularly calibrate the microscope to maintain accuracy.
- Use appropriate cleaning solutions to keep lenses clear and free of dust.
- Invest in high-quality slides and covers to enhance image quality.
- Utilize the microscope in a controlled environment to minimize disturbances.
- Consider purchasing optional accessories to expand the functionality of the microscope.
