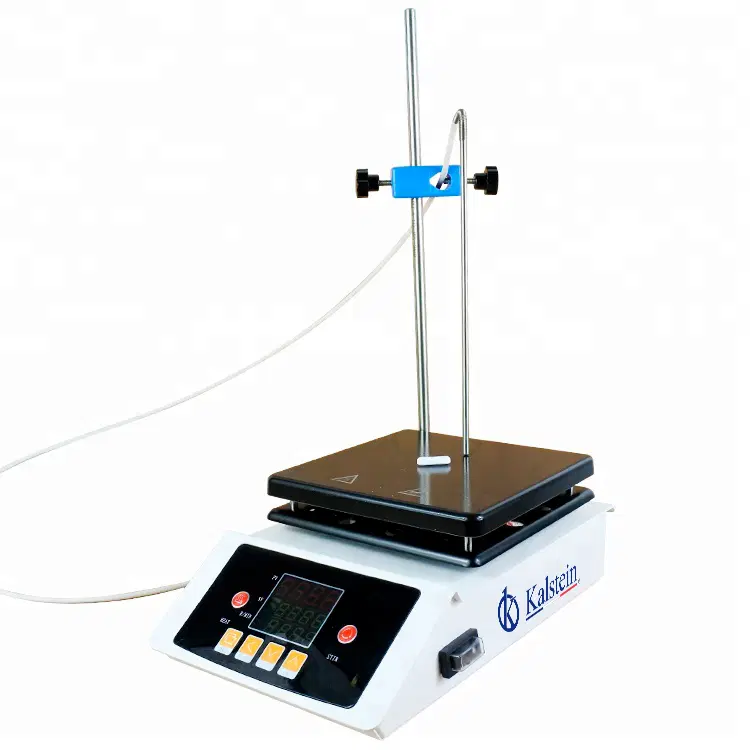

Troubleshooting Common Issues with the YR02944 Hotplate Stirrer
The YR02944 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a versatile laboratory device used for mixing and heating liquids with precision. Despite its robust design and efficiency, users may encounter various issues that affect performance. Understanding these problems through a troubleshooting lens can enhance the user experience and extend the lifespan of the equipment. This guide provides a comprehensive approach to diagnosing and resolving common symptoms associated with the YR02944.
Technical Specifications of the YR02944
| Specification | Description |
|---|---|
| Model | YR02944 |
| Top Plate Size (mm) | 280x280 |
| Temperature Control | Automatic PID Control |
| Heating Range | Ambient to 400 degrees |
| Stirring Speed | 100-1800 RPM |
| Power Supply (W) | 1000 for heating, 40W for motor |
| Weight | 8.2 kg |
Common Symptoms and Troubleshooting Steps
When working with the YR02944, users may experience specific symptoms that indicate underlying issues. Below is a detailed breakdown of common problems, their probable causes, and solutions.
Equipment Does Not Power On
If the YR02944 does not power on, follow these steps:
- Check the power supply connections and ensure the voltage is within the specified range (160-240 V or 110-130 V).
- Inspect the power cord for any visible damages.
- Verify that the power outlet is functional by testing it with another device.
Error Code E-03
Error code E-03 typically indicates a problem with the temperature sensor. To troubleshoot:
- Check the connection of the PT100 thermocouple sensor for any loose wiring.
- Inspect the sensor for damage or contamination.
- Consider recalibrating the temperature sensor according to the manufacturer’s guidelines.
Inconsistent Stirring Speeds
Inconsistent performance in stirring speeds can be frustrating. Here are possible causes and fixes:
- Ensure that the stirring bar is correctly positioned within the container.
- Check for blockages or obstructions in the stirring mechanism.
- Make sure the liquid viscosity is appropriate; excessively thick liquids may impede stirring.
Overheating Issues
If the YR02944 overheats, consider these troubleshooting steps:
- Confirm that the ambient temperature is within acceptable limits (up to 40°C).
- Ensure proper ventilation around the device to allow heat dissipation.
- Reduce the heating temperature setting if overheating occurs during operation.
Symptom-Cause-Solution Matrix for YR02944
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power connection issues | Check power connections, outlet, and cord integrity. |
| Error code E-03 | Faulty temperature sensor | Check sensor connection and recalibrate if necessary. |
| Inconsistent stirring speeds | Improper container or stirring bar | Adjust stirring bar, ensuring it is suitable for the liquid. |
| Overheating | Poor ventilation | Ensure adequate air flow and adjust temperature settings. |
Frequently Asked Questions
What should I do if my YR02944 hotplate stirrer displays an error code?
If your YR02944 displays an error code, refer to the user manual for troubleshooting steps associated with that specific code. Common error codes include E-01 for over-temperature and E-02 for sensor malfunctions. Following the prescribed steps can help diagnose and resolve the issue.
How can I ensure accurate temperature readings on the YR02944?
To ensure accurate temperature readings, regularly calibrate the temperature sensor and confirm that the device is in a stable environment without drafts or significant temperature fluctuations. It's also important to use the appropriate thermocouple for your specific applications.
What materials can I use on the ceramic top of the YR02944?
The ceramic top of the YR02944 is designed for durability and resistance to corrosive substances. You can use most laboratory liquids, but avoid using reactive substances that could damage the ceramic or contaminate samples.
How do I clean the YR02944 after use?
To clean the YR02944, turn off and unplug the device. Use a soft cloth dampened with water or mild detergent to wipe the ceramic surface. Avoid using abrasive materials that could scratch the ceramic coating.
What is the maximum load capacity for stirring with the YR02944?
The YR02944 can accommodate stirring containers with a capacity ranging from 50 mL to 15 L. Always ensure that the stirring bar is compatible with your container size and material for optimal mixing performance.
Conclusion
Understanding common troubleshooting scenarios can greatly enhance your experience with the YR02944 hotplate stirrer. By following the outlined steps and maintaining proactive equipment management, users can minimize disruptions and ensure consistent performance. If you are interested in acquiring the YR02944 or have any inquiries about laboratory equipment, feel free to request a quote.
