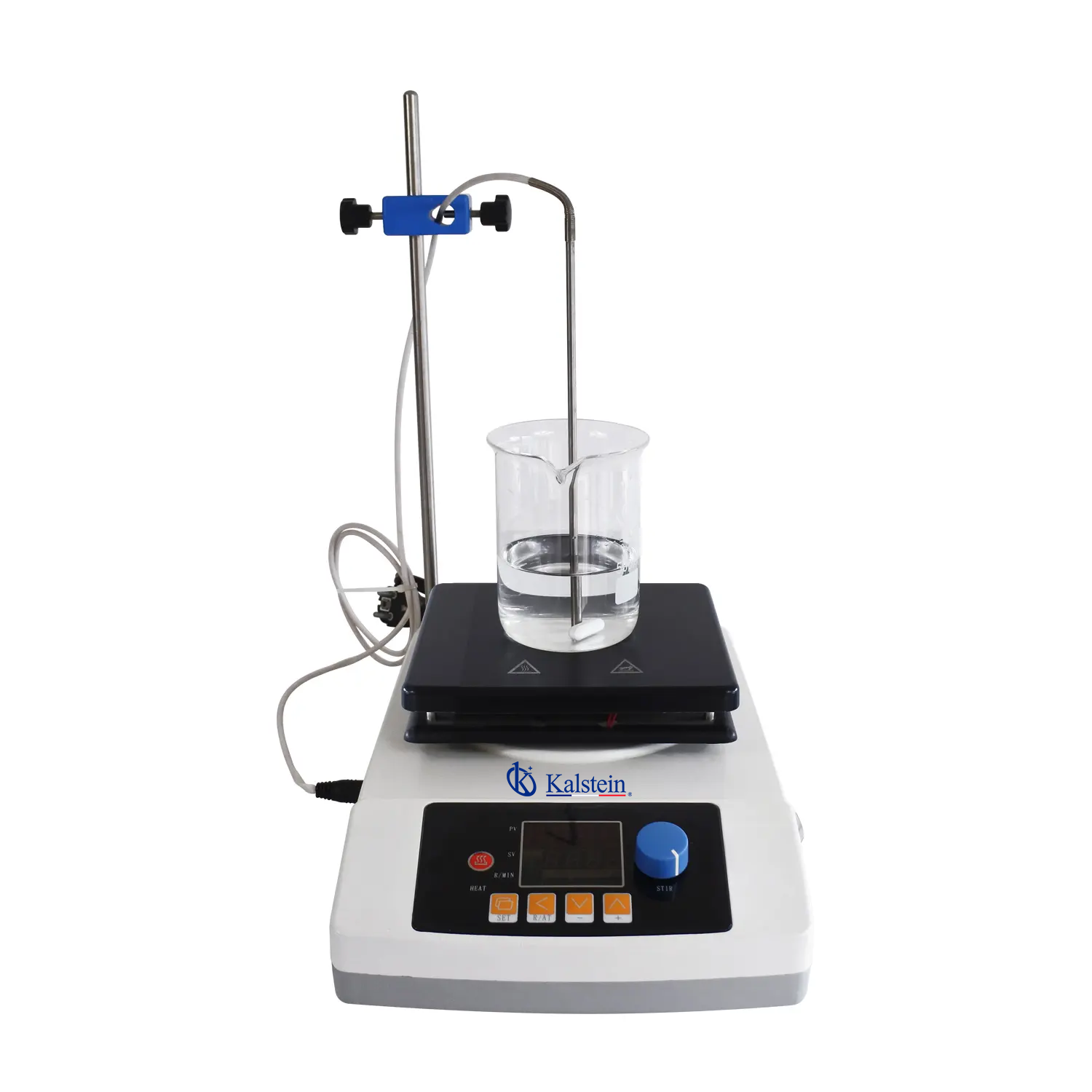

Troubleshooting Common Issues with the YR02939 Hotplate Stirrer
The YR02939 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a versatile and efficient tool commonly used in laboratories for mixing and heating various substances. Despite its robust design and advanced features, users may encounter some issues during operation. This comprehensive troubleshooting guide focuses on common symptoms associated with the YR02939 model, provides probable causes, and offers effective solutions to enhance your laboratory experience.
Understanding the YR02939 Hotplate Stirrer
The YR02939 model is designed with a ceramic top that ensures even heat distribution, making it ideal for various laboratory applications. It features a digital display for temperature and speed control, with adjustable settings ranging from room temperature to 380°C and stirring speeds from 100 to 1800 RPM. The robust aluminum housing is resistant to corrosion, increasing its durability in laboratory environments.
Technical Specifications of the YR02939
| Model | YR02939 |
|---|---|
| Volume | 10L |
| Heating Plate (mm) | 230 x 230 |
| Heating Power (W) | 750 |
| Heating Plate Material | Ceramic-coated aluminum (white or black) |
| Temperature Range | Room Temperature to 380 °C |
| Mixing Speed | 100-1800 RPM |
| Temperature Control | Automatic PID control |
| Temperature Display (°C) | Digital LCD display |
| Temperature Accuracy | +/- 1 °C |
| Thermocouple Sensor | PT100, with internal and external thermocouple |
| Allowed Working Temperature | Room Temperature to 40 °C |
| Voltage | 220V / 110V Optional |
| Dimensions (mm) | 500 x 400 x 350 |
| Weight (Kg) | 7.5 |
Troubleshooting by Symptom
When using the YR02939 Hotplate Stirrer, various symptoms may arise. Below, we categorize these symptoms, their probable causes, and solutions in a symptom-causes-solutions table.
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check connection and ensure the outlet is functioning. |
| Error code E-03 displayed | Overheating | Allow the device to cool down before use; check for proper ventilation. |
| Inconsistent stirring | Improper load distribution | Ensure that the liquids are evenly distributed in the container. |
| Temperature fluctuates | Faulty thermocouple | Inspect and potentially replace the thermocouple sensor. |
| Heating plate cracked | Physical damage | Replace the heating plate or contact customer support for assistance. |
Common Setup Mistakes
When setting up the YR02939, users may encounter common pitfalls that could affect performance. Here are a few mistakes to avoid:
- Not leveling the device: Ensure the hotplate is on a flat surface for optimal operation.
- Improper power source: Verify the voltage specifications match your outlet before connecting.
- Ignoring maximum capacity: Do not exceed the 10L volume limit to avoid overflow or damage.
- Incorrect temperature settings: Always double-check the temperature settings before starting an experiment.
Frequently Asked Questions
What should I do if the YR02939 does not heat up?
If the YR02939 does not heat up, first check the power connection and ensure that the device is turned on. If the power supply is functioning, verify the temperature setting and make sure it is above room temperature. If the issue persists, inspect the thermocouple for faults.
How can I prevent error codes on my YR02939 Hotplate Stirrer?
To prevent error codes, ensure proper load distribution, avoid overheating by monitoring the temperature, and regularly maintain the device by checking the thermocouple and connections.
What is the maximum volume for the YR02939 Hotplate Stirrer?
The maximum volume for the YR02939 Hotplate Stirrer is 10 liters. Exceeding this limit may lead to poor performance or damage to the device.
How do I clean the ceramic top of the YR02939?
To clean the ceramic top, first ensure the device is powered off and cooled down. Use a soft cloth with a mild detergent to wipe the surface carefully. Avoid abrasive materials that may scratch the ceramic coating.
Can the YR02939 be used in a fume hood?
Yes, the YR02939 Hotplate Stirrer is suitable for use in a fume hood. Ensure proper ventilation and safety measures are in place, particularly when heating volatile substances.
What maintenance does the YR02939 require?
Regular maintenance for the YR02939 includes cleaning the ceramic top, checking for wear on the thermocouple, ensuring electrical connections are secure, and inspecting the heating plate for cracks or damage.
Where can I find replacement parts for the YR02939?
Replacement parts for the YR02939 can typically be acquired through authorized distributors or directly from the manufacturer. It is recommended to consult the product manual for specific part numbers.
If you are experiencing issues with your YR02939 Hotplate Stirrer, refer back to this guide for symptoms, probable causes, and solutions. If further assistance is needed, do not hesitate to reach out to our support team.
