Troubleshooting Common Errors of the YR02941 Hotplate Stirrer: Solutions by Symptom

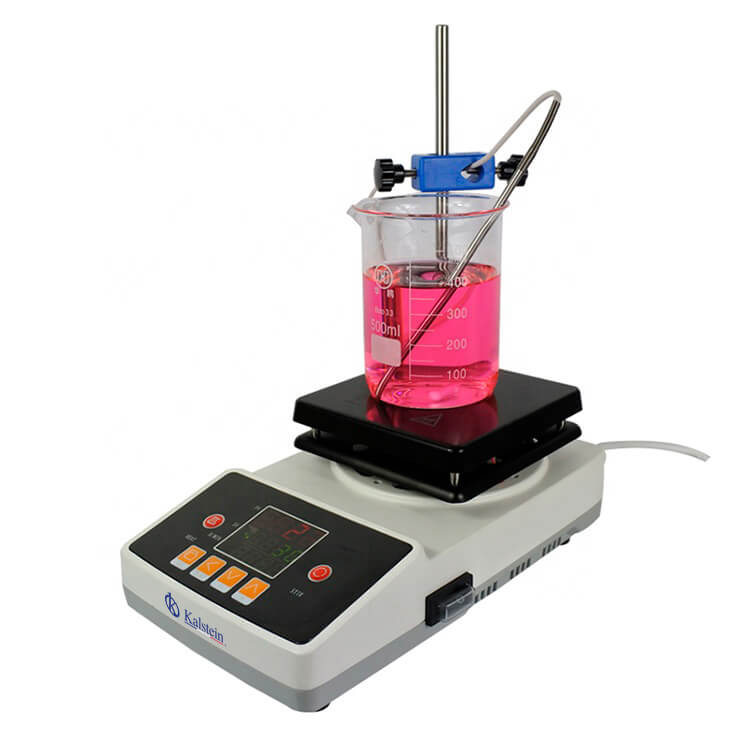

The YR02941 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a reliable tool widely used in laboratories for mixing and heating solutions. However, like any sophisticated equipment, it may encounter certain errors during operation. This article serves as a comprehensive troubleshooting guide, helping users identify common symptoms, probable causes, and effective solutions specific to the YR02941 model.
Technical Specifications of the YR02941
| Specification | Details |
|---|---|
| Model | YR02941 |
| Temperature Control | Automatic PID Control |
| Speed Range | 100-1800 RPM |
| Maximum Plate Temperature | 325°C |
| Plate Dimensions | 140 x 140 mm (5.51 x 5.51 inches) |
| Material | Ceramic |
| Power Supply | 160-240V or 110-130V |
| Weight | 3.5 kg |
Common Symptoms and Troubleshooting Solutions
Equipment Does Not Power On
This symptom may indicate several issues ranging from power supply problems to internal failures.
- Probable Cause: Faulty power cord or connection.
- Diagnostic Steps: Check power connections and replace the power cord if damaged.
- Solution: Ensure the outlet is functional and try a different socket if necessary.
Error Code E-03 Displayed
Error code E-03 typically relates to issues with temperature control.
- Probable Cause: Sensor malfunction or failure.
- Diagnostic Steps: Inspect the PT100 sensor for any visible damage.
- Solution: Replace the defective temperature sensor to restore functionality.
Inconsistent Speed Readings
Users may experience irregularity in the stirring speed, leading to ineffective mixing.
- Probable Cause: Motor issues or incorrect settings.
- Diagnostic Steps: Verify the speed setting and test with different liquid viscosities.
- Solution: Adjust the parameters and ensure that the load is within the specified capacity (50 mL - 2 L).
Hotplate Not Heating Up
If the hotplate fails to reach the desired temperature, it can disrupt experiments.
- Probable Cause: Heating element failure or incorrect PID settings.
- Diagnostic Steps: Check the heating element for continuity with a multimeter.
- Solution: Replace the heating element if it is non-functional, and recalibrate the PID settings as necessary.
Unusual Noise During Operation
Excessive noise may indicate internal mechanical issues.
- Probable Cause: Worn-out motor bearings.
- Diagnostic Steps: Listen for grinding sounds and check the motor assembly.
- Solution: Lubricate the motor bearings or replace the motor if noise persists.
Symptom-to-Cause-to-Solution Table
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Faulty power cord | Check connections and replace the cord |
| Error Code E-03 | Sensor malfunction | Inspect and replace the PT100 sensor |
| Inconsistent Speed Readings | Motor issues | Verify settings and adjust load |
| Hotplate Not Heating Up | Heating element failure | Replace heating element and calibrate PID |
| Unusual Noise | Worn-out motor bearings | Lubricate or replace motor |
Frequently Asked Questions
What should I do if the YR02941 hotplate stirrer displays an error code?
If you encounter an error code, refer to the troubleshooting section for the specific error. Most error codes can be resolved by following the outlined diagnostic steps and solutions.
How can I ensure accurate temperature control with the YR02941?
To ensure accurate temperature control, regularly calibrate the PID settings and monitor the sensor for malfunctions. Always operate within the recommended temperature range.
What is the maximum load capacity for the YR02941 hotplate stirrer?
The maximum load capacity for the YR02941 is between 50 mL and 2 L, which should be adhered to, ensuring the effectiveness of mixing and heating processes.
How do I clean the ceramic surface of the YR02941?
To clean the ceramic surface, use soft, non-abrasive cleaning agents. Avoid harsh chemicals that could damage the ceramic material. Ensure the hotplate is cooled down before cleaning.
What are the common accessories compatible with the YR02941?
Common accessories include glass stir bars of varying sizes, additional temperature sensors, and compatible heating elements that can enhance the functionality of the YR02941.
Is there a warranty for the YR02941 hotplate stirrer?
Yes, the YR02941 typically comes with a standard warranty. It is advisable to review the warranty terms at the time of purchase to understand coverage and duration.
How can I request a quote for the YR02941 hotplate stirrer?
You can request a quote for the YR02941 hotplate stirrer through our customer service channels or online inquiry forms provided on our website.
