Troubleshooting Common Errors on the YR05152: Symptoms and Solutions
In the realm of medical diagnostics, the YR05152 Color Doppler Ultrasound represents a pivotal tool for clinicians and healthcare professionals. However, as with any sophisticated equipment, users may encounter various operational challenges. This article systematically addresses these challenges through a focused lens on troubleshooting common errors based on specific symptoms.
Understanding the YR05152: Importance of Troubleshooting

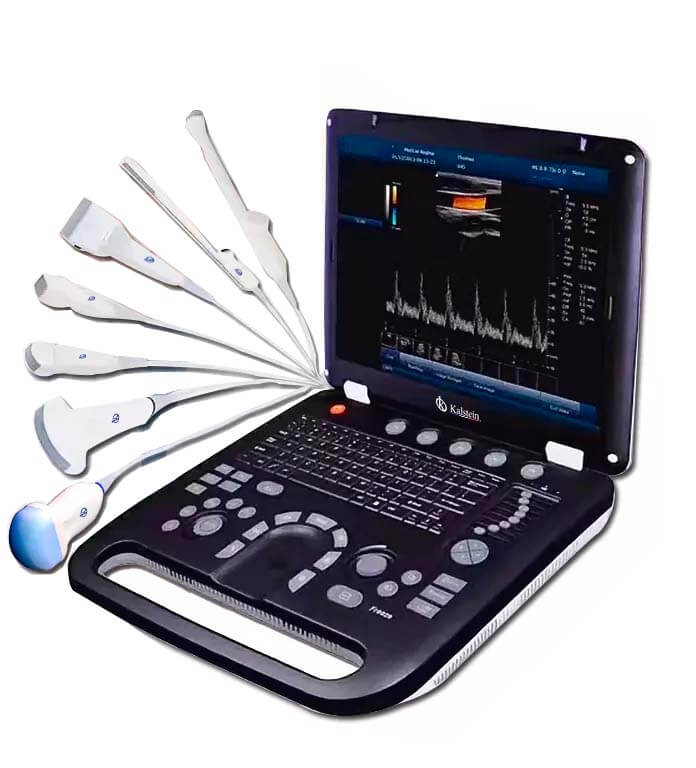

The YR05152 Color Doppler Ultrasound is designed for heart testing and pregnancy monitoring, equipped with a 15-inch LED screen and advanced imaging capabilities. Effective troubleshooting not only enhances the lifespan of the equipment but also ensures reliable diagnostics. By understanding the symptoms of errors, users can swiftly identify and rectify issues.
Technical Specifications Table for YR05152
| Model | Brand | Category | Subcategory | Price (USD) |
|---|---|---|---|---|
| YR05152 | Kalstein | Ultrasound Scanner | Ultrasonic Color Doppler Diagnostic System | 6500.00 |
| Gross Weight | 14.5 kg | Dimensions |
Common Symptoms and Troubleshooting Techniques
Equipment Does Not Power On
This is one of the most alarming symptoms. If the YR05152 fails to power on, check the following possibilities:
- Power Source: Ensure that the device is connected to a functioning power outlet.
- Cable Damage: Inspect the power cable for any signs of wear or damage.
- Fuse Check: Some models have an internal fuse that may need to be replaced.
To troubleshoot, follow these steps:
- Verify the outlet is operational by plugging in another device.
- Examine the power cable visually and replace if damaged.
- Consult the manual for fuse replacement instructions.
Error Code E-03
Error code E-03 can indicate a malfunction in the transducer connection or an internal hardware issue. Here’s how to address it:
- Transducer Connection: Check if the transducer is securely connected to the main unit.
- Reboot the System: Sometimes, a simple reboot can clear temporary faults.
Steps to resolve:
- Disconnect and reconnect the transducer, ensuring it clicks into place.
- Power off the unit, wait for 30 seconds, and restart.
Inconsistent Readings
Obtaining inconsistent readings during scans can be frustrating. Consider the following:
- Calibration: The equipment may require recalibration.
- Probe Positioning: Incorrect positioning can lead to inaccurate data.
To troubleshoot:
- Refer to the calibration section of the manual for guidance.
- Ensure the probe is positioned correctly over the target area.
Symptom-Cause-Solution Matrix
| Symptom | Possible Causes | Solutions |
|---|---|---|
| Equipment does not power on | Power source issues, cable damage, blown fuse | Check outlet, inspect cable, replace fuse |
| Error Code E-03 | Transducer connection issue, internal hardware fault | Reconnect transducer, reboot the system |
| Inconsistent readings | Calibration needed, incorrect probe positioning | Recalibrate, reposition probe |
Frequently Asked Questions
What should I do if the YR05152 displays an error code?
Each error code on the YR05152 corresponds to specific issues outlined in the user manual. Refer to the manual to identify the error code meaning and follow recommended troubleshooting steps.
How often should the YR05152 be calibrated?
Calibration frequency depends on usage, but it is generally recommended to calibrate the YR05152 every six months or after significant repairs to maintain accuracy.
What are the common symptoms to look for when troubleshooting the YR05152?
Common symptoms include failure to power on, error codes, and inconsistent readings. Addressing these promptly can prevent further complications.
Can I replace internal components of the YR05152 myself?
While some components are user-serviceable, it's advisable to consult a qualified technician for internal repairs to avoid voiding the warranty.
What maintenance is required for the YR05152?
Regular maintenance includes keeping the equipment clean, checking cables for damage, and ensuring proper calibration to maintain performance.
How can I extend the lifespan of the YR05152?
To extend the lifespan of the YR05152, ensure proper usage protocols, regular maintenance, appropriate storage conditions, and timely calibration.
Where can I get replacement parts for the YR05152?
Replacement parts can be obtained from authorized suppliers or directly from the manufacturer. Always ensure compatibility with your model.
