Troubleshooting Common Errors for the YR05191 Freeze Dryer: A Comprehensive Guide
The YR05191 freeze dryer is an essential piece of laboratory equipment used across various sectors, including medicine, pharmaceuticals, and biological research. However, like any advanced machinery, it can encounter operational issues. Understanding common symptoms, their probable causes, and effective solutions is vital for maintaining optimal performance. This comprehensive guide delves into frequent errors associated with the YR05191 and provides actionable troubleshooting strategies.
Understanding the YR05191 Freeze Dryer

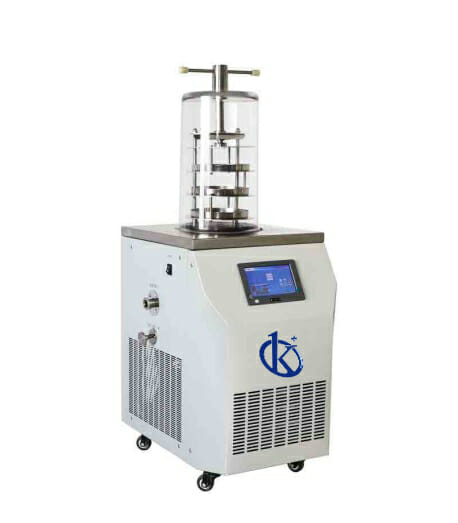

The YR05191 freeze dryer operates by removing moisture from materials without compromising their biochemical integrity. This process, known as lyophilization, is crucial for preserving sensitive samples. Key features include a 7-inch touch screen, a large opening siphon for pre-freezing, and a flexible vacuum unit. Ensuring familiarity with its operation and potential issues will enhance troubleshooting efforts.
Technical Specifications of the YR05191
| Model | YR05191 | YR05192 | YR05193 |
|---|---|---|---|
| Freeze Area | 0.08m² | 0.12m² | 0.08m² |
| Panel Material (10 mm Thickness) | 0.8L | 1.2L | 0.8L |
| Tray Material | Ф180mm 3 Layers | Ф200mm 4 Layers | Ф180mm 3 Layers |
| Distance Between Plate Materials | 70 mm | ||
| Cold Trap Temperature | ≤ -56°C (no load), optional ≤ -80°C (no load) | ||
| Water Capture Capacity | 3-4kg/24h | ||
| Final Vacuum | ≤ 5pa (no load) | ||
| Power | 970 W | ||
| Host Weight | 62 KG | ||
| Central Unit Dimensions | 580×500×1210mm | 580×500×1185mm | 580×500×1260mm |
Troubleshooting Symptoms for the YR05191 Freeze Dryer
When operating the YR05191, users may encounter specific symptoms indicating issues. Here, we outline frequent errors, their probable causes, and solutions.
1. Equipment Does Not Power On
This issue can arise from several factors such as power supply problems, faulty connections, or internal malfunctions. Begin by checking the power source and ensuring the unit is correctly plugged in. If the power supply is functional, inspect the power cord for damage. If these steps do not resolve the issue, further investigation into internal components may be needed.
2. Error Code E-03 Appears
Error code E-03 generally indicates a temperature sensor malfunction. This may be due to improper calibration or a defective sensor. To troubleshoot, start by recalibrating the unit according to the user manual. If recalibration does not work, inspect the sensor connections for any visible damage or loose wiring.
3. Inconsistent Readings
Inconsistent temperature or pressure readings can lead to unreliable results. Possible causes include sensor misplacement or calibration issues. First, ensure that all sensors are correctly placed, and perform a thorough calibration. Regular maintenance checks can help prevent this issue.
4. Excessive Frost Accumulation
Frost build-up in the cold trap can impede performance. This usually indicates that the unit is not reaching optimal freeze or vacuum levels. Verify that the cold trap is clean and the temperature settings are accurate. Also, ensure that the vacuum pump is functioning correctly.
5. Slow Lyophilization Process
A prolonged lyophilization process can result from inadequate vacuum pressure or improper sample load. Check the vacuum settings and ensure they are within recommended limits. Additionally, avoid overloading the freeze dryer, maintaining an optimal sample thickness.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power supply issues, faulty connections | Check power source, inspect power cord |
| Error Code E-03 | Temperature sensor malfunction | Recalibrate unit, inspect sensor connections |
| Inconsistent Readings | Sensor misplacement, calibration issues | Verify sensor placement, perform calibration |
| Excessive Frost Accumulation | Inadequate vacuum pressure | Clean cold trap, check vacuum pump |
| Slow Lyophilization Process | Improper vacuum pressure, sample load | Check vacuum settings, avoid overloading |
Frequently Asked Questions
What should I do if my YR05191 freeze dryer does not turn on?
Begin by ensuring the device is plugged in and the power outlet is functional. Check the power cable for any visible damage. If these steps do not resolve the issue, you may need to consult the manual for internal troubleshooting steps.
How can I troubleshoot error code E-03 on the YR05191 freeze dryer?
Error code E-03 typically indicates a problem with the temperature sensor. To address it, recalibrate the unit according to the user manual. If the error persists, inspect the sensor and its connections for defects.
What causes inconsistent readings in the YR05191 freeze dryer?
Inconsistent readings can result from sensor misplacement or inadequate calibration. Ensure that all sensors are correctly positioned and perform a calibration check to restore accuracy.
Why is there excessive frost accumulation in my freeze dryer?
Frost build-up usually indicates that the cold trap is not functioning correctly. Clean the cold trap and verify that the temperature settings are accurate. Also, check that the vacuum pump is working efficiently.
How can I speed up the lyophilization process in the YR05191?
To enhance the lyophilization speed, ensure that the vacuum pressure is set correctly and avoid overloading the dryer with samples. Proper loading will help maintain optimal processing conditions.
What maintenance steps should I take for the YR05191 freeze dryer?
Regular maintenance includes cleaning the cold trap and checking the vacuum pump and temperature sensors. Ensure calibration is performed periodically to maintain accuracy.
