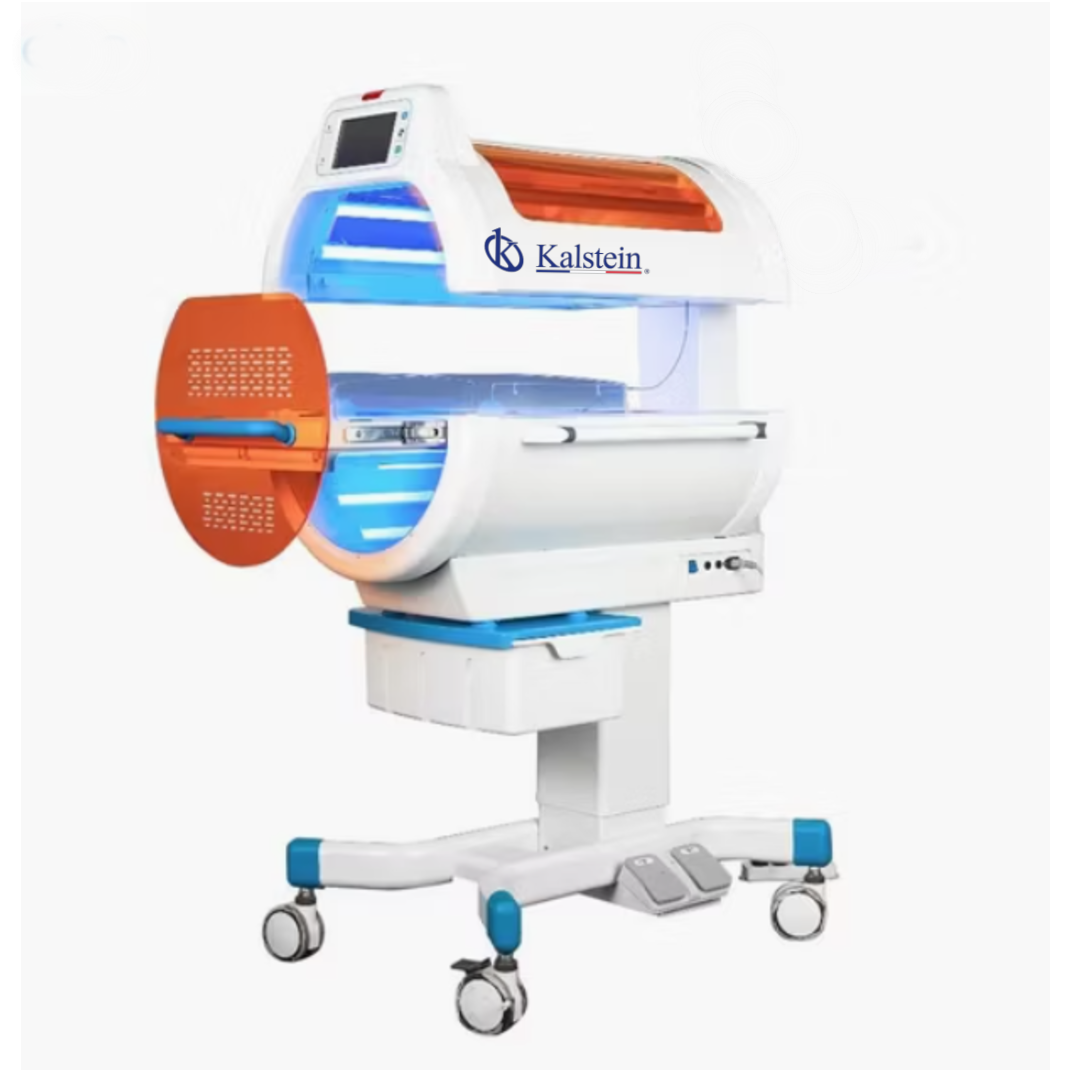

Troubleshooting Common Issues with the YR06671 Tunnel Phototherapy System
The YR06671 Tunnel Phototherapy System is a sophisticated medical device designed to treat jaundice in newborns effectively. While this equipment is engineered for reliability, operators might encounter various issues during operation. In this article, we will delve into some common problems, their symptoms, probable causes, and solutions to ensure that the YR06671 operates at its peak performance.
Understanding the YR06671 and Its Importance in Neonatal Care
The YR06671 Tunnel Phototherapy System employs advanced technology to treat neonatal jaundice, a condition characterized by an excess of bilirubin in the blood which can lead to serious health complications. By utilizing LED light within the 400nm to 550nm wavelength range, the system effectively reduces bilirubin levels, ensuring a swift recovery for neonates. Understanding its operational nuances is crucial for healthcare professionals who use this technology.
Technical Specifications of the YR06671
Model | YR06671 |
Light Source | LED (Light Emitting Diode) |
Effective Wavelength | 400nm - 550nm |
Irradiance Intensity | Adjustable (33%, 66%, 100%) |
Maximum Irradiance (Upper) | 3600 μw/cm² |
Maximum Irradiance (Lower) | 3200 μw/cm² |
Effective Irradiation Area | 400mm x 250mm |
Uniformity of Irradiation | > 0.4 |
Elevation Lift Range | 0 - 200mm |
Power Supply | AC 100V - 240V |
Power Consumption | ≤ 250VA |
Safety Alarms | Temperature, Treatment End, Bed Extraction |
Dimensions of Packaging | 98 x 65 x 115 cm (Approx. according to industrial standards) |
Weight of Equipment | Approx. 65 kg (Net) / 85 kg (Gross with packaging) |
Troubleshooting Common Symptoms
If operators are to maximize the utility of the YR06671, it is essential to be proficient in diagnosing issues. Below we discuss common symptoms, their potential causes, and solutions.
Equipment Does Not Power On
This issue is critical and must be addressed immediately to ensure patient safety. If the YR06671 does not power on, check the following:
- Ensure the power cord is securely connected to both the device and the power outlet.
- Check the power outlet for functionality using another device.
- Inspect the circuit breaker to ensure it has not been tripped.
Error Code E-03
Error code E-03 typically indicates a malfunction in the temperature sensor system. To resolve this:
- Restart the device to reset the error.
- Inspect the temperature sensor for damage or disconnection.
- If the issue persists, consult the technical manual for further instructions.
Inconsistent Light Output
Inconsistent light output can lead to ineffective treatment. Follow these steps to rectify:
- Ensure the LEDs are free of dust and debris.
- Check the intensity settings; adjust as necessary.
- If irregularities continue, perform a self-diagnostic check as per the user manual.
Alarm Triggered for Skin Temperature
When the device triggers an alarm due to skin temperature, it may be due to external factors. Address this by:
- Verify the placement of the temperature sensor.
- Make sure the environment does not allow for excessive temperature fluctuations.
- Recalibrate the temperature sensor if needed.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Loose cord or faulty outlet | Check connections and test outlet |
| Error Code E-03 | Temperature sensor malfunction | Restart and inspect sensor |
| Inconsistent Light Output | Dirty LEDs or incorrect settings | Clean LEDs and adjust settings |
| Alarm Triggered for Skin Temperature | Incorrect sensor placement | Verify sensor position and recalibrate |
Frequently Asked Questions
How can I extend the lifespan of the YR06671 Tunnel Phototherapy System?
To extend the lifespan of the YR06671, ensure regular maintenance, keep the device clean, and conduct periodic checks of all components. Following the operational guidelines can also enhance durability.
What should I do if the treatment is not effective?
If the treatment appears ineffective, check if the device is set to the correct irradiance level and that the neonate is positioned correctly under the light. Also, check for any obstructions or dirt on the LED surfaces.
Is there a way to calibrate the YR06671?
Yes, calibration procedures are outlined in the user manual. Regular calibration ensures that the device operates within the specified parameters for optimal treatment results.
How can I ensure the safety of my patients while using the YR06671?
To ensure safety, always monitor the neonate’s temperature, follow the recommended operating protocols, ensure proper equipment function, and respond quickly to alarms.
What unique features does the YR06671 offer compared to other phototherapy systems?
The YR06671 features 360° irradiation, an adjustable intensity setting, and a temperature control system that maintains optimal thermal conditions for the patient, ensuring both efficiency and safety during treatment.
Can I use the YR06671 for other medical treatments?
The YR06671 is primarily designed for neonatal jaundice treatment. While it may have some applications in other areas, it should only be used as recommended by medical professionals.
