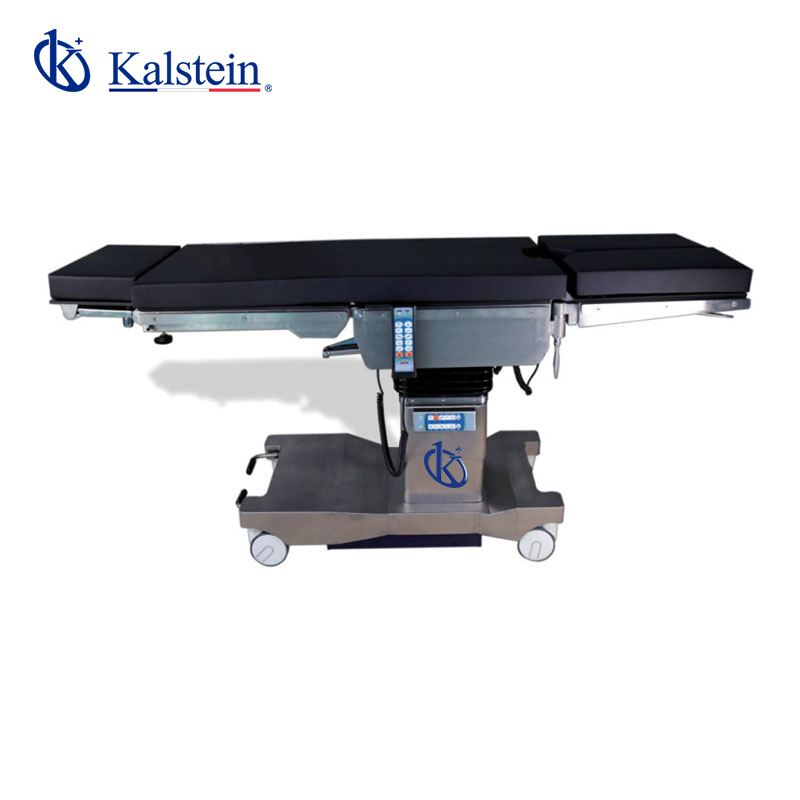

Understanding the Operating Principle and Scientific Foundations of the YR06230 Electric Operating Table
The YR06230 Electric Operating Table is designed to meet the demands of increasingly complex surgical procedures. Its advanced features and intelligent control system are vital for enhancing the surgical experience. This article delves deeply into the principles of operation and scientific foundations that make the YR06230 a cornerstone in surgical environments.
Principle of Operation: The Mechanics Behind YR06230
The YR06230 operates through a sophisticated electric motor system that allows for various adjustments to accommodate different surgical requirements. At its core, the operating table utilizes a combination of mechanical engineering and electrical control to achieve precise movements. The table can elevate, lower, and adjust its tilt, providing surgeons a versatile platform for their procedures.
One of the key mechanical principles at play is the use of a linear actuator, which allows for smooth vertical movements. This actuator converts electrical energy into linear motion, facilitating the elevation of the table from a minimum height of 700mm to a maximum of 1000mm. This range is critical for different surgical positions and procedures, ensuring optimal accessibility for surgical teams.
Technical Specifications of the YR06230
| Specification | Details |
|---|---|
| Model | YR06230 |
| Length/Width | 2100mm/550mm |
| Elevation (Up/Down) | 700mm/1000mm |
| Trendelenburg | ≥25° |
| Reverse Trendelenburg | ≥25° |
| Lateral Tilt (Left/Right) | 15°/15° |
| Head Rest (Up/Down) | 45°/90° |
| Footplate (Up/Down & Horizontal Positioning) | 90°/90°/15° |
| Back Plate (Up/Down) | 85°/20° |
| Kidney Bridge | 110mm |
| Sliding | 350mm |
| Power | 220v, 50Hz, 1.0kW |
The Role of Intelligent Control Systems
The YR06230 is equipped with an intelligent control system that enhances its operational efficiency. This system allows for automatic adjustments based on specific surgical requirements, reducing the burden on surgical teams and improving patient safety. The control panel is designed for ease of use, enabling quick changes in table positioning without disrupting the surgical workflow.
This system's design is based on feedback loops that monitor the table's position and maintain stability during procedures. This minimizes the risk of movement during critical operations, increasing the safety of both the patient and the healthcare providers. Moreover, the emergency stop feature ensures that the table can be halted immediately in case of any malfunction, further enhancing safety protocols.
Safety Features of YR06230
Safety is paramount in surgical environments, and the YR06230 includes multiple features to ensure a secure operating experience. With a maximum load capacity of 250 kg, the table is designed to support a wide range of patients while maintaining stability. The anti-static and waterproof memory foam padding adds to patient comfort and hygiene, reducing the risk of contamination during procedures.
Furthermore, the built-in backup battery ensures that the table remains operational in the event of a power failure. This feature is crucial in maintaining continuity of care, allowing surgical procedures to proceed without interruption. The standard control panel with override capability allows for safe manual control if necessary, ensuring that operators have a reliable method for controlling the table at all times.
Common Use Cases in Clinical Settings
The YR06230 is designed for versatility in surgical applications. In clinical settings, it is commonly used for general surgery, orthopedics, and gynecology. Its ability to slide longitudinally up to 350mm allows for unobstructed access to the surgical site, enhancing the surgeon’s ability to perform complex procedures without hindrance.
For instance, in orthopedic surgery, the elevation and tilt functions of the YR06230 facilitate the positioning of patients for hip or knee replacements. Similarly, in gynecological procedures, the table’s adaptability allows for optimal positioning for different surgical techniques, providing surgeons with the flexibility needed to achieve the best outcomes.
Frequently Asked Questions
What are the key features of the YR06230 Electric Operating Table?
The YR06230 Electric Operating Table features an intelligent control system, a load capacity of 250 kg, adjustable height ranging from 700mm to 1000mm, Trendelenburg and lateral tilt capabilities, and waterproof anti-static memory foam padding.
How does the YR06230 ensure patient safety during surgical procedures?
The YR06230 ensures patient safety with its sturdy design, maximum load capacity, emergency stop function, and backup battery to maintain operation during power failures, as well as its anti-static, waterproof padding to reduce the risk of contamination.
What types of surgeries are best supported by the YR06230?
The YR06230 is best suited for general surgery, orthopedics, and gynecological procedures, thanks to its adjustable positioning and stability that allow for optimal access and comfort for the surgical team.
Can the YR06230 be used in emergency situations?
Yes, the YR06230 is equipped with a backup battery that allows it to function during power outages, making it suitable for emergency surgeries where reliable equipment is crucial.
What maintenance does the YR06230 require?
Regular maintenance of the YR06230 includes checking the electrical connections, ensuring the movement mechanisms are lubricated, and inspecting the padding for wear and cleanliness to maintain hygiene and functionality.
How does the sliding feature of the YR06230 benefit surgical procedures?
The 350mm sliding feature of the YR06230 allows for unobstructed access to the surgical area, enabling surgeons to work without interference from the operating table and improving overall workflow efficiency.
Where can I find more information or request a quote for the YR06230?
You can request a quote for the YR06230 by contacting our sales team, who can provide you with detailed information and pricing options tailored to your needs.
