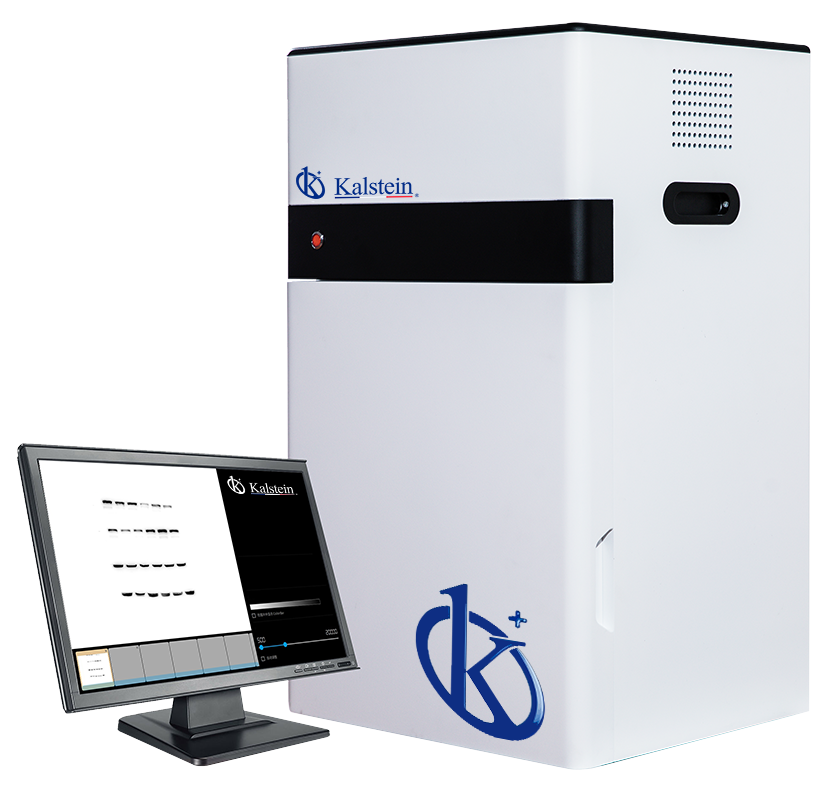

Understanding the Scientific Principles and Operation of the YR06067 Multifunctional Imaging System
The YR06067 Multifunctional Imaging System is a sophisticated piece of laboratory equipment designed to facilitate various imaging applications, such as Western blotting and other forms of gel documentation. This article delves into the principles of operation and scientific foundations underlying this innovative system, providing users with a comprehensive understanding of its functionality and capabilities.
Key Features of the YR06067 Multifunctional Imaging System
The YR06067 is equipped with a range of features that enhance its usability and adaptability for different applications:
- Wide viewing area (maximum 20x20cm)
- User-friendly interface
- Standard Western blot imaging generator with ECL
- Broad application with optional accessories
- Cooling digital camera with sensitive CCD chip
- Unlimited software, free download, and free updates
Technical Specifications of the YR06067
| Model | YR06067 (current) | YR06068 |
| Digital Camera | Cooling CCD camera | |
| Physical Resolution | 6 Megapixels, 2750*2200 | |
| Pixel Density and A/D | 16 bits | |
| Gray Scales | 65536 | |
| Dynamic Range | ≥4.6OD | |
| Cooling Temperature | -60℃ ambient, -30℃ regulated | |
| Scientific Lens (Difference between Models) | Sensitive Lens F0.95 | Ultra-sensitive Objective F0.8 |
| Chemiluminescence Sample Tray | 4 Layer | |
| UV Transmission | 302nm-312nm, area: 21x26cm | |
| White LED Transmission | Surface: 19x26cm | |
| Filter Wheel | Position Five | |
| Filter | Gel Doc Filter | |
| UV Protection | UV Shield Protection | |
| Image Acquisition Software | No dongle required, unlimited users, free update | |
| Image Analysis Software | No dongle required, unlimited users, free update | |
Scientific Principles Behind the YR06067 Imaging System
The YR06067 operates primarily on the principles of light emission and detection, leveraging advanced imaging technologies. The system is designed to capture high-resolution images through the use of a cooled CCD camera, which enhances the sensitivity and quality of the resultant images.
This imaging technique is foundational in various applications, particularly in biological research and clinical diagnostics, where precise imaging is crucial. The integration of ECL (chemiluminescence) enhances the visibility of proteins or other analytes, making detection more effective.
Application Scenarios for the YR06067
The YR06067 is versatile and can be utilized across multiple sectors. Below are some specific applications where the system shines:
- Clinical Laboratories: Ideal for analyzing protein expression and conducting Western blots.
- Educational Institutions: Useful for teaching imaging techniques and laboratory practices.
- Research Facilities: Important for experimental analysis and documentation of results.
- Industrial Settings: Employed in quality control for product testing.
Advantages of Using the YR06067
The YR06067 stands out thanks to its unique features, such as:
- High Sensitivity: The cooled CCD camera allows for lower noise levels in images, producing clearer results.
- User-Friendly Software: The unlimited software access provides flexibility for data analysis and image management.
- Wide Range of Applications: The system can be adapted for various types of imaging tasks with appropriate accessories.
Frequently Asked Questions
What are the primary features of the YR06067 Multifunctional Imaging System?
The YR06067 boasts a wide viewing area, a cooling CCD camera, a standard Western blot imaging generator, and user-friendly software with unlimited access and free updates.
How does the cooling feature of the YR06067 impact imaging quality?
The cooling feature reduces thermal noise in the CCD sensor, enhancing the sensitivity of the camera and allowing for better image resolution and clarity, especially in low-light conditions.
What are the applications of the YR06067 in clinical laboratories?
In clinical laboratories, the YR06067 is primarily used for Western blotting and other imaging techniques necessary for protein analysis, providing accurate documentation of protein expression.
What accessories are compatible with the YR06067?
The YR06067 can be equipped with various optional accessories to enhance its functionality, including specialized filters, lenses, and trays for chemiluminescence.
How does the dynamic range of the YR06067 affect imaging results?
The dynamic range of ≥4.6OD allows for the capture of both very faint and bright signals within the same image, providing a comprehensive view of results without loss of detail.
Can the YR06067 be used for educational purposes?
Yes, the YR06067 is an excellent tool for educational institutions, allowing students to learn sophisticated imaging techniques and laboratory protocols effectively.
How can I request a quote for the YR06067?
Interested individuals can request a quote for the YR06067 by contacting our sales team for detailed pricing and availability information.
