Nitrogen Tanks
Nitrogen tanks are essential for the safe storage and transportation of liquid nitrogen, widely used in medical, veterinary, and laboratory environments. These tanks are engineered to withstand extremely low temperatures and provide reliable containment, ensuring the integrity and safety of cryogenic substances during handling and transit.
Their applications range from preserving biological samples, vaccines, and reproductive materials, to facilitating various scientific processes that require stable cryogenic conditions. Choosing the right nitrogen tank enhances operational efficiency by minimizing nitrogen loss and ensuring optimal storage conditions for sensitive materials.
Types of Nitrogen Tanks Your Laboratory Might Need
High Capacity Series for Storage or Transportation (Round Canisters)
The High Capacity Series nitrogen tanks are designed for large volume storage and transportation of liquid nitrogen. Their robust construction and advanced insulation technology make them ideal for extended storage periods, minimizing nitrogen evaporation and ensuring consistent temperature control during transit.
These round canisters are commonly used in clinics and laboratories where substantial liquid nitrogen volume is necessary, providing a reliable solution for demanding applications. Their ergonomic design facilitates easier handling despite their large capacity.

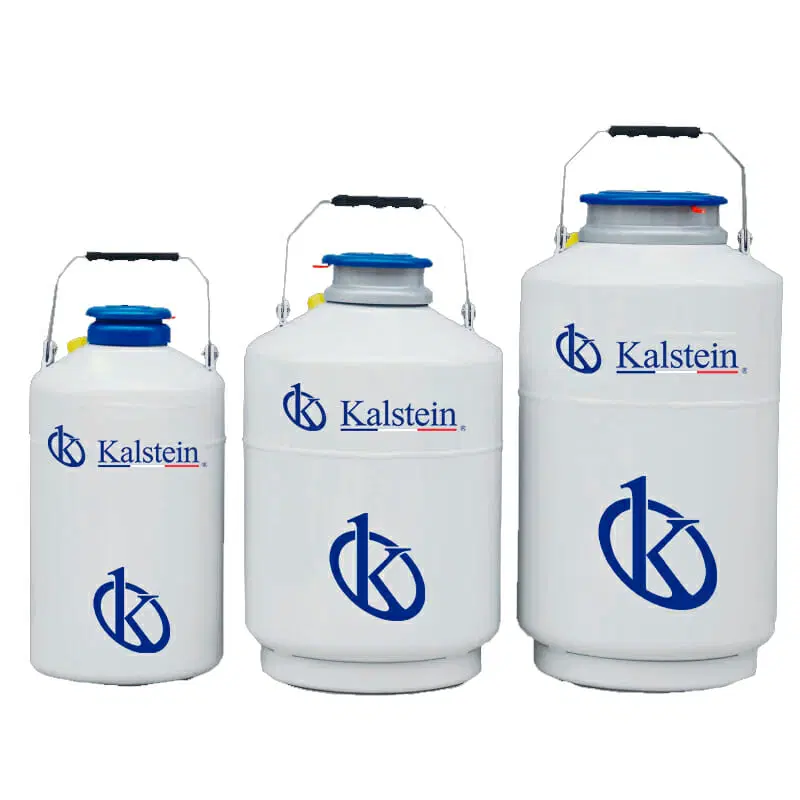

Dryshipper Series for Storage or Transportation (Round Canisters)
Dryshipper Series tanks are specialized for safe transportation and short-term storage of biological samples at cryogenic temperatures without liquid nitrogen spillage. Using absorbent material inside the canister, they eliminate risks associated with liquid nitrogen exposure during shipment.
These tanks are preferred by veterinary clinics and research laboratories for transporting sensitive samples such as embryos and vaccines, ensuring they remain within strict temperature ranges throughout the shipping process.
What You Should Know Before Selecting a Nitrogen Tank and Making an Investment?
Key Factors to Consider
When considering nitrogen tanks, critical factors involve storage capacity, portability, safety certifications, and compatibility with your facility’s nitrogen supply systems. Assessing the evaporation rate and insulation quality is essential to maintain sample integrity and optimize operational costs.
Material durability and user-friendly design also play a vital role. Tanks must guarantee safe handling to prevent accidents and must comply with relevant local regulations to ensure worker safety and legal compliance in medical or veterinary environments.
Price Range in the Market
Nitrogen tanks prices vary according to capacity, brand, and design specifications. Generally, smaller dryshipper units are more affordable, while high capacity tanks range higher due to enhanced insulation and larger volume capabilities.
Additional costs can include accessories, maintenance contracts, and optional customization for specialized applications. Buying from a trusted supplier like Kalstein ensures transparent pricing and support for long-term investment worthiness.
Quality-Price Ratio
The quality-price ratio must reflect the tank’s efficiency in preserving liquid nitrogen and durability under heavy use. Opting for tanks with proven insulation technology reduces nitrogen loss, lowering refill frequency and thus operational expenses.
Kalstein’s nitrogen tanks are engineered to balance affordability and high performance, making them a cost-effective choice for professional clinical and laboratory use.
Expected Lifespan Based on Use and Maintenance
With appropriate maintenance, nitrogen tanks can last many years, although factors like frequency of use, environmental conditions, and handling affect longevity. Regular inspection of valves, seals, and insulation integrity is crucial for sustained performance.
Kalstein provides detailed maintenance guidelines and customer support to maximize your tank’s lifespan and ensure it continues to meet your facility’s demanding requirements.
KALSTEIN NITROGEN TANKS
Among many products, at Kalstein you can find the ideal nitrogen tank for your Clinic
Not sure which nitrogen tank to buy? Selecting the right tank depends on various factors such as storage capacity, portability, and the specific needs of your facility. We guide you through the essential features to help you make an informed choice tailored to your requirements.

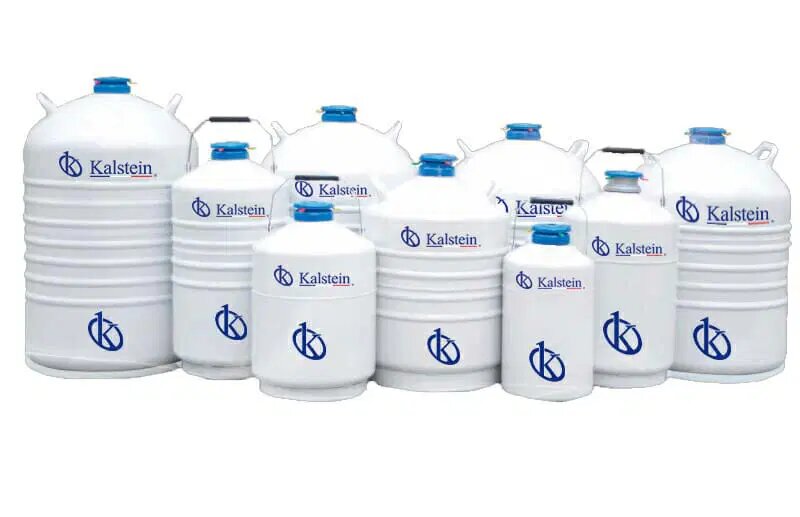

High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392
The High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392 is a robust and adaptable solutio…

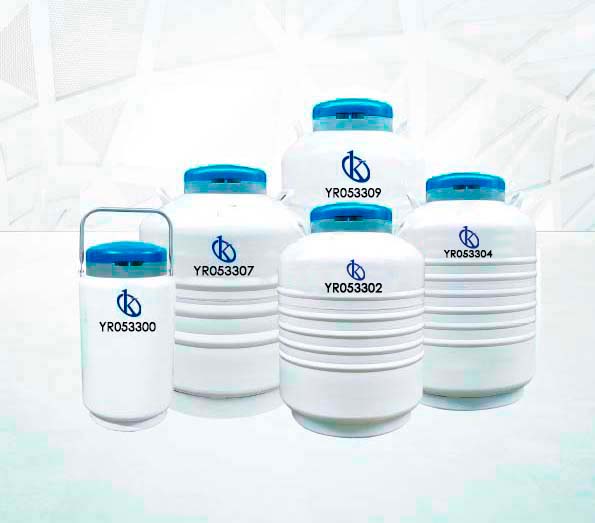

Small Sized Storage Series (Square Racks) YR05371 // YR05382
The Small Sized Storage Series (Square Racks) YR05371 // YR05382 is a highly efficient cryogenic storage solution widely…

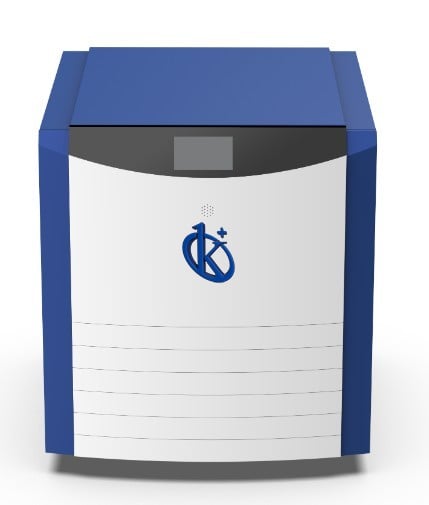

Intelligent Liquid Nitrogen Biological Container YR06703//YR06703-2 Series
The YR06703/YR06703-2 Series Intelligent Liquid Nitrogen Biological Container represents the pinnacle of cryogenic stor…
Biomedical Liquid Nitrogen Storage Solutions Dryshipper Series for Transportation (Round Canisters) YR05417 // YR05422
The Biomedical Liquid Nitrogen Storage Solutions Dryshipper Series for Transportation (Round Canisters) YR05417 // YR054…
Our nitrogen tank best seller
The High Capacity Series for Storage or Transport (Round Canisters) YR05383 // YR05392 is a robust and adaptable solution for those seeking reliable, long-term storage options. Crafted with strong yet lightweight aluminum, these canisters offer unmatched durability while ensuring easy handling. The series is perfect for biological, chemical, or laboratory environments, where secure storage of samples and substances is invaluable.
When considering the investment in high-capacity canisters, your budget can expect a range of $400 to $1200 USD. This range reflects the advanced design and performance capabilities of the product, ensuring you get significant value for money. These products are well-suited for both small-scale and industrial applications, making them a smart investment for various industries.
| Model | YR05383 | YR05384 | YR05385 | YR05386 | YR05387 | YR05388 | |
| Maximum Capacity |
No. of Canister | 3 (0) | 3 (3) | 6 (0) | |||
| No. of Straws (Single Layer) (0.5ml each canister) |
90 | 165 | 792 | ||||
| No. of Straws (Single Layer) (0.25ml each canister) |
204 | 330 | 1788 | ||||
| No. of Straws (Double Layer) (0.5ml each canister) |
— | — | — | — | |||
| No. of Straws (Double Layer) (0.25ml each canister) |
— | — | — | — | |||
| Performance | Volume of LN2 (L) | 2 | 2 | 3 | 6 | ||
| Static Evapouration* (L/Day) | 0.07 | 0.08 | 0.12 | 0.12 | |||
| Static Holding Time** (Day) | 28 | 24 | 26 | 52 | |||
| Dimensions | Opening Diameter (mm) | 30 | 35 | 50 | 50 | ||
| Height (mm) | 399 | 428 | 435 | 482 | |||
| Outside Diameter (mm) | 223 | 204 | 223 | 300 | |||
| Canister Outside Diameter (mm) | 19 | 25 | 38 | 38 | |||
| Outside Height (mm) | 120 | 120 | 120 | 120 | |||
| Empty Weight (kg) | 2.8 | 2.6 | 3.1 | 4.8 | |||
| Full Weight (kg) | 4.5 | 4.4 | 6 | 9.9 | |||
| Shipping Weight (kg) | 5.1 | 4.9 | 5.8 | 8 | |||
| Aditional Features | Includes 3 canisters, lockable cap and protective jacket |
Includes 3 canisters, lockable cap and braces for carrying, no protective jacket |
Includes 6 canisters (height 120mm), lockable cap and protective jacket |
Includes protective jacket only |
Includes 6 canisters (height 120mm), lockable cap and protective jacket |
Includes protective jacket only |
|
| Model | YR05389 | YR05390 | YR05391 | YR05392 | |||
| Maximum Capacity |
No. of Canister | 6 (0) | |||||
| No. of Straws (Single Layer) (0.5ml each canister) |
792 | 2244 | |||||
| No. of Straws (Single Layer) (0.25ml each canister) |
1788 | 5022 | |||||
| No. of Straws (Double Layer) (0.5ml each canister) |
— | — | |||||
| No. of Straws (Double Layer) (0.25ml each canister) |
— | — | |||||
| Performance | Volume of LN2 (L) | 10 | |||||
| Static Evapouration* (L/Day) | 0.12 | 0.21 | |||||
| Static Holding Time** (Day) | 86 | 48 | |||||
| Dimensions | Opening Diameter (mm) | 50 | 80 | ||||
| Height (mm) | 552 | 557 | |||||
| Outside Diameter (mm) | 300 | 300 | |||||
| Canister Outside Diameter (mm) | 38 | 63 | |||||
| Outside Height (mm) | 120 | 120 | |||||
| Empty Weight (kg) | 6.1 | 6.2 | |||||
| Full Weight (kg) | 14.5 | S | |||||
| Shipping Weight (kg) | 9 | 9.3 | |||||
| Aditional Features | Includes 6 canisters (height 120mm), lockable cap and protective jacket |
Includes protective jacket only |
Includes 6 canisters (height 120mm), lockable cap and protective jacket |
Includes protective jacket only |
|||
Analysis of key attributes ensures optimal nitrogen tank performance
Discover the Power and Potential of Nitrogen Tanks by Kalstein
Kalstein, a renowned name in the field of laboratory equipment, offers a range of exceptional Nitrogen Tanks designed to meet the diverse needs of scientific an…
Nitrogen Tanks: Safe Cryogenic Storage for Biological Samples
Nitrogen tanks are essential in laboratories that require long-term storage of biological, chemical, and medical samples under cryogenic conditions. These devic…

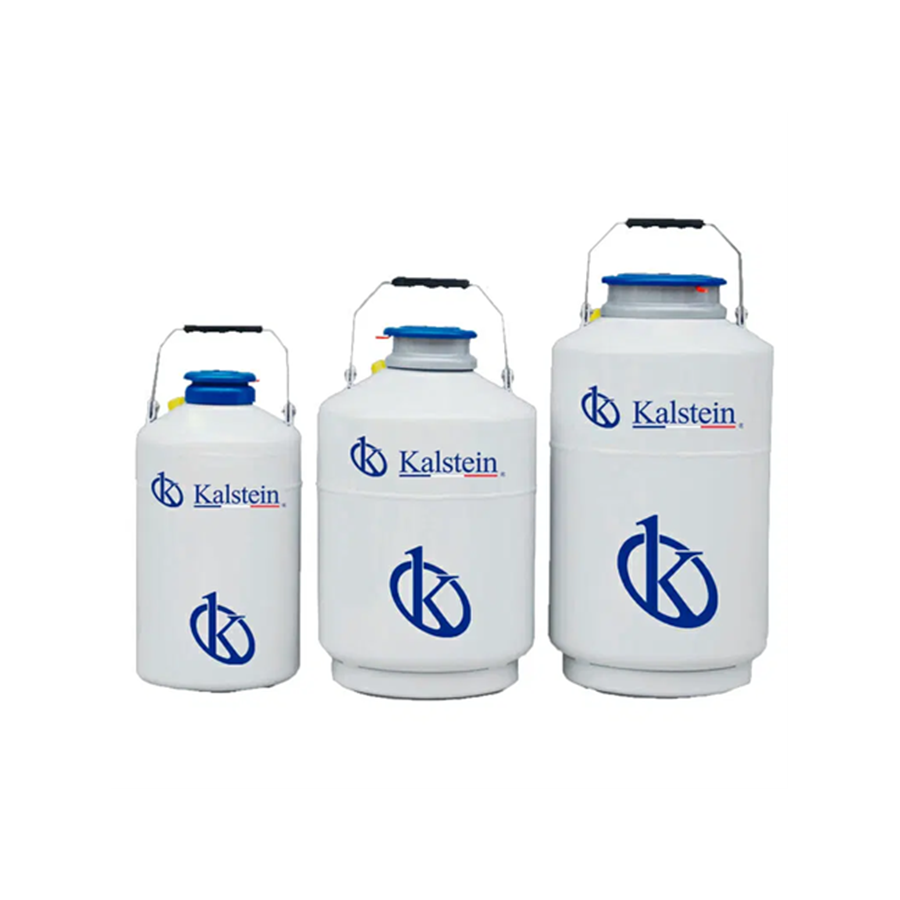

Liquid Nitrogen Tanks for Cryopreservation in Biotechnology
The use of liquid nitrogen tanks in biotechnology and scientific laboratories is essential for the cryopreservation of biological samples, from cells to tissues…
Uncovering the Latest Innovation Trends in Laboratories: A Deep Dive into Nitrogen Tanks and their Alignment with the Future
The scientific world is witnessing a significant transformation with the advent of new technologies. From innovative devices to improved techniques, a new era o…
Nitrogen tank offers
Intelligent Liquid Nitrogen Biological Container YR06703//YR06703-2 Series
High Capacity Series for Storage or Transport (Round Canisters) YR05393 // YR05402
High Capacity Series for Storage or Transport (Round Canisters) YR05403 // YR05416
Biomedical Liquid Nitrogen Storage Solutions Dryshipper Series for Transportation (Round Canisters) YR05417 // YR05422

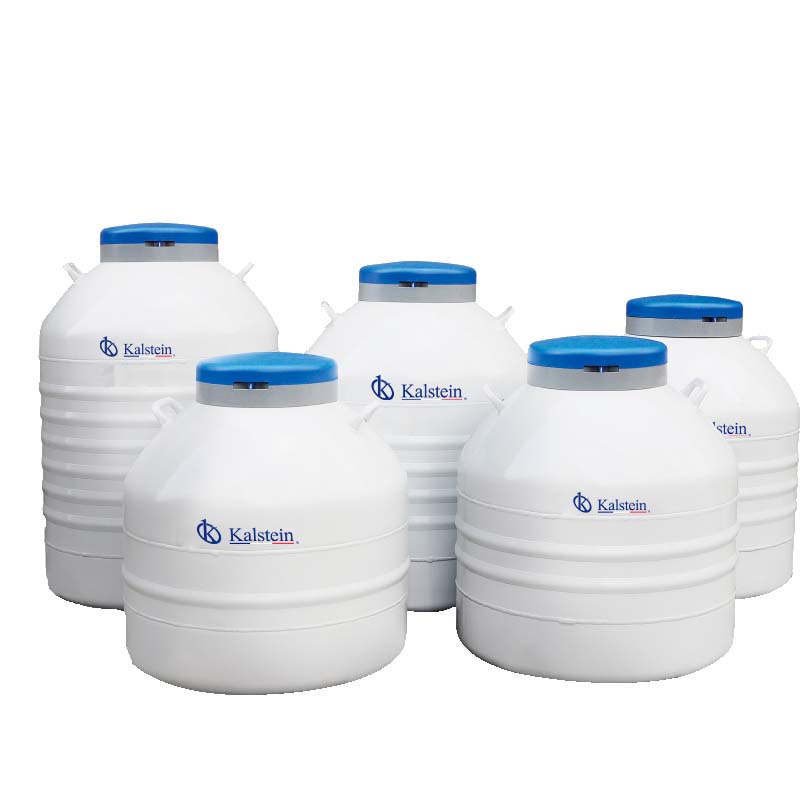

Medical Medium Sized Storage Series YR05357 // YR05364
Medical Medium Sized Storage Series YR05365 // YR05370
Small Sized Storage Series (Square Racks) YR05371 // YR05382

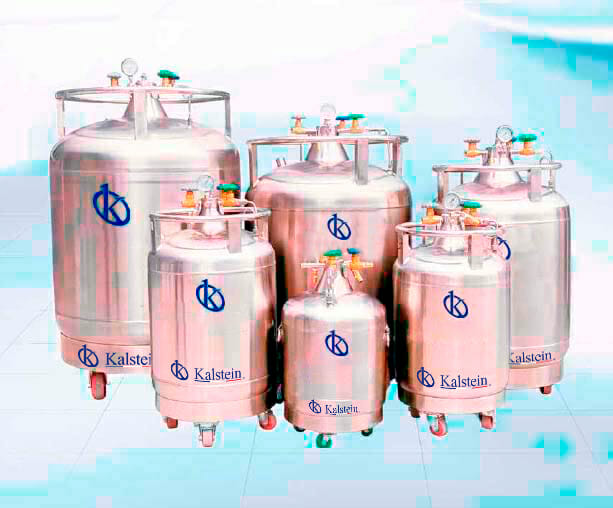

Biomedical Liquid Nitrogen Storage Solutions YR05423 // YR05437
Kalstein continually updates its nitrogen tank technologies for excellence
Explore our guides on choosing and maintaining nitrogen tanks effectively in your facility
We provide detailed guides and recommendations to help you operate nitrogen tanks like a pro, ensuring safety, efficiency, and prolonged equipment life in your medical or laboratory setting
Unraveling the Power of Nitrogen Tanks: A Definitive Guide to Optimizing Their Use and Potential Applications
Nitrogen tanks are specialized containers designed to store nitrogen at low temperatures. These tanks are incredibly versatile and find use across a m…
Demystifying Nitrogen Tanks: A Comprehensive Analysis from Design to Performance
The mastery of engineering applied to the design of nitrogen tanks is indisputable. The tanks are impeccably designed to store nitrogen in its liquid…
Trends for 2024: The Best Nitrogen Tanks for Medical Practices and Clinical Research
In an era marked by accelerated technological and scientific advancements, medicine is no exception. The implementation of best medical practices and…
From Crisis to Efficiency: A Case Study on Nitrogen Tanks as Key to Success for a Quality Medical Products Company
Kalstein, a company specialized in quality medical products, found itself in a crisis situation. Sales had decreased, and inefficiency in its production chain was gradually wearing away at profits. Production of their diagnostic imaging equipment, on…
FAQs
The delivery time for your Kalstein product will depend on the following:
- Whether the equipment of your interest is in stock or if it needs to be manufactured.
- The type of freight chosen, which can be either air or sea freight.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- Email: [email protected]
- Phone: +33 (0) 1 70 39 26 50
- E-commerce: Through the official Kalstein website in your country.
At Kalstein, we provide our clients with induction and technical support through new online methods. You can watch our induction videos, technical assistance, and guidance provided by a Kalstein team via our YouTube channel (Kalstein English). HERE.
