Description

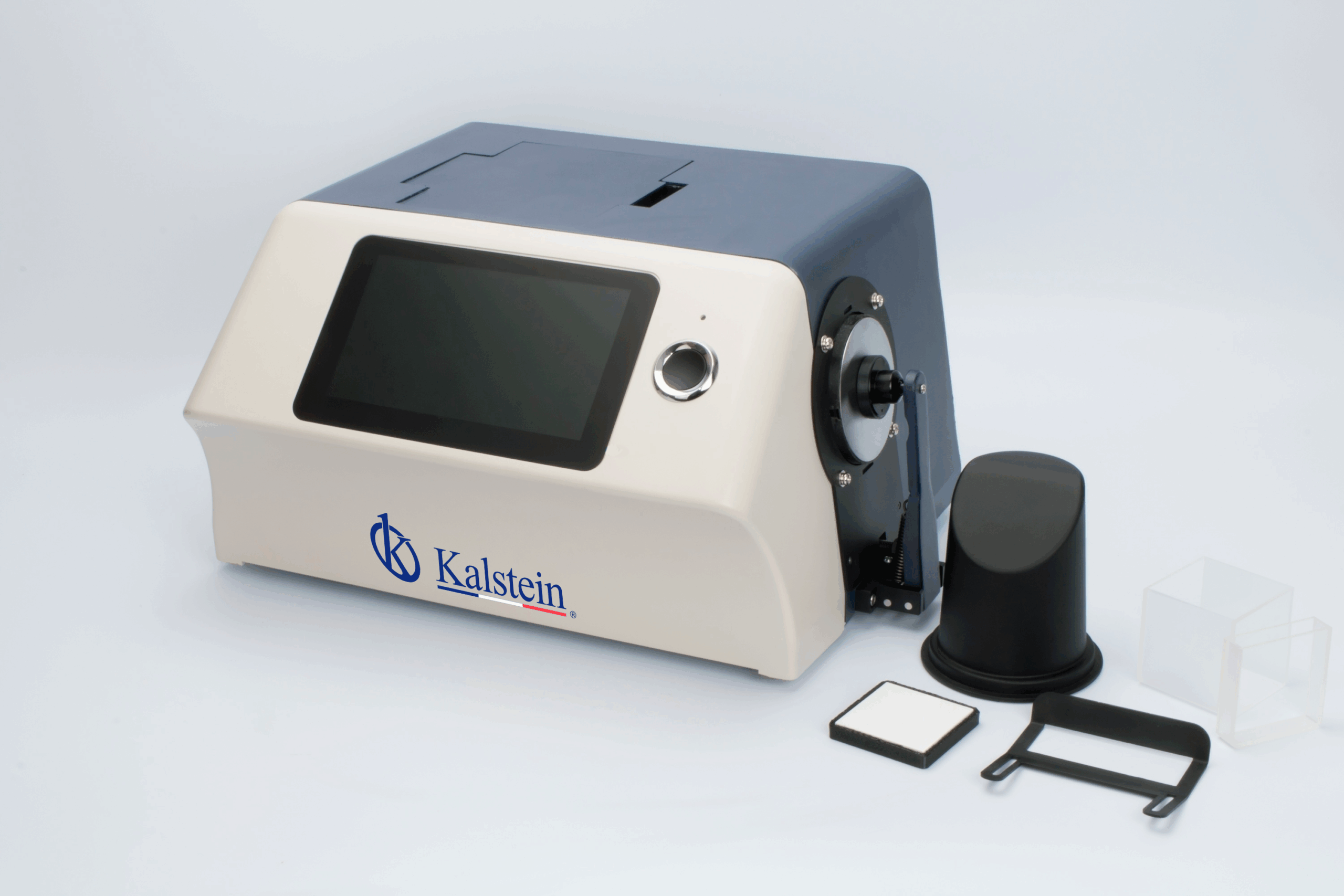

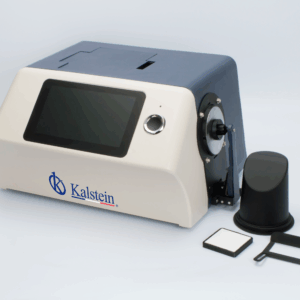

The Benchtop Color Haze Meter YR05479 is designed for precision in measuring haze, transmittance, and chromaticity in various materials such as glass, plastics, and films. With innovative patented technology and compliance with international standards CIE 15 and ASTM D1003/1044, this Kalstein instrument provides unmatched accuracy. Its full-spectrum LED light source and 256-element CMOS sensor guarantee reliable results, and a 7-inch capacitive touch screen offers intuitive interaction and real-time data display.
Market Pricing
The YR05479 haze meter is offered within a competitive price range of approximately $8000 to $8700 USD. This makes it a cost-effective option for laboratories and production environments looking to enhance quality control with precise and dependable measurements. To get a detailed quote tailored to your needs, access the Kalstein Plus platform and explore your options today.
Frequently Asked Questions
Is the YR05479 meter suitable for industrial applications? Yes, it’s engineered for both industrial and laboratory settings, especially useful for materials like plastic, glass, and packaging.
What is the data storage capacity? The device holds up to 25,000 records with 5,000 in standard mode and 20,000 in sample mode.
What indices can the YR05479 measure? It measures haze, transmittance, and various indices like Pt-Co and Gardner with top-notch precision and stability.
Advantages and Disadvantages
The YR05479 offers several advantages, including high measurement precision, adjustable light source settings (A, C, D65), and continuous monitoring for optimal results. However, its advanced technology may require regular calibration in high-use scenarios to maintain peak accuracy levels.
Field Use
Ideal for industrial processes such as display screen manufacturing, plastic processing, and pharmaceutical analysis, the YR05479 ensures precision in measuring haze and transmittance. Its LED and CMOS technology deliver consistent results, making it an invaluable asset for quality control in the production of visually critical products.
Recommendations
For optimal performance, periodically calibrate the YR05479 and store it in controlled conditions to prolong the lifespan of the LED and sensor. Its configuration allows adaptability across different sample types and color spaces, enhancing its versatility in various applications. Request a custom quote through Kalstein Plus and see how the YR05479 can elevate your quality control processes.
Features
- Patented technology for haze and transmittance measurement
- Full-spectrum LED lighting (360-780 nm) for precision
- 256-element CMOS sensor for reliable data
- 7-inch touch screen for intuitive operation
- Complies with CIE 15 and ASTM D1003/1044 standards
- Flexible calibration and measurement settings
- Wide application in industrial and laboratory environments
Technical Specifications
| YR05479 Benchtop Color Haze Meter | |
| Model | YR05479 |
| Optical Geometry | Transmittance:d/0 (diffused illumination, 0-degree viewing angle);
similar to CIE15 standard 0/0(parallel illumination, 0-degree viewing angle); Confirms to the standard of ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7 |
| Application | wildly used in the field of glass processing, plastic processing, film manufacturing, display screen processing and packaging industry, liquid pharmaceutical analysis, laboratory etc. |
| Intergrating Sphere Size | Φ154mm |
| Light Source | 360~780nm Combined LED Lamp |
| Spectral Separation Device | Concave-Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360~780nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measurement Aperture | Transmittance: Φ25.4mm |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formulas | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Data | Haze (ASTM D1003/1044)，transmittance rate T，
WI(ASTM E313，CIE/ISO,AATCC,Hunter)， YI(ASTM D1925，ASTM 313), MI(Matamerism Index )， Color Strength, Staining fastness,Color Strength, Opacity, Pt-Co index and Gardner index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Display Data | Spectral/Values, Chromaticity Values, Color Difference Values/Graph,Color Diagram, Color Simulation, Pass/ Fall Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral transmittance: for test transmission reference white within ΔE*ab 0.05% (400~700nm: within 0.04%);
Chromaticity Data: Φ25.4mm,within ΔE*ab 0.03 (after do warm-up and calibration, it is the average value to measure transmission reference white plate for 30 times at 5 second intervals) |
| Inter-instrument Agreement | Φ25.4mm,within ΔE*ab 0.15 (average value for 5 pcs standard transmittance color plates measurement ) |
| Size | 370X300X200mm(L*W*H) |
| Weight | About 9.6kg |
| Power | DC 24V,3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3,000,000 times measurement |
| Screen | 7-inch TFT Capacity Touch Screen Display |
| Interface | USB,Printing Port |
| Storage | Standard:5000; Sample:20000 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Working Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |
| Standard Accessory | Power Adapter, User Manual, QC software(please download from website), USB cable, reflectance white and black board, transmittance black board, 25.4mm aperture, transmissive test component |
| Optional Accessory | Miniature- printer |
| Note | The specifications are subject to change without notice. |
