Description
The Grating Spectrophotometer YR05493 from Kalstein is an advanced instrument designed for precise color analysis across various industries, including electronics, textiles, and food. This state-of-the-art device features three measurement apertures (φ8 mm, φ4 mm, 1×3 mm) for versatile sample adaptation. Utilizing 1000-line grating technology and a dual silicon photodiode array sensor, the YR05493 ensures consistent and accurate color measurement in the visible spectrum of 400 to 700 nm. Its ergonomic design and dual d/8 optical structure facilitate both SCI and SCE measurements, adhering to international standards such as CIE No.15 and ASTM E1164, making it perfect for quality control in both laboratory and production settings.
Market Price
The YR05493 is competitively priced in the market, ranging from approximately $9000 to $9800 USD. This spectrophotometer represents a smart investment for businesses seeking to enhance precision and efficiency in color management processes. For tailored pricing details, potential buyers can effortlessly generate a quote using the Kalstein Plus platform, ensuring a seamless purchasing experience.
Frequently Asked Questions
- What applications is the YR05493 recommended for?
This spectrophotometer is ideal for color control in plastics, textiles, ceramics, and printing, also being highly beneficial for analyzing fluorescent samples. - Is it compatible with PCs?

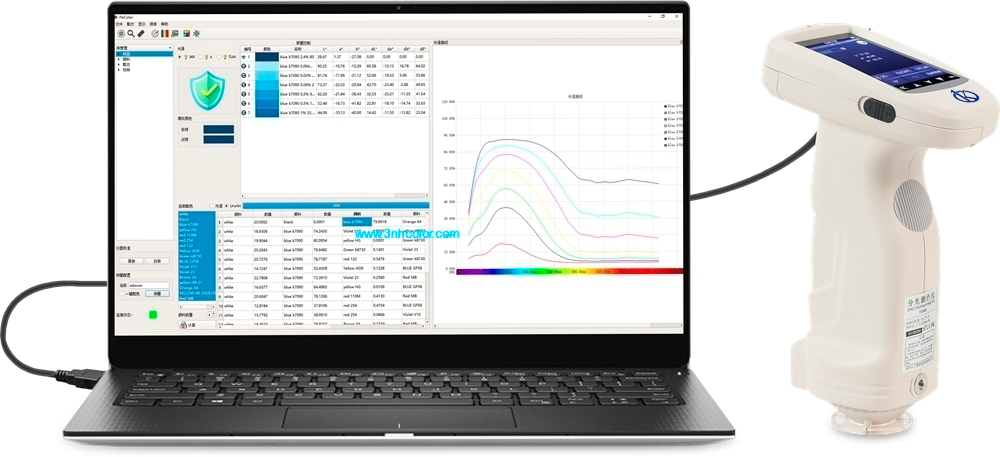

Absolutely, the YR05493 includes PC-compatible color management software, enabling comprehensive analysis and robust data management. - What is the storage capacity of the YR05493?
It can store up to 1,000 standards and 30,000 samples, which is excellent for organized and detailed record-keeping.
Advantages and Disadvantages
The YR05493 offers significant advantages, including high precision with a standard deviation of ΔE*ab of just 0.03 and adaptability with multiple apertures. It also supports various color spaces and light sources, with efficient USB and Bluetooth 4.2 connectivity for fast data transfers. However, its wavelength limitation (400-700 nm) might not suit applications needing a broader spectrum range.
Field Applications
This spectrophotometer is widely applied in industries demanding high color accuracy, like plastics, textiles, coatings, and ceramics. Its versatility in measuring both SCI and SCE modes, along with its range of apertures, ensures it meets each sample’s requirements effectively, consistently delivering reliable results. Additionally, it proves indispensable in color verification for signage products and reflective films, supporting laboratory and production line operations.
Recommendations
For optimal performance, regular calibration of the YR05493 is advised, and it should be stored in a clean, dust-free environment. Capable of completing up to 6,000 measurements within an 8-hour span on a fully charged battery, regular recharging is recommended. Discover how the YR05493 Grating Spectrophotometer can elevate your industry’s precision and efficiency in color control by requesting a personalized or automatic quote through the Kalstein Plus platform.
Features
- Optical Geometry: D/8 (diffused illumination, 8-degree viewing angle)
- Conforms to international standards: CIE No.15, ASTM E1164
- Three measurement apertures: φ8 mm, φ4 mm, 1×3 mm
- Wavelength Range: 400~700 nm
- Light Source: Full spectrum LED and UV light source
- Connectivity: USB and Bluetooth 4.2
- Large data storage capacity: Up to 1,000 standards and 30,000 samples
- Compatible with PC software for enhanced data management
Technical Specifications
| Model | YR05493 |
| Optical Geometry | D/8 (diffused illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded); Include UV / excluded UV light source | |
| Conforms to CIE No.15, GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | 3 measuring apertures for accurate color analysis and transmission in laboratory |
| It is used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement. | |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 3 apertures: MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm;LAV:1x3mm |
| LAV1x3mm: Slightly poor accuracy, can be used for color test | |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)) |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
| YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| 8° Glossiness,555 tone classification | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Spectral reflectance: MAV/SCI, Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.15 |
| (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approx 600g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Displayed Data | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.2 |
| Data Storage | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Simplified Chinese, English, traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture,1x3mm tip aperture |

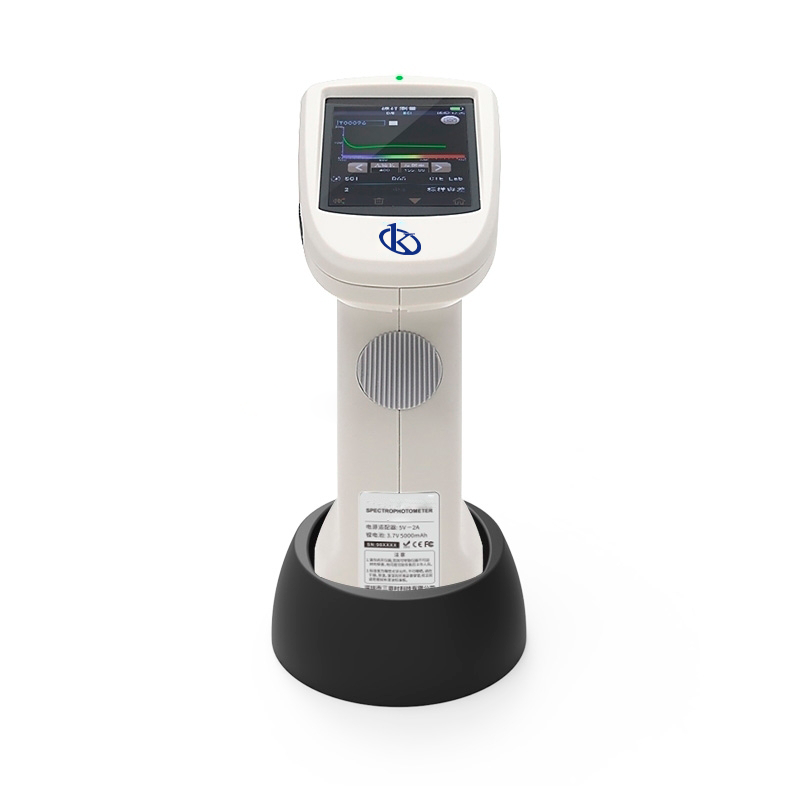

| Optional Accessory | Micro Printer, Powder Test Box, Holding base |
| Notes | The specifications are subject to change without notice. |
