Anesthesia Machines YR02197 // YR02062 // YR02063

Manufacturer: Kalstein

Product Description

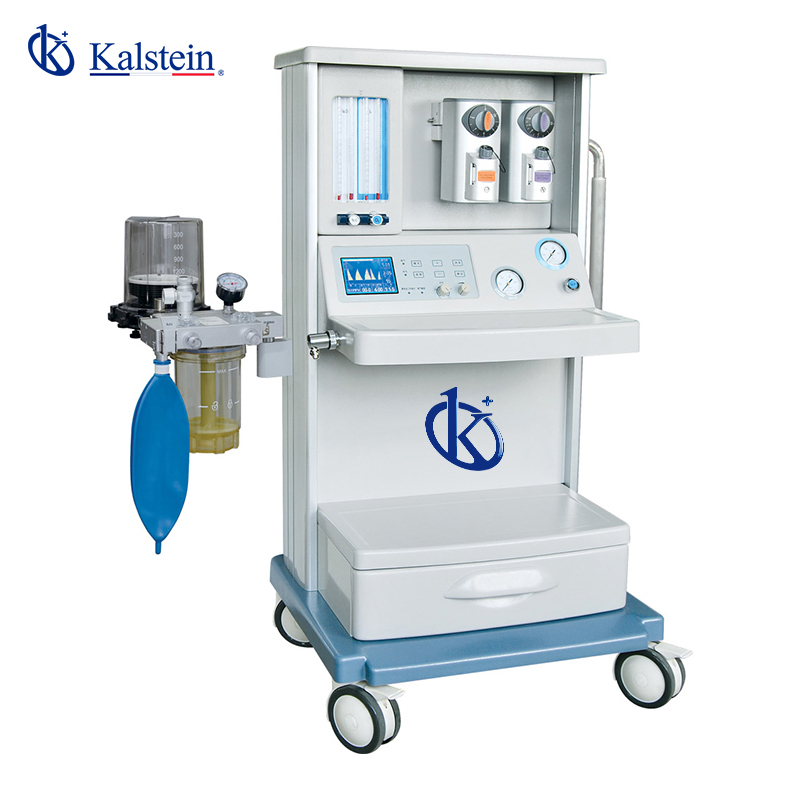

Anesthesia machine provides an affordable and flexible anesthesia solution for now and the future. Our customers can start with routine application. The anesthesia machine is upgradeable to better meet customers’ anesthetic requirements. Modern anesthetic workstation expansion is also feasible to greatly improve the workflow and cut down the operating cost. ย YR anesthesia machines can be used for inhalational anesthesia delivery and management for adult, pediatric and neonatal patients.

Technical Description
  • The anesthetic machine offers electronic PEEP function.
  • It has automatic tidal volume compensation, except Anaeston 3000C.
  • It provides a high-precision output as low as 20ml.
  • The anesthetic machine uses autoclavable and latex free components.
  • It can be easily maintained and cleaned without specialized tools.
  • ย It is CE certified, giving users peace of mind.
Model YR02197 YR02062 YR02063
Dimension 810x810x1360 mm (width x depth x height)
Weight 96 kg
Vaporizer 1 (secondary is optional)
Type of anesthetic Halothane, enflurane, isoflurane,
Gas supply Sevoflurane, Desflurane
Inlet pressure O2, o O2 + N2O, o O2 + N2O + aire
Standard ventilation. mode 280 ~ 650 kpa
Optional ventilation. mode VCV, PCV, PLV
Electronic PEEP PCV, PSV, SIMV + VCV + PS, SIMV + PCV + PS
Visual display YES
Value display (configured and measured) 8.4 โ€ณ integrated color
Graphic display Tidal volume, minute volume, respiratory rate, I: E ratio, pressure limit
Optional expansion Airway pressure (Ppeak, Pmean, Pmax, Pplateau, PEEP)
Additional functions
Built-in 8.4 “color LCD, 3 main gases -O2 * 1 / N2O * 1 / Air * 1, Manual, VCV, PCV, PLV, PSV, SIMV Built-in 8.4 “color LCD, O2 * 1 / N2O * 1, Manual / VCV / PCV / PSV / SIMV Built-in 8.4 “color LCD, 3 main gases -O2 * 1 / N2O * 1 / Air * 1, Manual, VCV, PCV, PLV, PSV, SIMV
VCV / PCV + PS, two vaporizer positions 1x Isoflurane Ohmeda Tec-7 1x Isoflurane Ohmeda Tec-7
