Turbidity Meter
A turbidimeter is a device that evaluates how cloudy a liquid is—that is, it determines turbidity. This is done through an optical analysis that allows you to measure the suspended particles in a dissolved gas or in a liquid. It uses a light source and a light detector (a photocell) fixed at a right angle to the original beam.
Turbidity is a measure of the opacity or nebulosity of a fluid. It is considered an essential analysis to determine the water quality, because it is caused by particles of different sizes and that generate an opaque appearance in the sample, and will be higher because there is a greater proportion of undissolved solids in the liquid. Although it is important to note that turbidity is a measure of the opacity of a liquid, it is not a measure of real particles.
![Turbidity Meter](https://kalstein.co.nz/wp-content/uploads/2023/05/Turbidity-Meter-290x360.jpeg)
Types of Turbidity Meter a Laboratory May Need
![lrg_Turbidity20Meter_YR01803-1.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/lrg_Turbidity20Meter_YR01803-1-250x250.jpg)
Benchtop turbidity meter YR01842
Multiparameter benchtop turbidity meter with the Total Suspended Solids measurement mode, 2 to 7 points calibration...
![lrg_Turbidity20Meter_YR01803.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/lrg_Turbidity20Meter_YR01803-250x250.jpg)

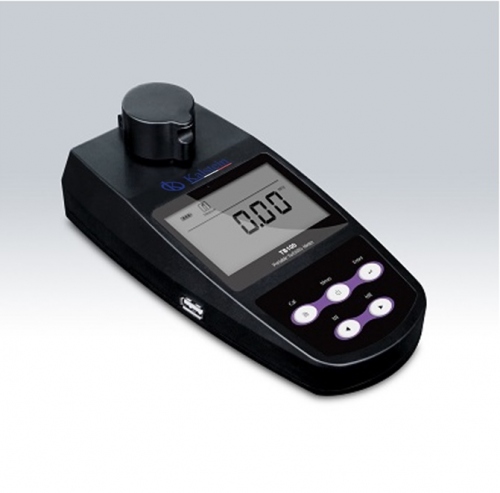

Portable turbidity meter YR01841
High-performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units. The meter is suitable for process ...
Our Best Selling Turbidity Meter
The turbidimeter shows the rate or ratio of luminous intensities, it measures both the transmission of light intensity and its dispersion. This is of vital importance for liquids that are brightly colored and for samples of high turbidity.
Model | YR01841 |
Range | 0 to 1100 NTU, 0 to 275 EBC, 0 to 9999 ASBC |
Resolution | 0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 1100 NTU) |
Accuracy | ±2% of reading (0~500 NTU), ±3% of reading (501~1100 NTU) |
Calibration Points | 2 to 5 points |
Calibration Standards | 0.02, 10, 200, 500, 1000 NTU |
Light Source | Infrared-emitting diode (850nm wavelength) |
Detector | Silicon photodiode |
Stray Light | <0.02 NTU |
Sample Volume | 30ml |
Memory | Stores up to 100 data sets |
Output | USB communication interface |
Display | Custom LCD (60×40 mm) |
Power | 3×1.5V AA batteries or DC5V power adapter |
Auto-Power Off | 15 minutes after last key pressed |
Dimensions | 180(L)×85(W)×70(H)mm |
Weight | 300g |
Order Code | Accessories |
YR01841
|
Turbidity standards 0.02, 200, 500, 1000 NTU |
Glass sample vials | |
Lint-free cloth | |
Carrying case |
![lrg_Turbidity20Meter_YR01803.jpg](https://kalstein.co.nz/wp-content/uploads/2023/05/lrg_Turbidity20Meter_YR01803-350x350.jpg)
Analysis of the best Turbidity Meters for your Laboratory
![working-in-a-biomedical-research-laboratory-2022-06-07-23-44-21-utc](https://kalstein.co.cr/wp-content/uploads/2022/08/working-in-a-biomedical-research-laboratory-2022-06-07-23-44-21-utc-scaled.jpg)
Turbidity Meter: What does it measure?
To know the degree to which water loses its transparency, it is necessary and indispensable in the quality of drinking...
![mixing substances in the lab](https://kalstein.co.cr/wp-content/uploads/2022/08/mixing-substances-in-the-lab-2021-08-26-15-42-45-utc-scaled.jpg)
Turbidity Meter What is?
Turbidity is the degree of transparency that water or any colorless liquid loses, due to the appearance of suspended particles in it. The turbidity of the liquid...
![scientist with flask making test at laboratory](https://kalstein.co.cr/wp-content/uploads/2022/08/scientist-with-flask-making-test-at-laboratory-2021-08-26-22-50-21-utc-scaled.jpg)
Turbidimeter: What are its parts?
A turbidimeter is a device used to measure the turbidity of a liquid. This instrument is capable of measuring the size...
![Experiments in the chemical laboratory. An experiment was carried out in a laboratory in transparent flasks](https://kalstein.co.cr/wp-content/uploads/2022/08/experiments-in-the-chemical-laboratory-an-experim-2021-08-29-15-33-41-utc-scaled.jpg)
How does a turbidimeter work?
A turbidimeter is a device used to measure the turbidity of a liquid, that is, it is a piece of equipment that allows evaluating ...
Turbidity Meter Model Catalog on Sale
Guides to becoming a Turbidity Meter expert
Turbidimeter – Measuring Ranges?
A turbidimeter is a piece of equipment used to measure the turbidity of a liquid. These devices can also set the size and...
Turbidimeter vs. Spectrophotometer
A turbidimeter is a laboratory equipment, portable or benchtop, that is used to measure the turbidity of a liquid. These devices ...
How should it be used ?
A turbidimeter is a device that allows evaluating how cloudy a liquid is, that is, it determines the turbidity. It does this through ...
What are the steps to use and calibrate a Turbidimeter?
A turbidimeter is an instrument used to measure suspended particles of a liquid or dissolved gas, through an optical analysis, providing reliable and accurate measurements. This equipment is used to detect particles from light sources for ultra pure water and high turbidity applications. There are several models and they are distinguished by the geometric arrangement of the light source ...
Turbidity Meter Video in Operation
In this section you can find, our Turbidity Meter in operation, packaged, receiving service, etc.
.
Turbidity Meter Operating
A turbidimeter measures suspended particles with a beam (beam source) and a light detector fixed at 90° from the original beam. The density of the particles is a function of the light reflected by the particles suspended in the detector. The amount of light reflected for a given particle density depends on the properties of the particles such as their shape, color, and reflectivity.
Turbidity can be estimated with equipment such as the spectrophotometer and the colorimeter, which can measure the decrease in transmitted light due to the blockage generated by particles. However, these measurements are not considered valid by the international regulatory bodies because they do not comply with the accepted definition of turbidity, they propose at all times the use of the turbidimeter.
