Color Light Box
Color evaluation tools have countless applications in cosmetics laboratories. First, they help scientists develop dye and pigment mixtures to match the shades of cosmetic products. This information is used to establish quality standards for cosmetics production so that products meet standards for purity, durability, color range, gloss and other market requirements. In addition, the use of color evaluation machinery is an effective way to record the use of different materials and ingredient mixtures in each cosmetic product, which is essential for safe development and production.
However, the color evaluation tool can also have some disadvantages. For example, the equipment used to evaluate color can sometimes be too expensive for some cosmetic laboratories and, therefore, many cosmetic manufacturers are not fully aware of the benefits of investing in advanced color evaluation tools. In addition, color evaluation can be too technical and complex a process for some, unless the proper steps are taken to ensure that the equipment is easy to use and that the information provided is clear and accurate.
![YR053445-YR053447-6-600x395 (1)](https://www.kalstein.be/wp-content/uploads/2023/07/YR053445-YR053447-6-600x395-1-1-300x300.png)
Types of Color Light Box that a Laboratory may require
![YR053445-YR053447-6.png](https://www.kalstein.be/wp-content/uploads/2023/08/YR053445-YR053447-6-260x220.png)
Color Light Box YR05520 // YR05523
TILO Color light box render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV)...
![YR053473](https://www.kalstein.be/wp-content/uploads/2023/08/YR053473-200x220.png)
Color Proof Station Light Box With Cupboards and Drawers YR05548 // YR05550
Color Controller Color Viewer color light box is widely applies to printing industry...
![YR053464.png](https://www.kalstein.be/wp-content/uploads/2023/08/YR053464-210x220.png)
Color Proof Station Light Box with Drawers YR05539 // YR05541
This Color Viewer color light box supplies D65, D50,U30 light sources...
![YR053470-600x600](https://www.kalstein.be/wp-content/uploads/2023/08/YR053470-600x600-1-260x220.png)
Color Viewer Light Box with Drawer YR05545 // YR05547
Model YR05545 // YR05547 color viewer light table features with upper and lower light and three drawers...
Our best selling Color Light Box
Model | YR05524 | YR05525 | YR05526 | YR05527 | YR05528 | YR05529 | |
Light source | D65, TL84, UV, F | D65, TL84, UV, F, CWF | D65, TL84, UV, F, CWF, TL83 | D65, TL84, UV, F | D65, TL84, UV, A, CWF, TL83 | D65, TL84, UV, F, CWF, TL83 | |
Dimensions(W*D*H) | 710x405x570 mm | 710x405x570 mm | 710x530x570 mm | 710x405x570 mm | 710x530x570 mm | 1310x600x800 mm | |
Inner Size(W*D*H) | 680x385x
355 mm |
680x385x
355 mm |
680x515x355 mm | 680x385x
355 mm |
680x515x
355 mm |
1280x590x
590 mm |
|
Voltage | 220V | 220V | 220V | 220V | 220V | 220V | |
Weight | 28 kg | 30 kg | 35 kg | 28 kg | 35 kg | 60kg | |
Light sources Configuration: | D65 | 2 PCS | 2 PCS | 2 PCS | 2 pcs | 2 pcs | 2 PCS |
TL84 | 2 PCS | 2 PCS | 2 PCS | 2 pcs | 1 pcs | 2 PCS | |
F | 4 PCS | 4 PCS | 4 PCS | 4 pcs | 4 pcs | 6 PCS | |
UV | 1 PCS | 1 PCS | 1 PCS | 1 pcs | 1 pcs | 1 PCS | |
CWF | NO | 2 PCS | 2 PCS | NO | 1 pcs | 2 PCS | |
TL83 | NO | NO | 2 PCS | NO | NO | 2 PCS | |
Light sources Specification | |||||||
Light Source | Color Light Box Application | Color temperature(k) | |||||
D65 | International standard
Artificial Daylight |
6500 | |||||
TL84 | Applied to stores in Europe,
Japan and China |
4000 | |||||
CWF | (Cool White Fluorescent)
American Standard |
4150 | |||||
F | “Sun-setting Light Yellow”
incandescent light source(imitation of sunset) |
2700 | |||||
UV | Viewing under ultraviolet light to
detect and evaluate optical brighteners or fluorescent pigments |
Wavelength:365nm | |||||
TL83 | Applied to stores in
Europe |
3000 |
![YR053449-YR053451.png](https://www.kalstein.be/wp-content/uploads/2023/08/YR053449-YR053451-350x300.png)
Catalog of Color Light Box models on offer
-
Color Proof Station Light Box With Cupboards and Drawers YR05548 // YR05550
Select options This product has multiple variants. The options may be chosen on the product page -
Color Proof Station Color Viewer Light Box YR05542 // YR05544
Select options This product has multiple variants. The options may be chosen on the product page -
Standard Color Light Box YR05530
Select options This product has multiple variants. The options may be chosen on the product page -
Color Light Box YR05520 // YR05523
Select options This product has multiple variants. The options may be chosen on the product page -
Color Light Box YR05524 // YR05529
Select options This product has multiple variants. The options may be chosen on the product page -
Color Viewer Light Box with Drawer YR05545 // YR05547
Select options This product has multiple variants. The options may be chosen on the product page -
Color Proof Station Light Box YR05536 // YR05538
Select options This product has multiple variants. The options may be chosen on the product page -
Standard Color Light Box YR05532
Guidelines for you to become an expert in Color Light Boxes
How to apply Color Evaluation tool to achieve specific results in cosmetics laboratories
Color evaluation tools are specialized machinery designed to accurately measure the color of cosmetic products in laboratories. This modern technology provides a full spectrum of data...
What potential do Color Evaluation Boxes offer to industrial Laboratories?
Color assessment boxes (or ACS) are one of the most useful tools for industry. These boxes allow laboratories to make precise measurements of the color of an object, allowing users to control...

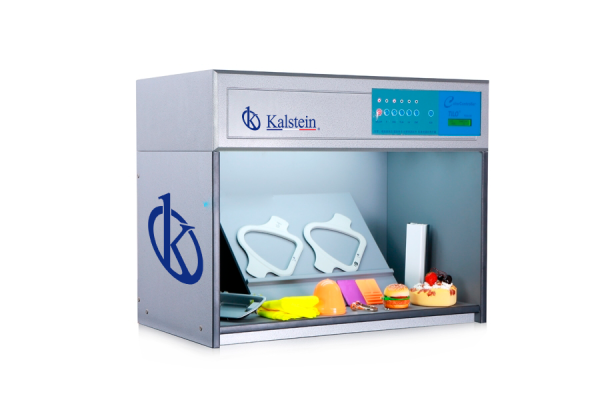

Objective color assessment for medical laboratories with Color Evaluation Box
Objective color assessment is an important issue for medical laboratories. The color of laboratory test results affects the accuracy and meaning of the results. Medical laboratories have found...
Functions of Color Evaluation Boxes in the Textile Sector
Color evaluation boxes are LED lighting units, manufactured to check color consistency and quality. It is also used to visualize quality in textile tests, where there is a need from different sources of radiant energy. In this way it can be evaluated by comparing the color...
![15x16,03 cm (1)](https://kalstein.com.mx/wp-content/uploads/2023/02/15x1603-cm-1-1.png)
Frequently Asked Questions from our customers about Color Light Box
How to know the prices of the Color Light Box?
To know the price of the Color Light Box we invite you to send us an email with your request using the contact form.
What are the delivery times of the Color Light Box?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to purchase Color Light Box?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
