This equipment guarantees the preparation of the samples for elemental analysis in analytical chemistry, performs a procedure where electromagnetic radiation is produced with a frequency of 2450 MHz; this makes it warm, where radiation penetrates into glass, ceramic and plastic materials, while metals reflect this wavelength. In the case of samples that go together with the reagents used for mineralization,
they are placed in a reaction chamber that is pressurized with inert gas, nitrogen, and to which microwave energy is applied; this unique reaction chamber improves the digestion processes, allows the complete digestion of samples of any nature, even the most complex as refractory inorganic materials.
Special Designed Sample Digestion Vessel The automatic vent and self-resealing structure which won national patent ensures...

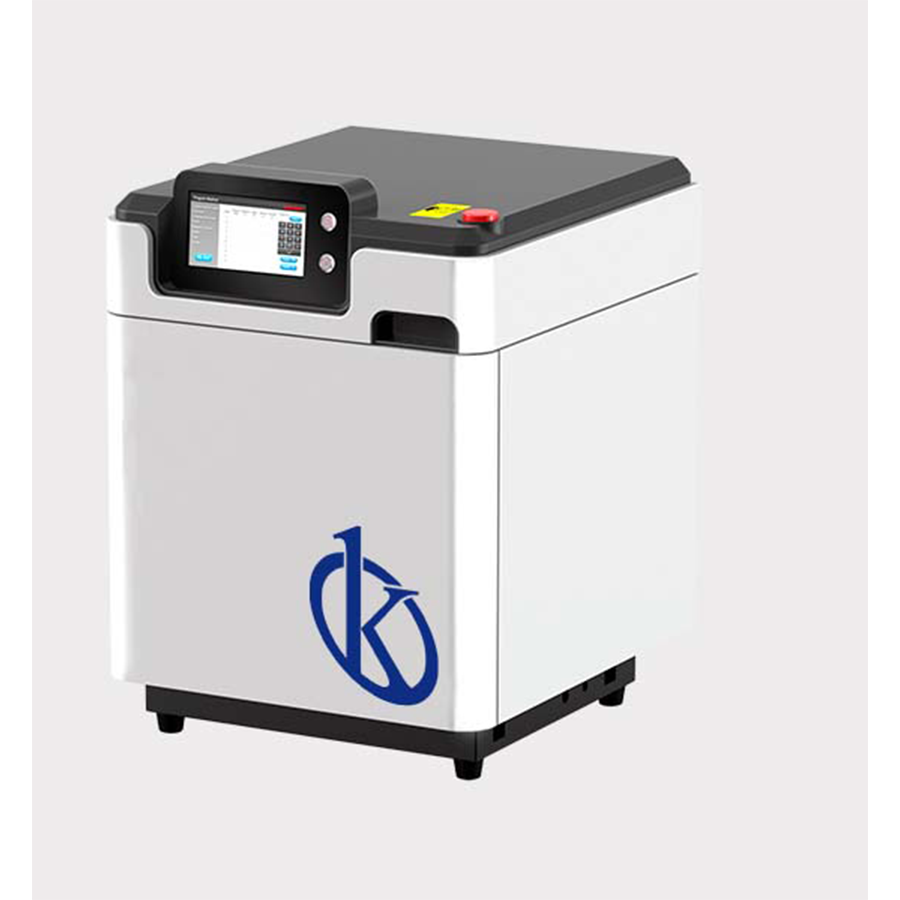

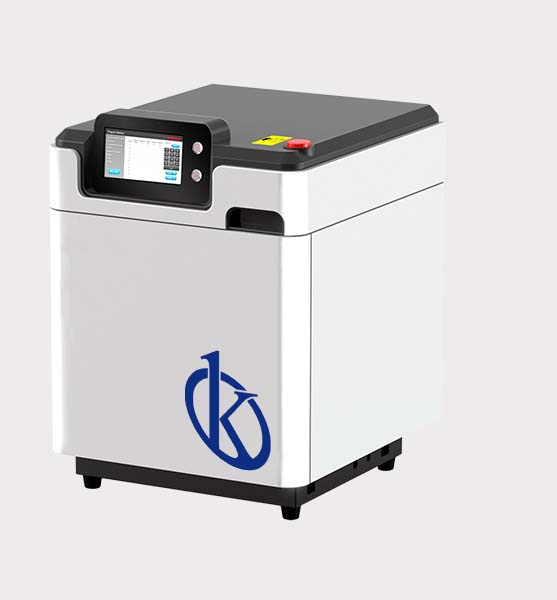

YR04953 // YR04956 series is a new designed microwave digestion system. Different from the previous model series ...
Special Designed Sample Digestion Vessel. The automatic vent and self-resealing structure which won national patent ensures...
| Model | YR04953 | YR04954 | YR04955 | YR04956 |
| Vessel Quantity | 6 | 8 | 10 | 12 |
| Temperature Monitoring System | Contactless IR Sensor Temperature Monitoring | |||
| Each Vessel Temperature Controlled | ||||
| Temperature Controlling Range: 50~400℃ | ||||
| Temperature Accuracy: ±0.1℃ | ||||
| Display Accuracy: ±0.1℃ | ||||
| Pressure Monitoring System | Contactless Sensor Pressure monitoring | |||
| Each Vessels Pressure Controlled | ||||
| Pressure Controlling Range: 0~15MPa | ||||
| Pressure Accuracy: ±0.01MPa | ||||
| Display Accuracy: ±0.01Mpa | ||||
| Vessel Volume | 100mL | |||
| Sample Vessel | Imported TFM | |||
| Material | ||||
| Rotation | One Direction 360° continuous rotating | |||
| Microwave Tank | 316L stainless steel tank with corrosion-proof coating | |||
| Microwave Power | 0-1000W (Adjustable) | |||
| Microwave Leakage | <5mw/cm2 | |||
| Air Exhaust | High power corrosion-proof air blower | |||
| Power | AC 220V±10%, 10A, 50/60Hz | |||
| Dimension | 490×560×630mm（L×W×H） | |||
| Weight | 47KG | |||
| Display | 7 inch Touch Screen | |||
| Protection Vessel Material | Peek+Glass Fiber | |||
The applications of this equipment are wide in different areas, generally used to mineralize solid samples from which information is obtained...
By using the techniques of atomic absorption spectrometry and microwave digesters, they comply with traditional methods...
This equipment guarantees the preparation of samples for elemental analysis in analytical chemistry, performs a procedure...
The use of this equipment for different scientific processes is proven thanks to the scientific researchers in the areas of chemistry and engineering, where the use of microwaves for NTK analysis and oxygen demand is validated, due to the effective system of temperature...
To know the price of Microwave Digester we invite you to send us an email with your request through the contact form.
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
