Electrosurgical Unit
This medical instrument is currently considered an essential device in operating rooms, and the importance of an electrosurgical unit is that with its use precise incisions are obtained without the need to exert pressure on the tissues, as well as easy access to difficult or difficult areas. compromised, allows excellent comfort in the lifting of hypertrophic tissues, helps in the containment of hemorrhages and the healing of gingival tissues with correct use, and also prevents the infiltration of microorganisms in the incision line.
Advantages of using an electrosurgery
- The electrosurgery considerably reduces tissue bleeding, thereby avoiding the use of gauze, which has been associated with surgical site infections.
- Facilitates adequate asepsis, reducing the probability of transmission of infections from diseased to healthy tissues.
Types of Electrosurgical Unit that the Medical Sector may need

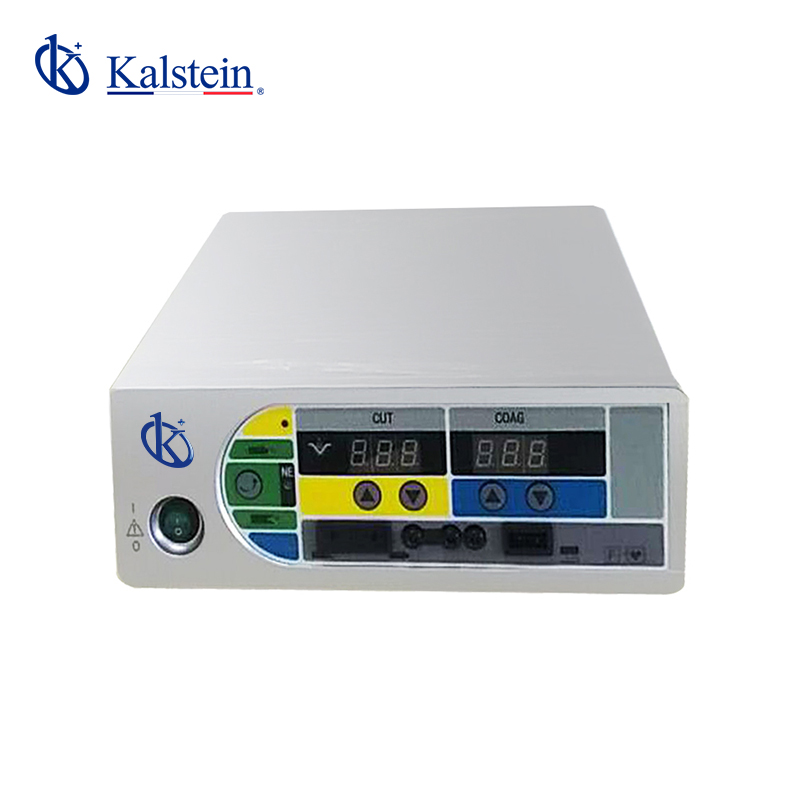

Electrosurgical Generators YR02144
Electrosurgical generator combines versatility and safety, for all general electrosurgical procedures such as...

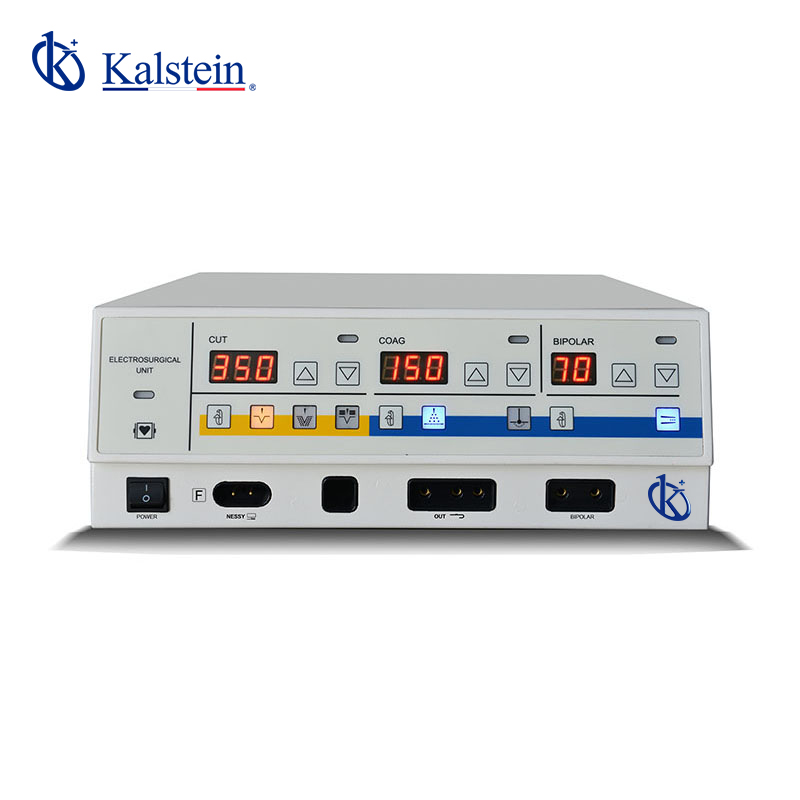

Electrosurgical Generators YR02145
YR electrosurgical series generator is a versatile electrosurgical unit for all around surgical procedures...

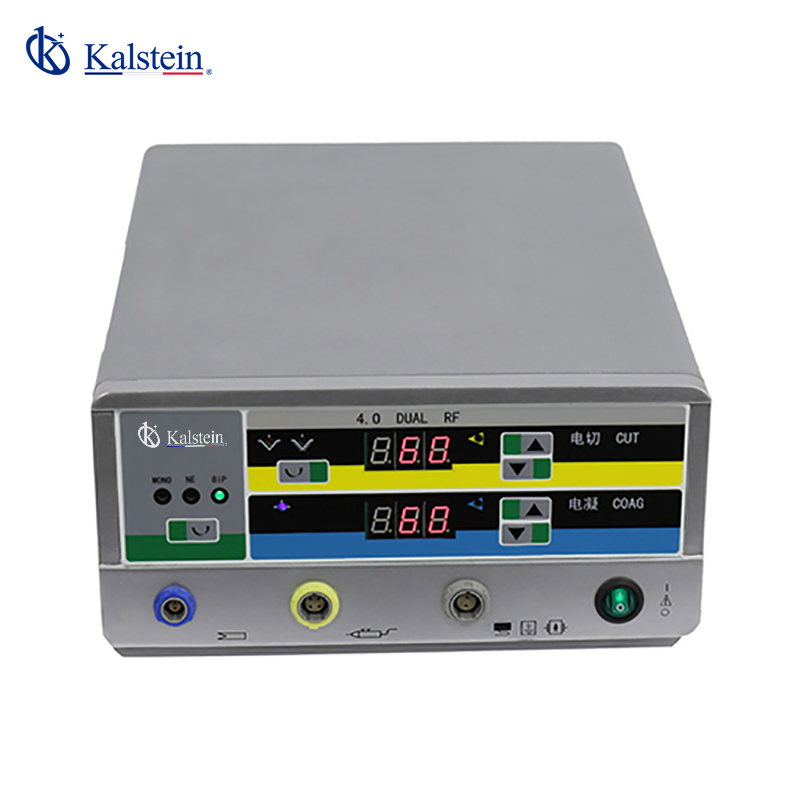

Electrosurgical Generators YR02147
YR electrosurgical generator series is a reliable electrosurgical unit for loop electrosurgical excision procedure...
Our Best Selling Electrosurgical Unit
YR electrosurgical generator series is a reliable electrosurgical unit for loop electrosurgical excision procedure (LEEP) in gynecology. With up to 150 watts maximum isolated output, automatic current monitoring and compensation functions, it can perform high precision cutting and coagulation with lower thermal damage risk.
- The electrosurgical generator has four cutting and two coagulation output.
- It provides automatic return electrode recognition function.
- The electrosurgical generator offers digital diagnostic error codes..
Model | YR02147 |
Main unit | |
Base output frequency | 512 KHz |
Pure / mixed cutting power | 0 ~ 150W |
Pure cute waveform | Continuous sine wave, max. Open voltage at 1700 V |
Cut Waveform Mix 1 | Sine Waveform 68% Duty Cycle, Max. open voltage at 1700V |
Cut Waveform Mix 2 | 56% duty cycle sine waveform, max open voltage at 1600V |
Cut Waveform Mix 3 | 32% Duty Cycle Sine Waveform, Max. open voltage at 2000 V |
Clotting power | 0 ~ 100W |
Gentle clotting power | 16% duty cycle, max. open voltage at 3300V |
Spot coagulation waveform | 16% duty cycle, maximum opening voltage at 4600V |
Power supply | 220 V / 50 Hz, rated current at 3.15 A |
Current leakage | <150 Ma |
Safety standard | EN 60601-1 and 60601-2-2 |
Smoke extractor | |
Volume | 30 ~ 100L / min, 8 degrees adjustable |
Internal filter efficiency | > 99.999% |
External filter efficiency | > 99.97% with carbon filter for odor removal |
Start mode | With optional pedal or control |
Power supply | 220 V / 50 Hz, rated current at 3.15 A |
Analysis of the best Electrosurgical Unit for the Medical Sector
What is an electrocautery plate?
An electrocautery plate is a very important medical device when working with electrosurgery. This plate ...
Care when using an electrosurgical unit
The electrosurgical unit is a medical equipment capable of transforming electrical energy into heat to cut...
What is the pharadic effect?
The pharadic effect consists of neuromuscular stimulation when frequencies are applied below 100,000 Hz, which can generate an electric...
Maintenance of an electrosurgical unit
The electrosurgical unit is a medical equipment that uses heat-generating electrical phenomena; to achieve...
Guides to becoming an expert in Electrosurgical Unit
Electrosurgical unit for Hospitals and Clinics - Medical Sector
The electrosurgical or electrosurgical unit, also called an electrosurgical unit, is a medical device that uses...
Electrosurgical unit (Electroscalpel): What is its importance in an operating room
The electrosurgical unit, also known as electrosurgical unit, is a medical equipment that uses electrical phenomena...
What is the importance of an electrosurgery or Electrosurgical unit?
An electrosurgery unit or electrosurgical unit is a medical device that transmits energy in a controlled manner to living...
Electro surgicalunit or Electroscalpel – advantages
The electroscalpel is a device that is present in approximately 80% of surgical processes, through electrical phenomena it is able to coagulate, flare, cut tissues according to established parameters, this instrument ...
Frequently Asked Questions about Electrosurgical Unit
How to know the prices of the Electrosurgical Unit?
To know the price of the Electrosurgical Unit we invite you to send us an email with your request through the contact form.
What are the delivery times of the Electrosurgical Unit?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of the Electrosurgical Unit?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
