Muffle
The muffle is a laboratory furnace used to perform procedures that need a uniform exposure of high temperatures. They are used to calcinate substances and melt them, among other control processes. They are also used for heat treatment of cleaning and hardening injection molds.
The muffle consists of a closed chamber, made of refractory material. This consists of a door, through which you access the interior of the cooking chamber, where there is located a hole to observe and introduce probes for the verification and recording of the temperature inside the muffle. On the roof side, there is a hole where gases come out of the chamber and the walls are designed with insulating thermal plates.
![YR05284-1.jpg](https://www.kalstein.be/wp-content/uploads/2023/08/YR05284-1-270x310.jpg)
In Kalstein you can find the ideal Muffles for you Laboratory
![YR05284-1.jpg](https://www.kalstein.be/wp-content/uploads/2023/08/YR05284-1-250x250.jpg)
Laboratory Muffle Furnace YR05284-1
High purity fibrous alumina insulation for maximum energy saving 60-80% less power consumption than other old style. Heavy duty double layer structure with cooling fan to keep furnace exteriorssafe to touch...
![YR05272-IMG.jpg](https://www.kalstein.be/wp-content/uploads/2023/08/YR05272-IMG-250x250.jpg)

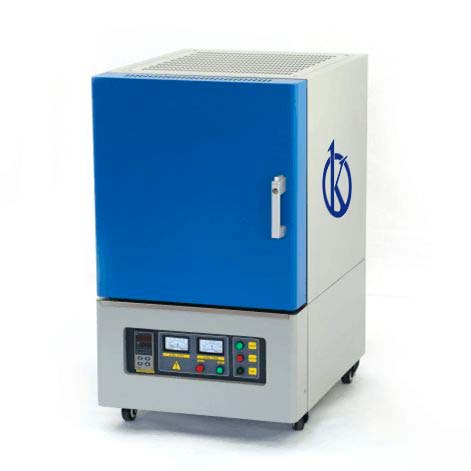

Universal Lab High Temp Box Muffle Furnace YR05272 // YR05284
YR series muffle furnace adopts box type structure, is more convenient to put and take material, and the max. temperature of the furnace can be up to 1700°C. It can be customized according to your needs...
Our Best Selling Muffle
YR muffle furnace uses double carbon steel layer shell and 30 segement PID control. The furnace consists of high purity alumina polycrystalline fiber brick and high quality heating element. This furnace equips with air cooling system, which makes temperature cool and rise quickly. It is an ideal tool for materials annealing and sintering , composition analysis, quality testing, ashing in colleage lab, research institutes, etc..
Standard Features
- 1200°C,1400°C,1700°C maximum operating temperature;
- High purity fibrous alumina insulation for maximum energy saving;
- Double layer steel structure with air cooling fan to keep furnace’s exteriors safe to touch;
- Safty interlock will automatic power off the furnace when door is opened;
- PID automatic control via current limiting phase angle fired the resistor, e.g. SC R(Silicon Controlled Rectifier);
- Power control with 30 segments programmable.
Model | Chamber Size
( Dx Wx H) (cm) |
Capacity | Max. Temp | Continuous Working
Temperature |
Heather | Thermocouple | Working
Voltage |
Max.
Power |
Weight |
YR05272 | 10x10x10 | 1 | 1200 | ≦1100°C | Fe-Cr-Al-Mo Wire | K type | 220-380V | 1-9KW | 70KG
11KG |
YR05273 | 20x15x15 | 4,5 | 93kg | ||||||
YR05274 | 30x20x12 | 7,2 | 84kg | ||||||
YR05275 | 30x20x20 | 12 | 124kg | ||||||
YR05276 | 40x30x30 | 36 | 178kg | ||||||
YR05277 | 10x10x10 | 1 | 1400 | ≦1300°C | SiC heater | S typer | 1-16KW | 61kg | |
YR05278 | 20x15x15 | 4,5 | 94kg | ||||||
YR05279 | 30x20x20 | 12 | 127kg | ||||||
YR05280 | 40x30x30 | 36 | 180kg | ||||||
YR05281 | 10x10x10 | 1 | 1700 | ≦1600°C | MoSi2 heater | B type | 66kg | ||
YR05282 | 20x15x15 | 4,5 | 136kg | ||||||
YR05283 | 30x20x20 | 12 | 190kg | ||||||
YR05284 | 40x30x30 | 36 | 310kg |
![YR05272-IMG](https://www.kalstein.be/wp-content/uploads/2023/08/YR05272-IMG-350x350.jpg)
Catalogue of Muffles models on offer
-
Universal Lab High Temp Box Muffle Furnace YR05272 // YR05284
Select options This product has multiple variants. The options may be chosen on the product page -
Laboratory Muffle Furnace YR05284-1
