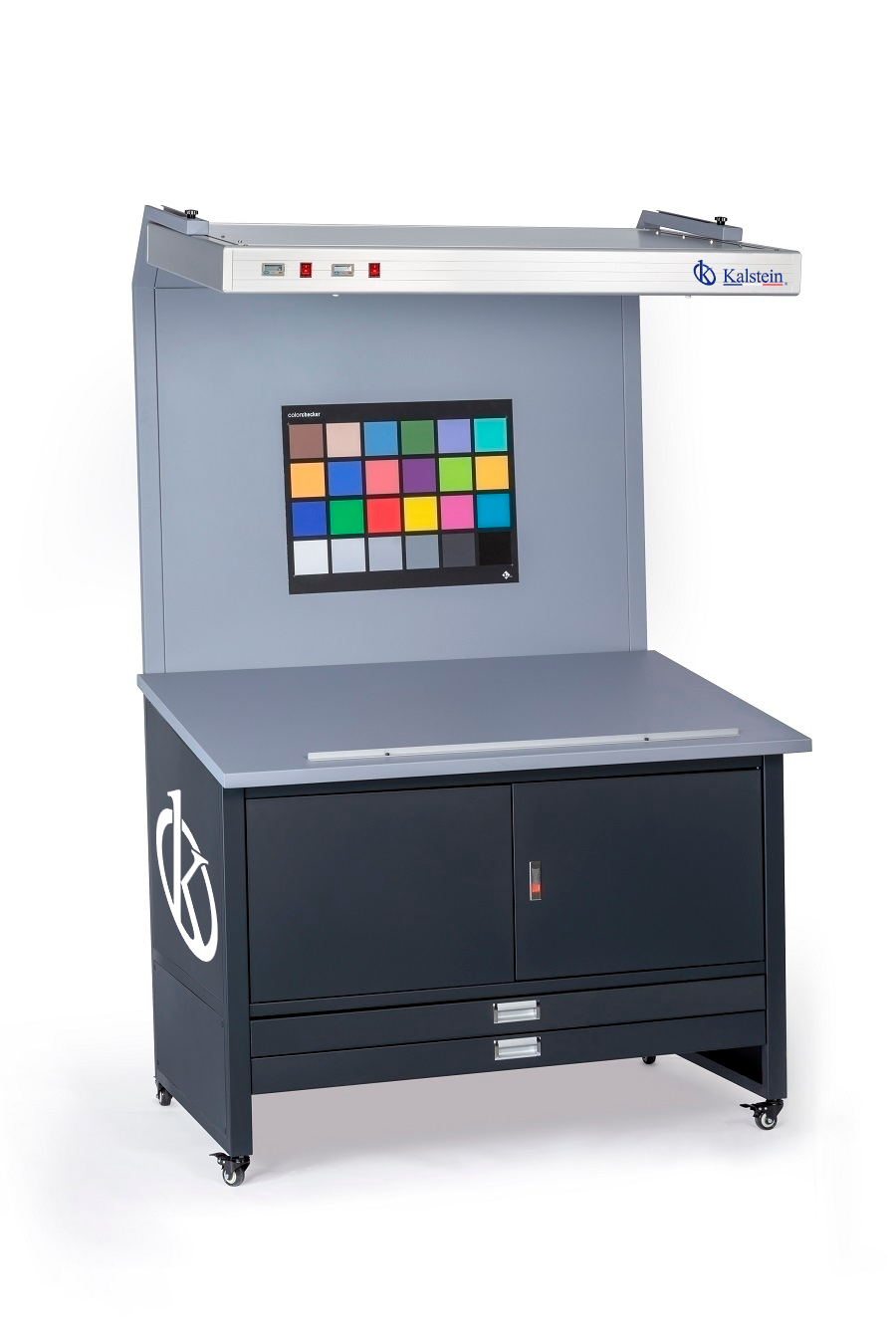

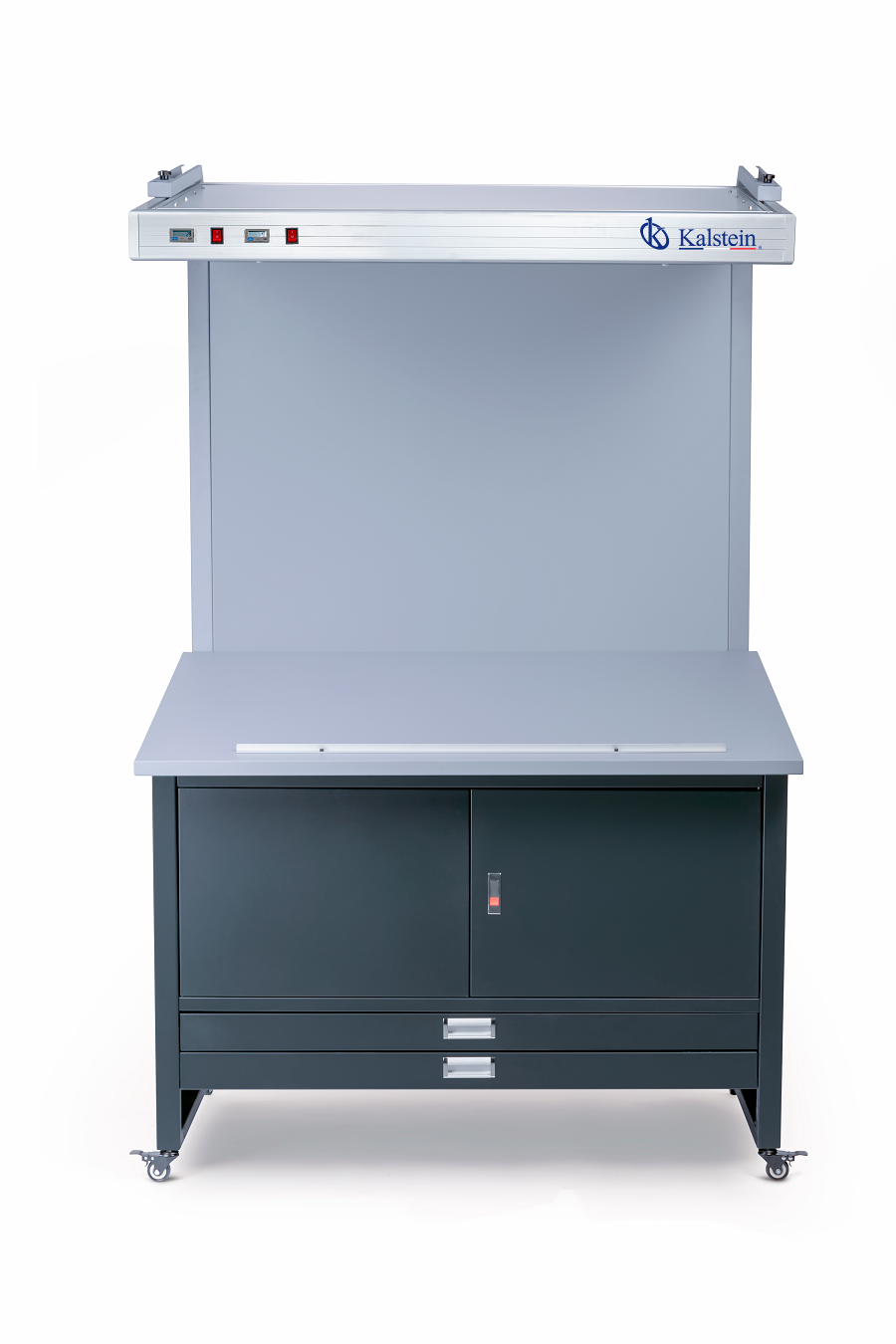

Color Proof Station Light Box With Cupboards and Drawers YR05548 // YR05550

ManufacturerKalstein

Description

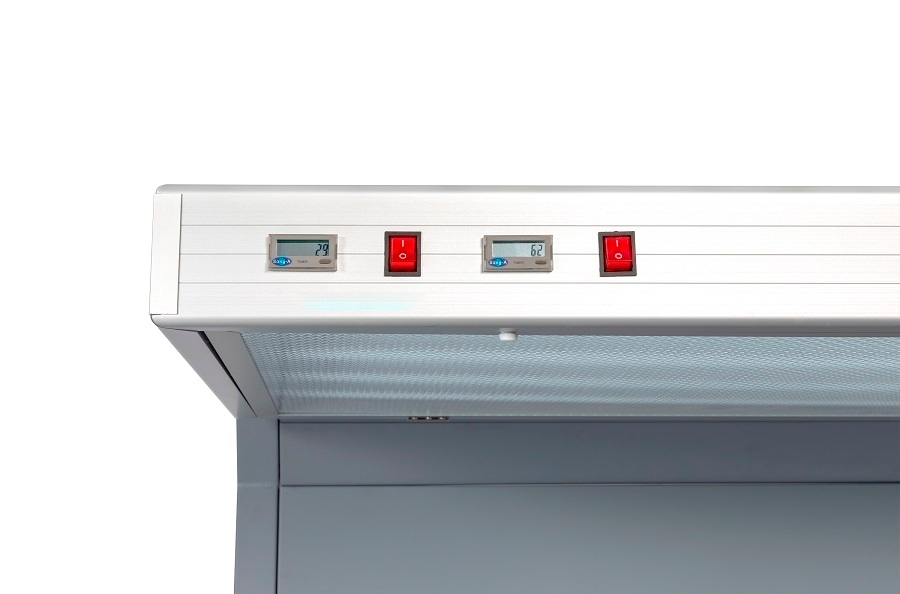

Color Controller Color Viewer color light box is widely applies to printing industry, furnishings and color matching of the printing ink industry etc.. It is a necessity for those industry to control the colors and qualities of products. This Color Viewer color light box supplies D65, D50,U30 light sources. This machine was controlled by microcomputer, which allows the rapid conversion between each light source. The Color Viewer matching box also had the function of display the running time of each light source.

Light source

In different condition, the object may present different spectrum with same color. Our vision result of the colors will be differently, thereby it will affect us to judge the color accurately by our naked eyes. While according to our customer’s demand, the Color Viewer ,which is the international standard, can provide the right light source you need when you check the colors, such as D65,D50,TL84,UV,U30,CWF etc.. The life-span of lamp depends on the accumulated running time and the turn-on times. When the lamp becomes aging, light instability or the two sides turn black, please replace the lamp timely, otherwise, the checking result will be affected.

Technique Parameter

Light source: imported fluorescent lamp

  • 36W D65 *4
  • 36W D50 *4
  • 36W U30 *4
Technical Specifications
Model YR05548 YR05549 YR05550
Light Source D65 D65 & D50 D65 & D50 & U30
Tubes D65   6500K   36W   D65    6500K      36W   D65      6500K     36W
D50    5000K      36W D50      5000K     36W
U30      3000K     36W
Power  AC220V  50HZ   AC220V  50HZ   AC220V  50HZ
Wortable Size (cm)  135*90  135*90  135*90
Size (cm)  135*99*217  135*99*217  135*99*217

Additional information

Weight N/A
Dimensions N/A
Model

YR05548, YR05549, YR05550
