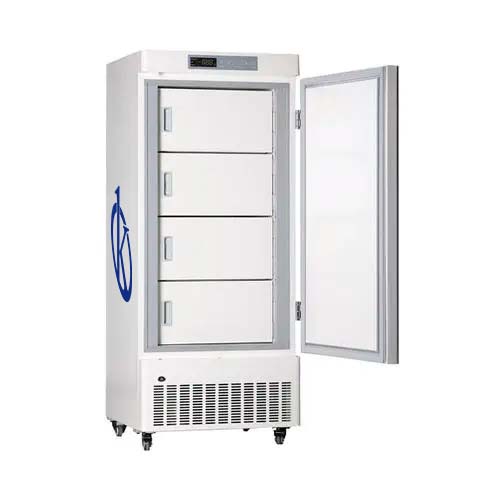

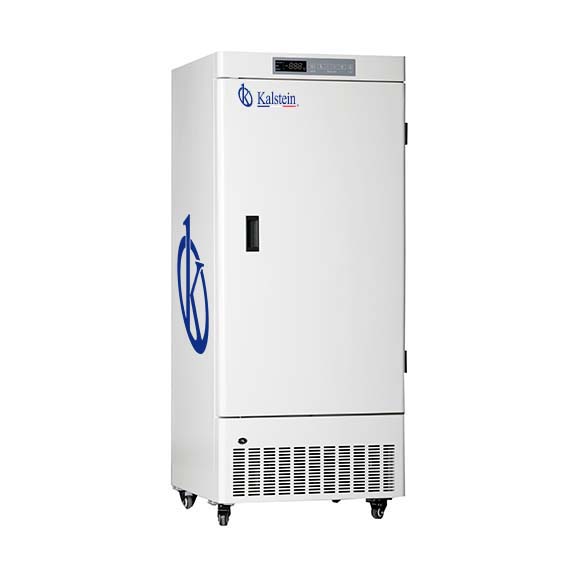

Biomedical Upright Stainless Steel Deep Freezer Adjustable Temperature Range YR05293

Manufacturer: Kalstein

Product Description

Biomedical Freezer
Laboratory Deep Freezer -10℃ To -25℃ multiple alarms used in hospital and laboratory

Key Features
  • Microprocessor control, adjustable temperature range: -10℃ to -25℃
  • LED digital display and increment at 0.1ºC
  • Permanently lubricated cooling fan for safety and longevity .
  • Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance
  • High density CFC-Free urethane foam insulation.
Ergonomic Design
  • USB data logging and temperature recorder (optional).

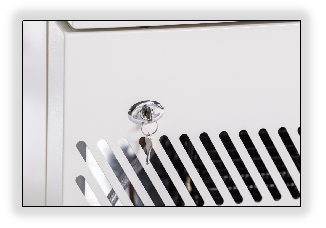

  • Build-in lock with safety and beauty
  • Lockable caster design for customer to move as needed
  • Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
  • Optimized refrigeration system designed to maximize cooling effect and temperature uniformity
  • Microprocessor control, digital display, adjustable temperature range: – 10ºC–25ºC
  • LED digital display for clear observation,
  • Wide voltage tolerance design with applicable voltage range of 187-242V/AC
  • Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
  • Two types of alarm indications: audible buzzing and visual flashing light.
  • Corrosion proof cabinet interior design.
  • Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage.
Technical Specifications
Model YR05293
Temperature Range -10~-25°C
Ambient Temperature +10~+32°C
Controller Microprocessor
Display Digital Display
Refrigeration System
Compressor/Brand 1/CUBIGEL
Refrigerant R290
Cooling Type Direct cooling
Defrost Type Manual
Capacity 268L
Interior Size(W*D*H) 508*455*1137mm
Exterior Size(W*D*H) 690*680*1635mm
Package Size(W*D*H) 760*760*1750mm
N.t./G.t.(approx) 93.5/113.5kg
Loading Qty(20’/40’/40’H) 21/45/45
Electrical Data
Power Supply(V/Hz) 220~240V/50~60;115/60
Rated Power(W) 180
Electrical Current(A) 1.4
Power Consumption 3 kWh/24h
Power failure alarm 8H

Additional Information

Weight 125 kg
Dimensions 75,6 × 75,6 × 178,6 cm
