Color Viewer Light table YR05551

ManufacturerKalstein

Product Description

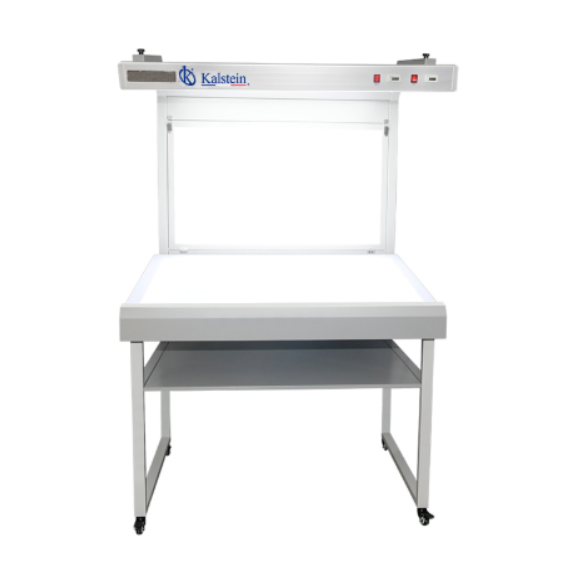

Model YR05551 color viewer light table features with upper and lower and backside light. The standand configuration is uppler light source with D65 & D50&TL84,  lower light source with D65 and backside with D65 and D50.
We offer standard light sources commonly used in the printing industry to meet ISO 3664:2009 standards. YR05551 vertical standard light source color viewer is suitable for the printing workshop or proofing center with high environmental requirements. It can be applied to the printing factory with beautiful appearance, offset printing, flexo printing and gravure printing. It is also directly able to see the reflective manuscript.
YR05551 series vertical sample table is equipped with frequently-used lIght sources in prining industry, can meet the needs of ISO 3684:2009. It is also widely used for color checking in the feld of printing and dyeing, lextiles, plastis, hardware etc, which will provide standard enwironment for qualily checking in the process of sample comparison, production, quality inspection, acceplance ec. That is to say, it can help user improve the product qualty and market compettion.
Features
  • Comply with 1S03664 intemational standard, YR05551 has three light sources.
  • Use with high color-rendering index lamps. and with timer for the using time of larmp on display screen.
  • YR05551 is fine made wilth metal matenal, large size and good work manship, easy to use,
  • Equipped with frequently-used light sources in printing industry. can mee the needs of IS03664:2009.
  • YR05551 is widely used in printing sthop and sampling centers,
  • It also can check rllection file, and be used in the industry of ofset print, flexog raphygravure
Technical Specifications
Model  YR05551
Upper Light Source
Light Source D65 & D50 & TL84
Tubes D65      6500K     36W
D50    5000K      36W
TL84   4000K     36W
Power  AC220V  50HZ
Worktable Size (cm) 135*90
Vertical Size (cm) 135*217
External Size (cm) 135*90*217
Lower Light source
D65
Backside Light Source
D65 & D50

Additional Information

Weight 120 kg
Dimensions 140 × 113 × 58 cm
