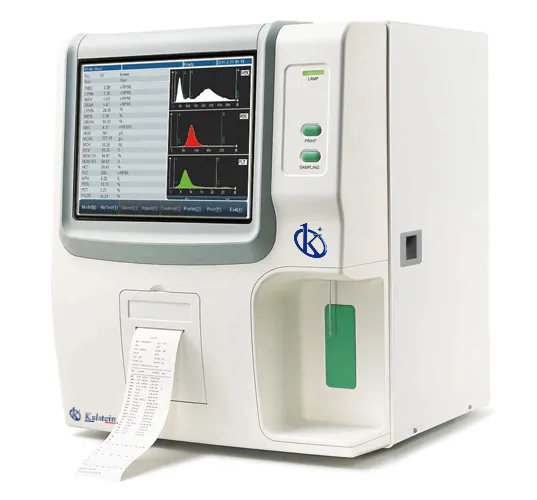

Full-auto Hematology Analyzer YR05120

Manufacturer: Kalstein

Product Description

  • Individual polling channel, 23 parameters (including 3 histograms).
  • Large LCD monitor.
  • 3 counting modes: whole blood, previously diluted blood and peripheral blood.
  • Large memory capacity, multi-format output of test results.
  • Including backwashing, soaking and high voltage burning to remove clogging
    in the reading chamber.
  • 3-door opening design for easy maintenance.

Technical Specifications

Model: YR05120
Sample Volume: Prediluted:20uL;Whole Blood:9.8uL
Throughput: Up to 30 samples per hour
Display: 8.0″TFT color LCD with mouse operation
Alarms: Error messages
Input/Output: RS-232,USB,LAN,keyboard and mouse interface
Printout: “Thermal recorder,55mm width paper, various
Operating Environment: Temperature:15℃-35℃;Humidity:≤80%
Power Requirement: a.c.100-240V,50-60±1Hz
Dimension: L×W×H(mm): 468×325×395
Weight: 16.5Kg

Additional Information

Weight 22 kg
Dimensions 52 × 48 × 61 cm
