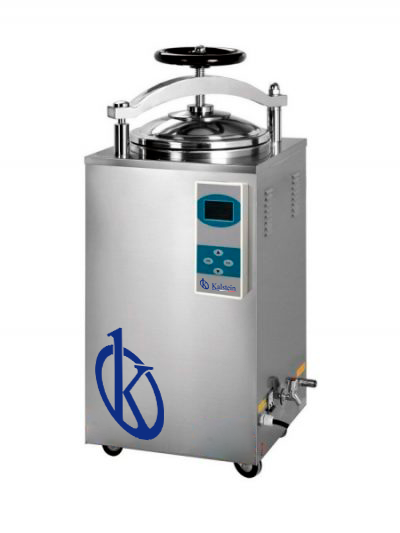

LCD Display Hand Wheel Vertical Steam Autoclave YR05665 // YR05668


Product Description

  • Fully stainless steel SS304 materials.
  • Hand wheel type of quick-open door structure.
  • Door safety interlock device.
  • Microprocessor control, LCD display of working status: pressure, time, temperature, water level, error code, touch type key.
  • Auto discharge the cool air, and steam discharging automatically after sterilizing.
  • Self-inflating type seal.
  • Automatically shut off with beep reminding after sterilization.
  • Standard PT/TT test interface is provided for convenient testing.
  • With two stainless steel baskets.
  • With draining output tap and moving wheels.
Safety Protection Device
  • Safe protection of water lacking.
  • The program will be stopped if water level lower than the low limit.
  • The buzzer alarms when a cycle of operation is completed.
  • Over temperature & over pressure auto-protection.
  • Over current protector.
  • Door safety interlock device.
  • Safety valve of auto release against over-pressure.
Technical Specifications
Model YR05665 YR05666 YR05667 YR05668
Max. working pressure 0.23Mpa
Design temperature 136℃
Working pressure 0.22Mpa
Working temperature 134℃
Working temperature range 105 – 134℃
Sterilization time 0 – 99 min or 0-99 hour 59 min
Accuracy of temperature display 0.1℃
Heat average ≤±1℃
Type Vertical Steam Autoclave
Control Microprocessor
Display LCD display
Sterilization program 4 cycles (Liquid, Instrument, Textile, User-defined)
Steam generator Stainless steel 304
Material  Fully stainless steel 304
Loading 2 pcs stainless steel baskets
Language English
Voltage 110-220V. 50/60Hz
Optional Drying function, Printer
Chamber Size(mm) 35L / Ø318×450 50L / Ø340×550 75L / Ø400×600 100L / Ø440×650
Outer Size(mm) 470×450×1020 520×490×1150 550×530×1180 580×560×1290
Packing Size(mm) 540×540×1140 580×580×1250 610×610×1280 640×640×1360
G.W. / N.W. 81/63 kg 94/74 kg 113/93 kg 125/105 kg
Power 2.5 KW 2.5 KW 4.5 KW 4.5 KW

Additional Information

Weight N/A
Dimensions N/A

YR05665, YR05666, YR05667, YR05668
