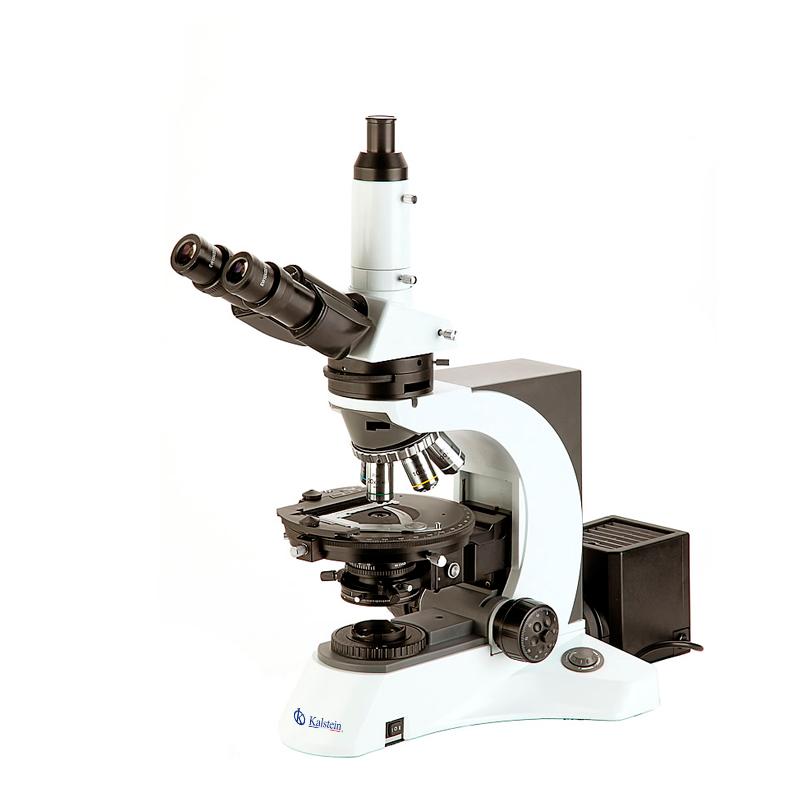

Polarizing Microscope YR0261


Product Description

  • Quintuple Nosepiece Center Adjustable
  • Strain-free Infinity Plan Objectives 4x10x40x100x
  • Round Stage Dia.170mm Center Adjustable
  • Analyizer Unit With Bertrand Lens, 位 Slip, 1/4位 Slip, Quartz Wedge
  • Transmit Halogen 24V100W Brightness Adjustable
Technical Specifications
Model YR0261
Objective Strainfree Infinity Plan Achromatic Objective 20x/0.4/鈭/- W.D. 5.1mm YR0261-op1
Stage Attachable Stage, Moving Range 30*40mm YR0261-op1
Filter Netural Filter ND25 YR0261-op1
Netural Filter ND26 YR0261-op1
Adapter Photo Adapter YR0261-op1
C-Mount 1.0x YR0261-op1
Items YR0261
Optical System Infinity Optical System

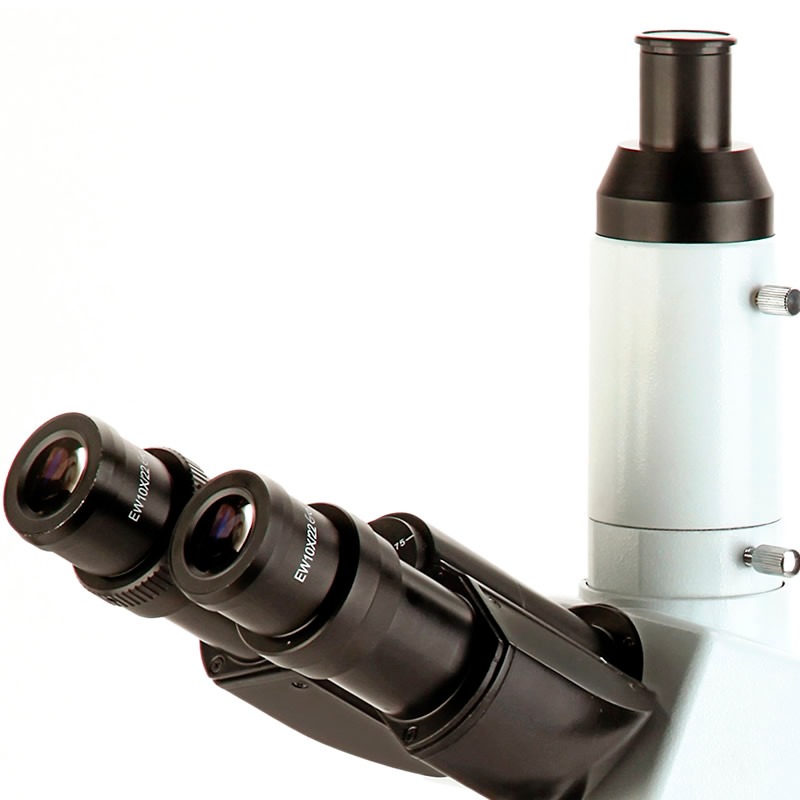

Head Seidentopf Trinocular Head, 30掳 Inclined, Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Plan Eyepiece With Scale of Crosshair
Plan Eyepiece With Cross
Plan Eyepiece With Gridding
Objective Strainfree Infinity Plan Achromatic Objective
4x/0.10/鈭/- W.D.17.3mm
10x/0.25/鈭/0.17 W.D.10mm
40x/0.65/鈭/0.17 W.D.0.54mm
100x/1.25/鈭/0.17 W.D.0.13mm
Nosepiece Backward Quintuple Nosepiece, Center Adjustable
Analyzer 360掳 Dial Rotation Analyzer, Minimum Scale Reading 0.1掳 (Vernial Scale)
Switch Between Orthoscopic And Conoscopic Observation
Bertrand Lens Postion Adjustable
Optical Compensator: 位 Slip (First Class Red), 1/4位 Slip, Quartz Wedge

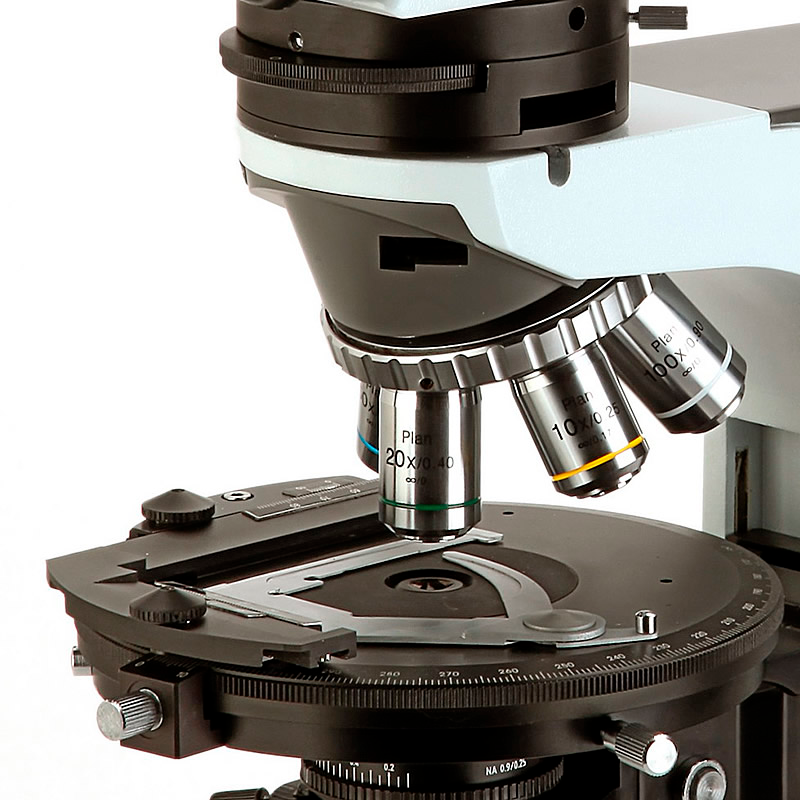

Working Stage Polarizing Rotatable Stage, Dia.170mm, Center Adjustable
360掳 Scale, Minimum Division 1掳
Minimum Reading 6鈥 By Means of Vernial Scale
45掳 Click Stop Knob
Condenser Strainfree Swing Condenser N.A.0.95/0.25

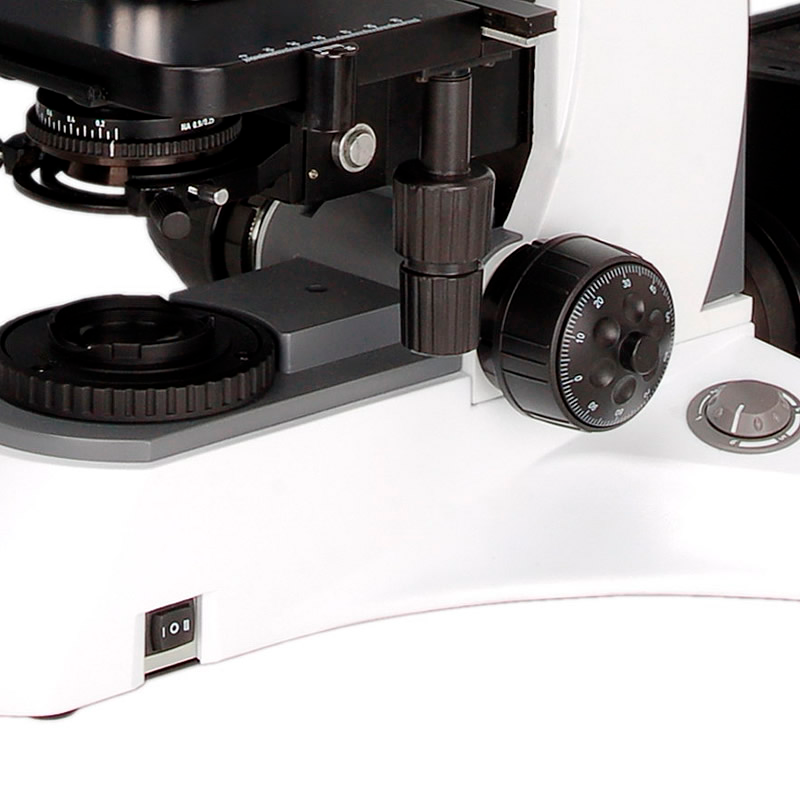

Focusing Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
Polarizer 360掳 Rotatable, 0掳 Position Adjustable
Filter Blue Filter, Dia.45mm
Illumination Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable

Additional Information

Weight 16,5 kg

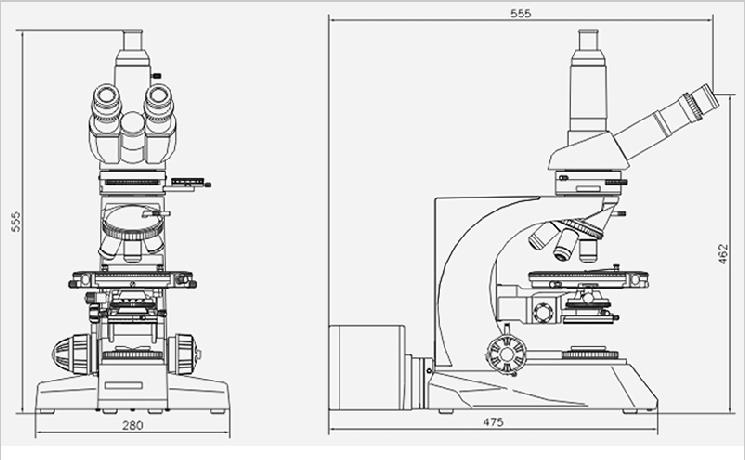

Dimensions 46,3 × 38,4 × 83 cm
