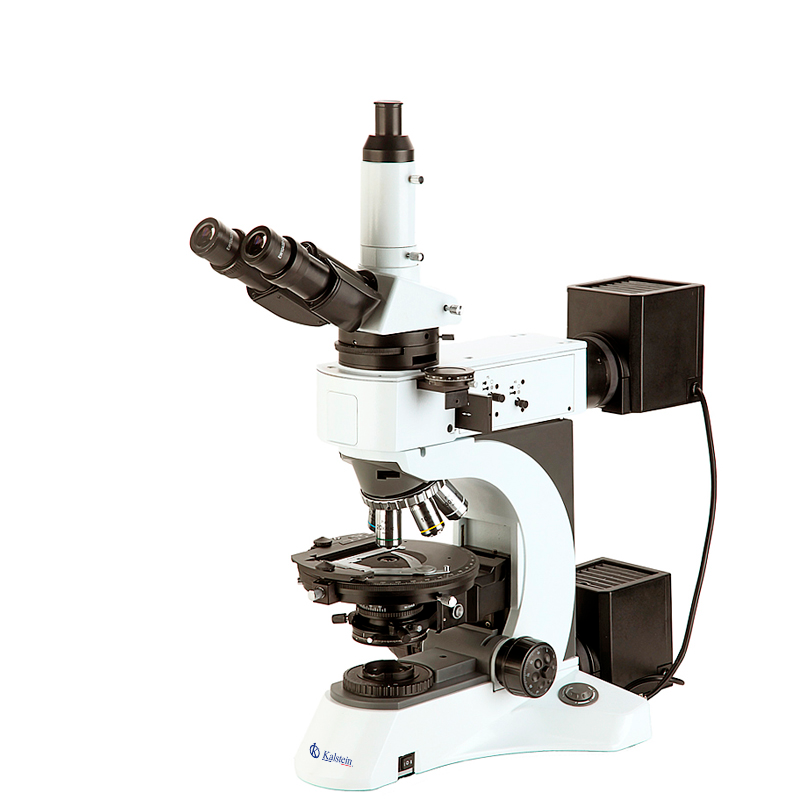

Polarizing Microscope YR0262 – YR0263


Product Description

  • Quintuple Nosepiece Center Adjustable
  • LWD Strain-free Infinity Plan Objectives 5x10x40x100x
  • Round Stage Dia.170mm Center Adjustable
  • Analyizer Unit With Bertrand Lens, 位 Slip, 1/4位 Slip, Quartz Wedge
  • Transmit & Reflect Halogen 24V100W Brightness Adjustable
Technical Specifications
Model YR0262 YR0263
Optical System Infinity Optical System

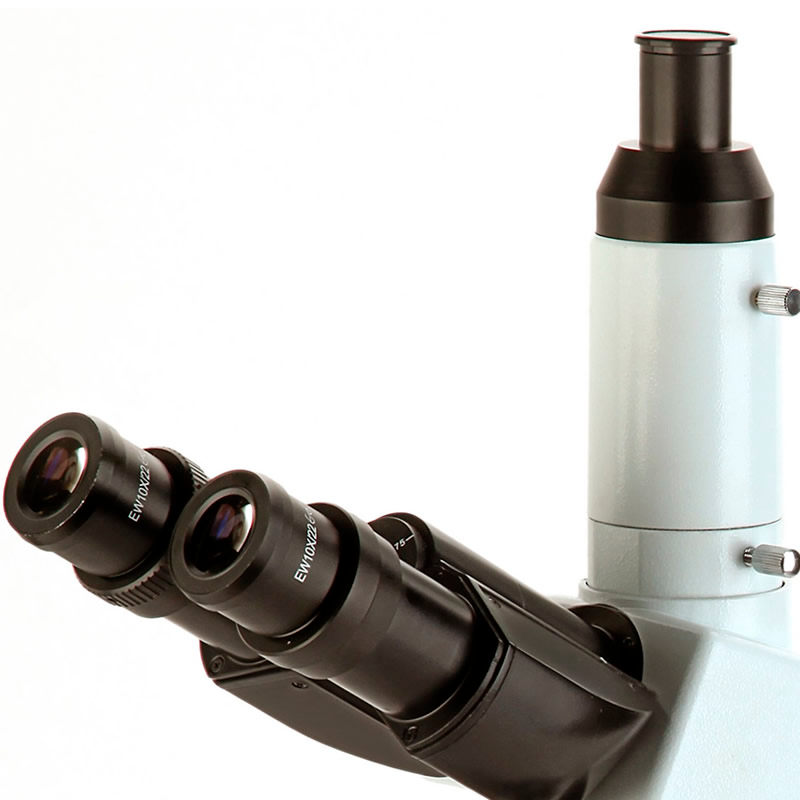

Head Seidentopf Trinocular Head, 30掳 Inclined, Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Plan Eyepiece With Scale of Crosshair
Plan Eyepiece With Cross
Plan Eyepiece With Gridding
Nosepiece Backward聽 Quintuple聽 Nosepiece

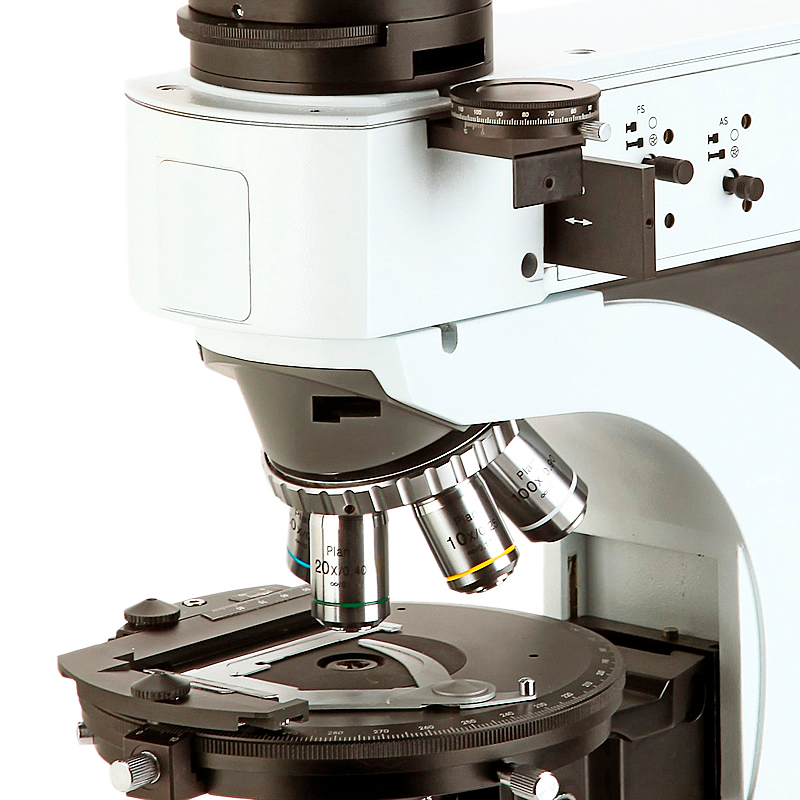

Objective Strainfree LWD Infinity Plan Achromatic Objective 5x/0.12/鈭/- W.D.15.5mm
10x/0.25/鈭/- W.D.10mm
20x/0.4/鈭/0 W.D.4.3mm
50x/0.75/鈭/0 W.D.0.32mm
100x/0.8/鈭/0 W.D.2mm
Strainfree Infinity Plan Achromatic Objective 40x/0.65/鈭/0.17 W.D.0.54mm o
100x/1.25/鈭/0.17 W.D.0.13mm o
Nosepiece Backward Quintuple Nosepiece, Center Adjustable
Analyzer 360掳 Dial Rotation Analyzer, Minimum Scale Reading 0.1掳 (Vernial Scale)
–Switch Between Orthoscopic And Conoscopic Observation
–Bertrand Lens Postion Adjustable
–Optical Compensator: 位 Slip (First Class Red), 1/4位 Slip, Quartz Wedge
Working Stage Polarizing Rotatable Stage, Dia.170mm, Center Adjustable
360掳 Scale, Minimum Division 1掳
Minimum Reading 6′ By Means of Vernial Scale
45掳 Click Stop Knob
Condenser Strainfree Swing Condenser N.A.0.95/0.25

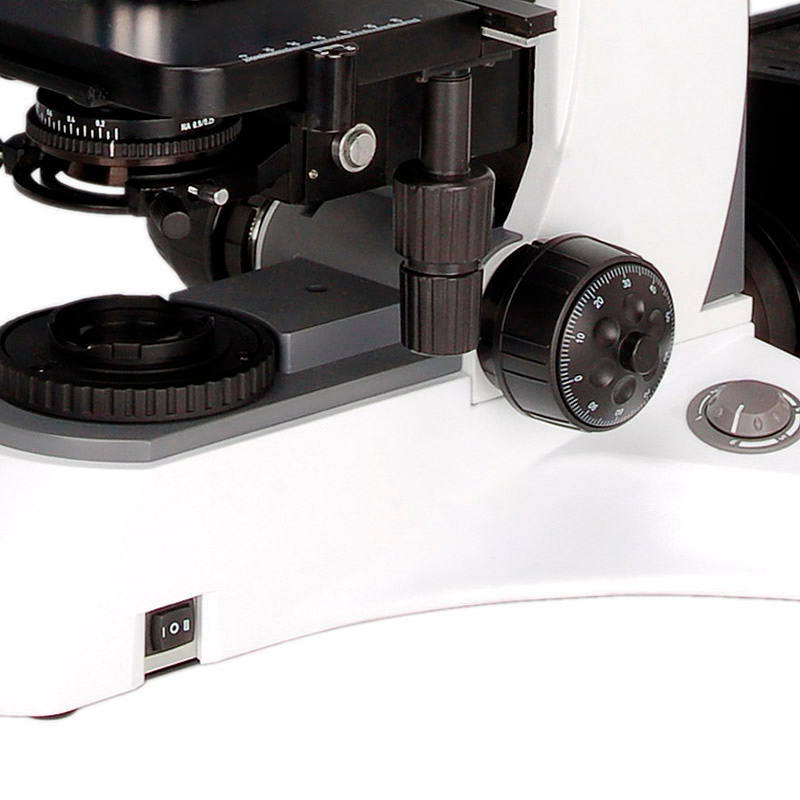

Focusing Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
Polarizer For Reflect: Fixed Polarizer
For Transmit: 360掳 Rotatable Polarizer, 0掳 Position Adjustable o
Illumination Reflect Light Halogen Lamp 24V100W, Brightness Adjustable
Transmit Light Halogen Lamp 24V100W,Brightness Adjustable o
Blue Filter, Dia.45mm
聽Reflect, Reflect & Transmit Polarizing Microscope Optional Accessories
Stage Attachable Stage, Moving Range 30*40mm YR0263-op1
Filter For Netural Filter ND25, Dia.45mm YR0263-op2
Transmit Light: Netural Filter ND6, Dia.45mm YR0263-op3
For Blue Filter, Dia.25mm YR0263-op4
Reflect Light: Netural Filter ND25, Dia.25mm YR0263-op5
Netural Filter ND6, Dia.25mm YR0263-op6
Adapter Photo Adapter YR0263-op7
C-Mount 1.0x YR0263-op8
C-Mount 0.5x YR0263-op9

Additional Information

Weight 16,5 kg

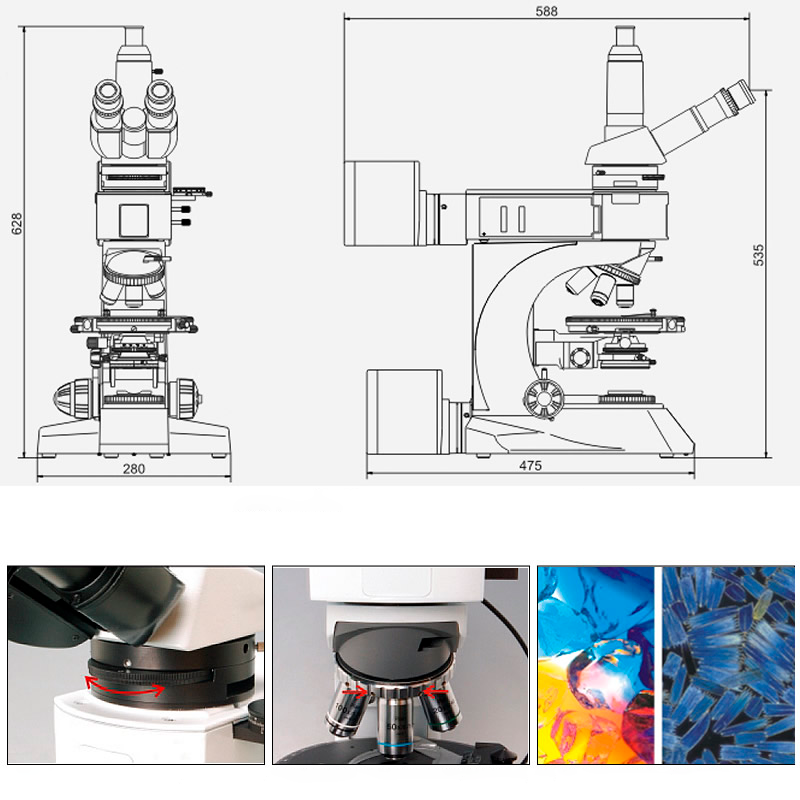

Dimensions 46,3 × 38,4 × 83 cm

YR0262, YR0263
