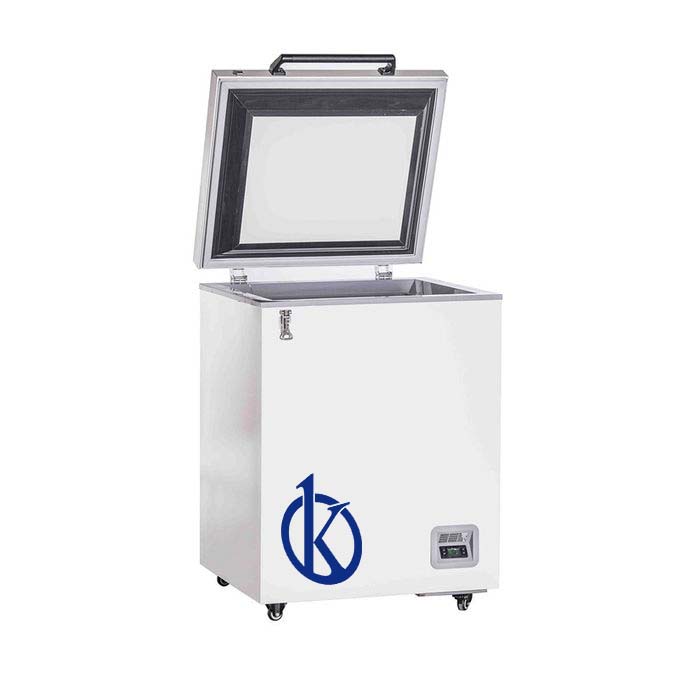

105L Biomedical Chest Freezer Open Top YR05316

Manufacturer: Kalstein


Chest medical freezer top open made of sprayed plate steel used in hospital and laboratory

Promed Deep Freezer are designed to store samples products.
  • Wide temperature range :10โ„ƒ~32โ„ƒambient temperature can reach -10โ„ƒ๏ฝž-25โ„ƒ
  • Accurate Temperature control technology to make the temperature maintain-10โ„ƒ๏ฝž-25โ„ƒand accuracy 0.1 ยฐC.
  • SPCC sprayed steel external material and inner chamber for friendly using and easy cleaning.
  • High-density polyurethane foam(65mm)
  • Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 12 hours without AC power.
  • Visual and audible alarm system:High/low temperature,Sensor error, Thermostat failure alarm,power failure alarm
  • Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
  • Keyboard lock, password protection to avoid set parameter randomly.
  • Wide available voltage range: 198V~242V.
Humanized design
  • 4 casters,2 casters with stopper for easy moving and fixation.
  • 1 Standard test hole(25mm),convenient for temperature monitoring.
  • ISO14001.ISO9001.ISO13485.ISO45001
  • FDA List and CE
  • 1 year free spare parts and remote technical support.

4 visual and audible alarms. 1 Standard test hole(25mm)

Technical Specifications
Model YR05316
Temperature Range -10~-25ยฐC
Ambient Temperature +10~+32ยฐC
Controller Microprocessor
Display Digital Display
Refrigeration System
Compressor/Brand 1/
Refrigerant R290
Cooling Type Direct cooling
Defrost Type Manual
Electrical Data
Power Supply(V/Hz) 220~240V/50~60;115/60
Rated Power(W) 174
Electrical Current(A) 1.48
Power Consumption 1.59 kWh/24h
Capacity 105L
Interior Size(W*D*H) 480*380*665mm
Exterior Size(W*D*H) 615*570*880mm
Package Size(W*D*H) 675*625*1000mm
N.t./G.t.(approx) 41.8/54kg
Loading Qty(20’/40’/40’H) 27/57/57
High/Low Temperature Y
Sensor Error Y
Power Failure Y
Caster 4
Remote alarm port /
Test hole 1/25MM

Additional information

Weight 61 kg
Dimensions 74,5 × 71 × 109,5 cm
