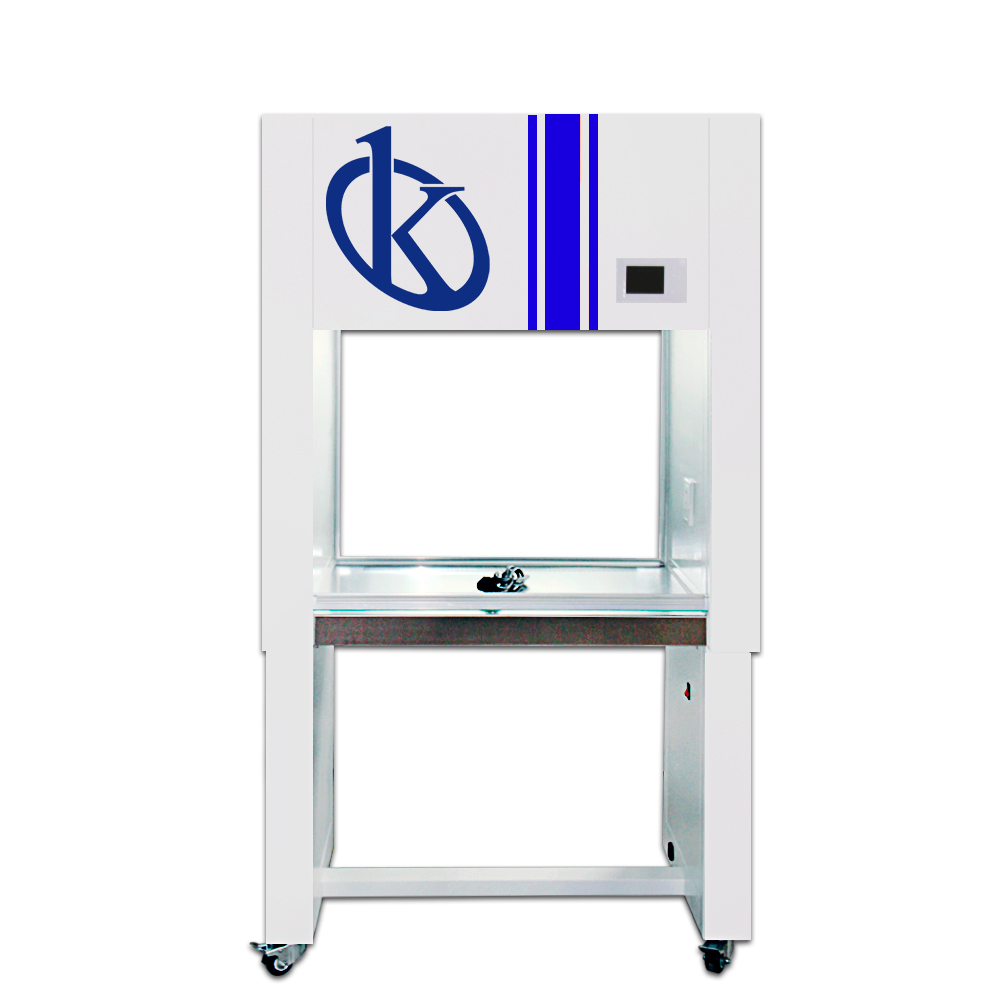

Laminar Flow Cabinet YR05736



  • Adopting arbitrary positioning sliding door system
  • The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
  • The lighting and sterilization systems are interlocked safely.
  • Digital display LCD control interface, more user-friendly design.
  • Equipped with a HEPA filter and a primary filter for preliminary filtration, which con effectively extend the service lite of the high-efficiency filter.

lt is widely used in medicine, pharmacy, biological & chemical experiment, electron, precise apparatus, instrument and so on.


This is a kind of new unidirectional air flow clean bench designed and made with international advanced technology, adopting fan system with air volume adjustable and matched with movable door free to locate. Contact switch adjusts voltage to keep wind speed in working area in ideal state all the time.

Technical Specifications
Model  YR05736
Air supply  Vertical air supply
Cleanliness grade  Class 100 (US Federal 209E)
Number of colonies  ≤5pcs/dish ·hour (<D90mm culture dish)
The average wind speed  0.25~0.45m/s
Noise ≤62dB (A)
Power supply  AC single phase 220V /50Hz
Vibration hall peak  ≤0.5µM (x, y, z direction)
Illumination  ≥300LX
Max. Power consumplion 100 W
Dimension of working area (W*D*H)(mm)  700*550*580
Overall dimension (W*D*H)(mm) 860*590*1600
Specificalion and quanlily

of high efficiency tiller

685*455*50 x 1
Specificalion and quanlity

of fluorescent lamp/UV lamp

12 W x 1 / 20 W x 1
Applicable persons Single person-single side

Additional information

Weight 155 kg
Dimensions 95 × 67 × 168 cm
