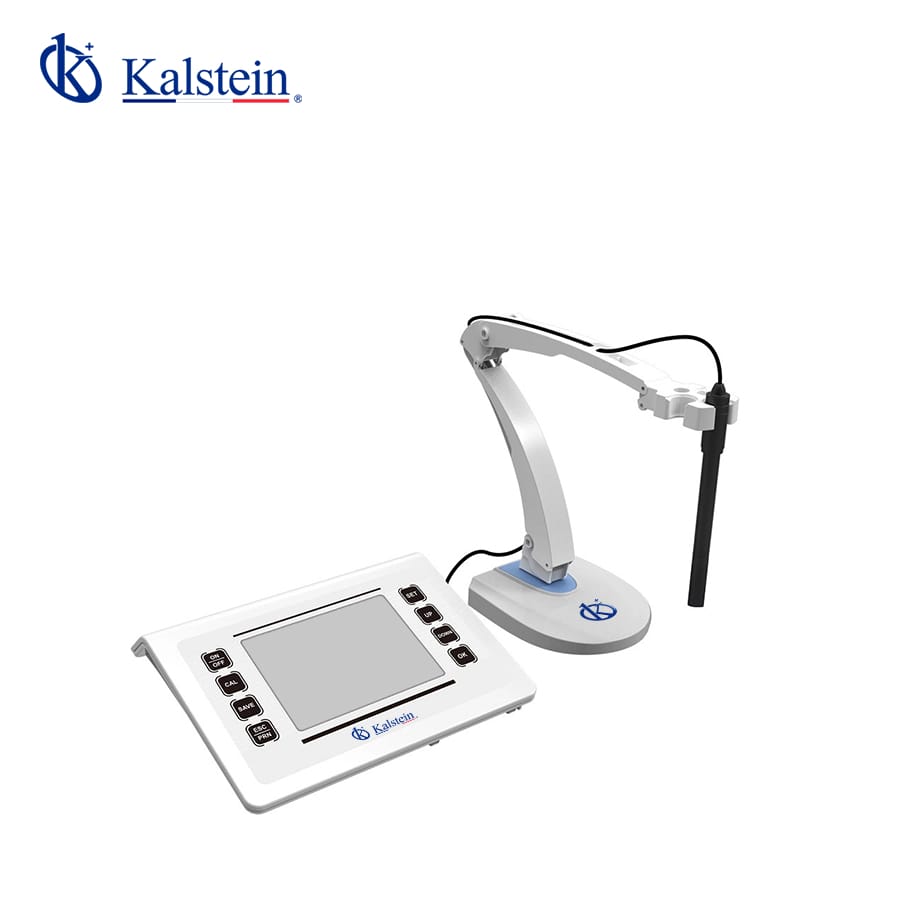

Benchtop Dissolved Oxygen Meter YR01834

Fabricante: Kalstein

Certificacion europea

Product Description

Economical benchtop dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 6 options. The meter is suitable for laboratory applications, accuracy: 0.5mg/L.

Features:

• Economical benchtop dissolved oxygen meter is equipped with a backlit LCD display.

• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.

• Salinity and barometric pressure compensations eliminate the measurement error.

• Automatic temperature compensation ensures accurate readings over the entire range.

• Auto-Read function senses and locks the measurement endpoint.

• Setup menu allows setting the number of calibration points, concentration unit, temperature

unit, auto-power off, etc.

• Reset function automatically resumes all settings back to the factory defaults.

Model YR01834
Dissolved Oxygen
Range 0.0 to 20.0mg/L
Resolution 0.1mg/L
Accuracy ±0.5mg/L
% Saturation of Oxygen
Range 0.0 to 200.0%
Resolution 0.1%
Accuracy ±2.0%
General Specifications
Calibration Points 1 or 2 points
Temperature Compensation 0 to 40°C/32 to104°F, automatic
Pressure Correction 60.0 to 112.5kPa/450 to 850mmHg, manual
Salinity Correction 0.0 to 35.0g/L, manual
Sensor Type DO100 polarographic probe
Connector 6-pin nimi-DIN
Display Custom LCD (120×60mm)
Power DC9V, using AC adapter, 220V/50Hz
Dimensions 210(L)×205(W)×75(H)mm
Weight 1.5kg
Order Code Accessories
YR01834
DO100 dissolved oxygen electrode
DO electrolyte solution
DO membrane cap
DC9V power adapter

Additional Information

Weight 1,7 kg
Dimensions 31 × 26 × 20 cm
