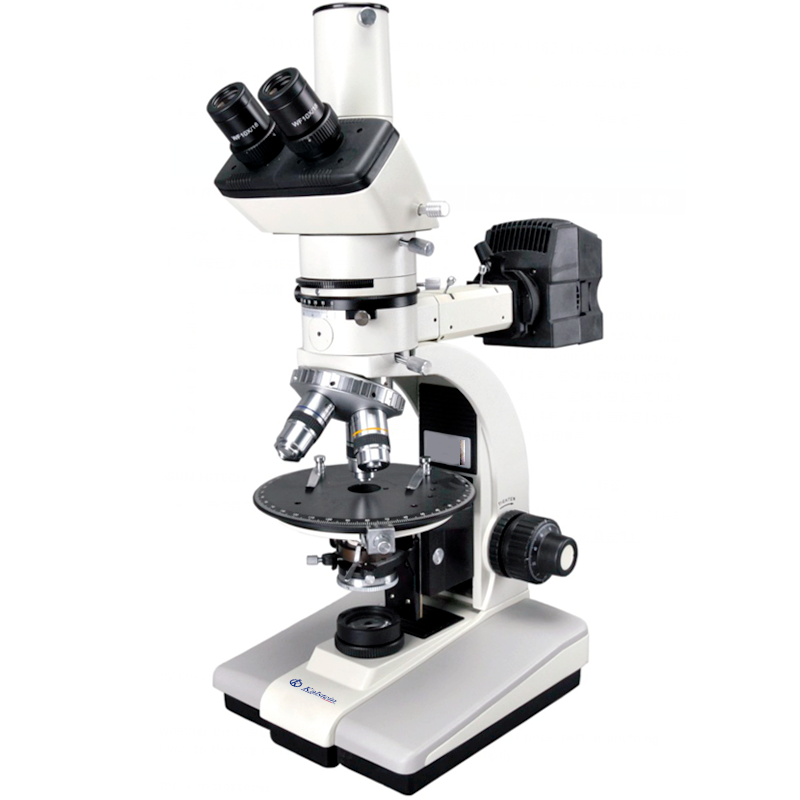

Polarizing Microscope YR0264 – YR0265

Manufacturer: Kalstein

Product Description

  • Polarizing microscope for normal inspection and education.
  • Widely used in crystallography, Geology, Analytical chemistry, Medicine, Biology, Environmentalology, Pharmacy, Toxicology, Asbestos analysis and so on.
  • Single polarization, Othorgonal polarization or conoscopic observation is available.
Technical Specifications
Model YR0264 YR0265
Head Sliding Brinocular Viewing Head, Inclined at 45°
Sliding Trinocular Viewing Head, Inclined at 45°
Eyepiece Eyepiece WF10×/18 with scale of cross hair
Eyepiece WF10×/18 with graticule
WF10x/18
Objective Strain Free Achomatic Objective 4x,10x,25x,40x, 63x
Strain Free Plan Achomatic Objective 25x,40x, 63x
Nosepiece Backward quadruple nosepiece, Center adjustable
Focusing Coaxial coarse & fine adjustment, Range 28mm,Fine division 0.002mm
Stage Revolving Round Stage Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale
Mechanical stage, Moving rang 30X40mm
Condenser NA1.25 Abbe condenser with iris diaphragm & filter
Analyzer Rotatable analyzer with gradation 0°-90°
Polarizer 360° Rotatable
Bertrand Lens Bertrand Lens,sliding in/out of optical path
Optical Compensator λ Slip(First class red), 1/ 4λ Slip, Quartz wedge
Illumination 12V/20W Halogen lamp, Brightness adjustable(Transmitted illumination)
12V/50W Halogen lamp, Brightness adjustable(Reflected illumination)
Micrometer

Additional Information

Weight 15 kg
Dimensions 39 × 28 × 64 cm
Modelo

YR0264 Binocular, YR0265 Trinocular
