Description

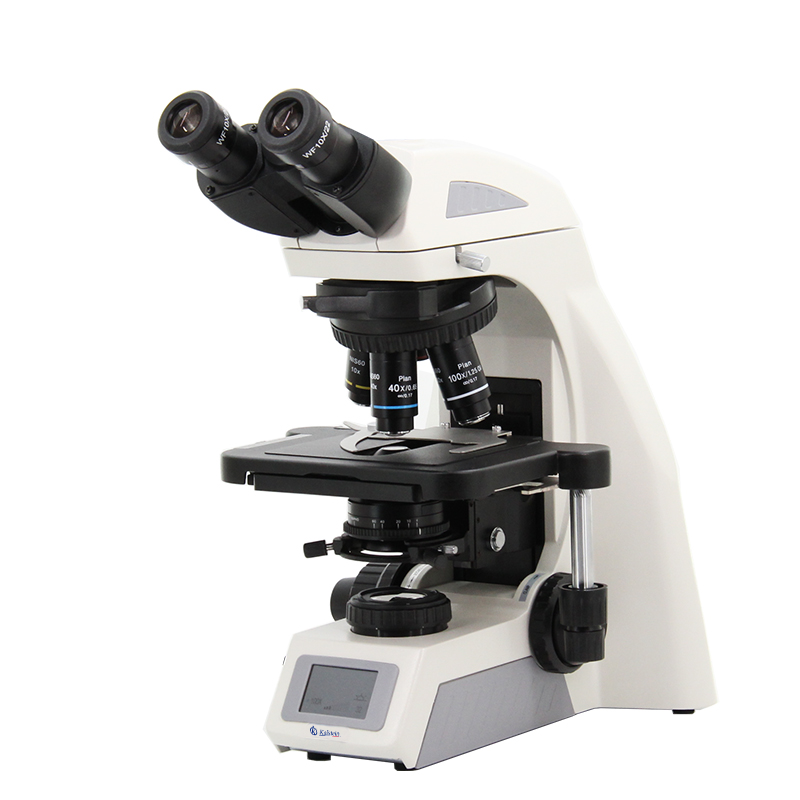

The Laboratory Biological Microscope YR0267A – YR0267B offers an exceptional viewing experience with its NIS Infinity Optical System. Designed for both the amateur enthusiast and professional, it delivers high contrast and very flat images through its Infinity Plan Objectives. The system boasts a wide field eyepiece with a field number of 22, ensuring sharp and clear resolution with a remarkable signal-to-noise ratio. A defining feature is its coded nosepiece, which not only memorizes the illumination settings for each objective but also adjusts light intensity automatically to enhance user comfort and efficiency during prolonged use.
Market Price
The Laboratory Biological Microscope YR0267 series is competitively priced in the market, typically ranging from $2100 to $2900 USD. This positioning reflects its advanced features and capabilities, making it a cost-effective choice for laboratories seeking high-quality microscopy without compromising on functionality.
Frequently Asked Questions

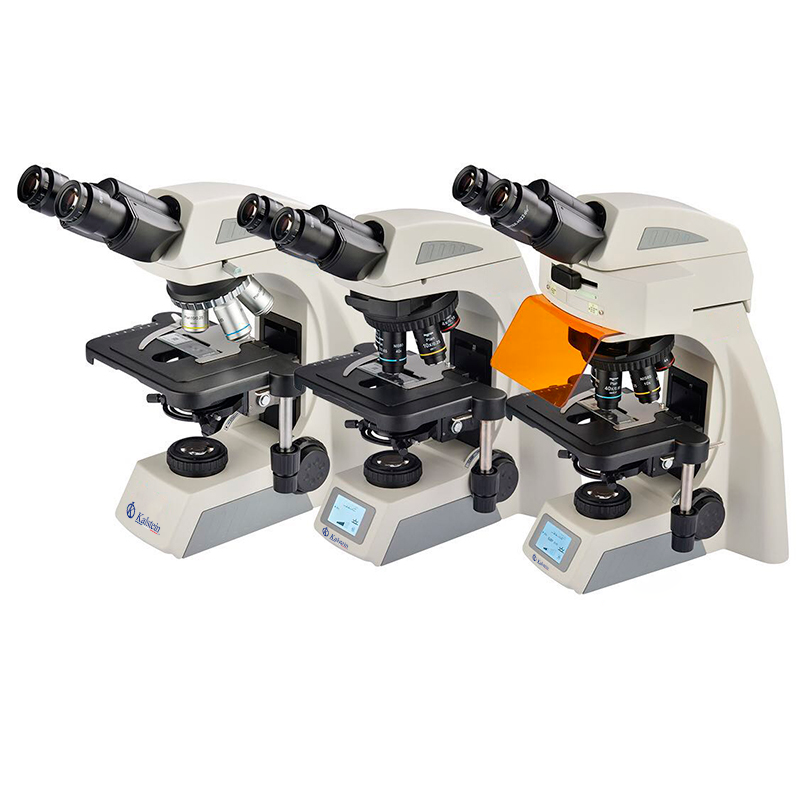

What is the main difference between models YR0267A and YR0267B?
Both models share similar core features; however, YR0267B offers additional trinocular head options suitable for digital applications.
Is the microscope compatible with camera attachments?
Yes, both models are compatible with digital heads and photo adapters, allowing for seamless integration with digital imaging devices.
Advantages and Disadvantages
The primary advantages of the YR0267A – YR0267B microscopes include high image clarity, adjustable illumination, and robust construction. However, the complex setup might be daunting for novice users, and additional accessories can add to the overall cost.
Field Applications
The Laboratory Biological Microscope YR0267 series is utilized in various fields such as biology, medicine, and material science. Its ability to deliver precise and clear imagery makes it indispensable for research labs and educational institutions.
Recommendations
For optimal performance, it is recommended to regularly clean the lenses and maintain the mechanical components. Utilizing the Kalstein Plus platform can help streamline the process of acquiring necessary accessories and replacement parts.
Features
- NIS Infinity Optical System for enhanced clarity
- Coded nosepiece for automatic light adjustment
- Wide variety of observation methods including bright field and phase contrast
- Digital head options available for digital image processing
- USB compatible power supply for flexible usage scenarios
Technical Specifications
| Model | Cata. No. | YR0267A | YR0267B | |
| Optical System | NIS Infinite Optical System | ● | ● | |
| Observation Method | Bright Field | ● | ● | |
| Dark Field | ○ | ○ | ||
| Polarizing | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ||
| Epi-Fluorscence | ○ | ○ | ||
| Head | Seidentopf Binocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op1 | ● | |
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Fixed 50:50 | YR0267B-op2 | ● | ||
| Seidentopf Trinocular Head, Inclined At 30° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm, Light Path Switchable 0:100/100:0 | YR0267B-op3 | ○ | ○ | |
| Tilting Binocular Head, Inclined 5°~35° , Interpupillary Distance 47-78mm, Eyepiece Tube Dia.30mm | YR0267B-op4 | ○ | ○ | |
| Digital Head, Built-in Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time | YR0267B-op5 | ○ | ○ | |
| Upgrade to A31.1062-5.0M | ||||
| Digital Head, Built-in Wireless Digital Camera 5.0M, Support Android, IOS, Windows, Output Image By WIFI In Real Time, App Software, By Scanning QR Code On Microscope, Installing App & Identifying Microscope, You Can View Micro Image On Mobile Phone & Tablet. | YR0267B-op6 | ○ | ○ | |
| Upgrade to A31.1062-5.0W | ||||
| Eyepiece | EW10x/22mm, Diopter Adjustable, Dia.30mm | YR0267B-op7 | ● | ● |
| EW15x/16mm, Diopter Adjustable, Dia.30mm | YR0267B-op8 | ○ | ○ | |
| EW20x/12mm, Diopter Adjustable, Dia.30mm | YR0267B-op9 | ○ | ○ | |
| Nosepiece | Quintuple Nosepiece, Dovetail Interface | YR0267B-op10 | – | – |
| Coded Quintuple Nosepiece, Dovetail Interface | YR0267B-op11 | ● | ● | |
| NIS45 | 4x/0.10, W.D.20.6mm | YR0267B-op12 | – | – |
| Infinity Plan | 10x/0.25, W.D.17.9mm | YR0267B-op13 | – | – |
| Objective | 20x/0.40, W.D.6.40mm | YR0267B-op14 | – | – |
| 40x/0.60, W.D.1.50mm | YR0267B-op15 | – | – | |
| 60x/0.80, W.D.0.30mm | YR0267B-op16 | – | – | |
| 100x/1.25(Oil), W.D.0.16mm | YR0267B-op17 | – | – | |
| 100x/1.10(Water), W.D.0.16mm | YR0267B-op18 | – | – | |
| NIS60 | 4x/0.10, W.D.30.0mm | YR0267B-op19 | ● | ● |
| Infinity Plan | 10x/0.25, W.D.10.2mm | YR0267B-op20 | ● | ● |
| Objective | 20x/0.40, W.D.4.8mm | YR0267B-op21 | ○ | ○ |
| 40x/0.65, W.D.1.5mm | YR0267B-op22 | ● | ● | |
| 60x/0.80, W.D.0.30mm | YR0267B-op23 | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.3mm | YR0267B-op24 | ● | ● | |
| 100x/1.10(Water), W.D.0.2mm | YR0267B-op25 | ○ | ○ | |
| NIS60 | 10x/0.25, W.D.10.2mm | YR0267B-op26 | ○ | ○ |
| Infinity Plan | 20x/0.40, W.D.12.0mm | YR0267B-op27 | ○ | ○ |
| Phase Contrast | 40x/0.65, W.D.0.7mm | YR0267B-op28 | ○ | ○ |
| Objective | 100x/1.25(Oil), W.D.0.2mm | YR0267B-op29 | ○ | ○ |
| Focusing | Coaxial Coarse & Fine Adjustment, Tension Adjustable, Fine Division 0.002mm, Coarse Focusing Range 28mm | ● | ● | |
| Working Stage | Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm | – | – | |
| Double Layer Mechanical Rackless Stage, Size 230x150mm, Moving Range 78x54mm, Anti-Scratch Hard Coating Dural Platform | ● | ● | ||
| Condenser | Inserted Abbe Condenser N.A. 1.25, With Slot For Phase Contrast Slide And Dark Field Slide. | ● | ● | |
| Illumination | 1W S-LED Critical Illumination | – | – | |
| 3W S-LED Kohler Illumination | ● | ● | ||
| Green Filter | ● | ● | ||
| Dark Field | Dark Field Slide | YR0267B-op29 | ○ | ○ |
| Polarizing | Simple Polarizing Set | YR0267B-op30 | ○ | ○ |
| Phase Contrast | Phase Slider For 10x-40x | YR0267B-op31 | ○ | ○ |
| Phase Slider For 100x | YR0267B-op32 | ○ | ○ | |
| Epi-Fluorescence Attachment | 3W LED Epi-Fluorescence Attachment, Fly-Eye Lens Illumination, With 2 Filter Position + Bright Field Position, Switch Quickly, With Attachable UV Shield, | YR0267B-op33 | ○ | ○ |
| B, G Filters | ||||
| Filter U | YR0267B-op34 | ○ | ○ | |
| Filter V | YR0267B-op35 | ○ | ○ | |
| Photo Adapter | 1.0x C-Mount | YR0267B-op36 | ○ | ○ |
| 0.5x C-Mount | YR0267B-op37 | ○ | ○ | |
| Power Supply | AC 100-240V,50/60Hz | ● | ● | |
| USB Charging Port, Support To Use Exeternal Rechargeable Battery Power Bank Like Mobile Phone Out Door Freely | ● | ● | ||
| LCD Screen | LCD Screen On Front Of Body, Display Using State Of Microscope, Including Magnification, Light Intensity, Standby Status, Set Power Off Timer 5 Mins to 8 Hours, And So On. | ● | ● | |
| Dimensions | 220(W)x290(D)x472(H) mm | ● | ● | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | ||||
